| Prod Model: |
L12/84218 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Noise: |
<102dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker Material: |
Metal |
| THD: |
<0.005% |
| Speaker System: |
Passive |
| Application: |
Stage |
| Certification: |
ISO |
| Monitor: |
None |
Product Description

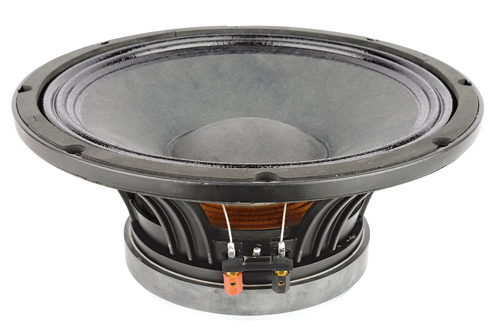

L12/84218-12 inch Pro Audio professional passive pa speaker
1. LF speaker of good price and good quality
2.This LF speaker is of low distortion
3.Hipower Audio is a professinal speaker factory with experience in the speaker field for 12 years. We make our own tranducers ,HF drivers and empty cabinets.
4.details:
| General Specifications |
| Nominal Diameter | 300/12 | mm/inch |
| Rated Impedance | 8 | ohm |
| Nominal Power handling | 350 | Watts |
| Program Power | 700 | Watts |
| Sensitivity(lw/lm) | 97 | dB |

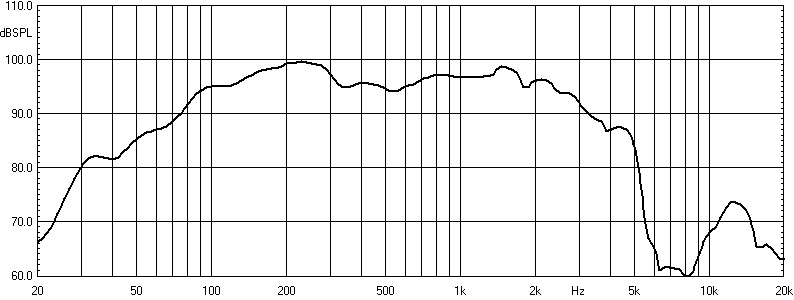

| Frequency Range | 42-3.0k | Hz |
| Minimum Impedance(Zmin) | 7.1 | ohm |
| Voice Coil Diameter | 75/3 | mm/inch |
| Voice Coil Material | Copper | |
| Voice Coil Winding Depth | 17 | mm |
| Number of layers | 2 | |
| Magnet gap depth | 10 | mm |
| Surround Shape | M-roll | |
| Basket | Cast Aluminum | |
| Flux Density | 1.0 | T |
| Magnet Material/Mass | Ceramic | |
| Mounting Information |
| Overall Diameter | 318 | mm |
| Bolt Circle Diameter | 301 | mm |
| Bolt Hole Diameter | 6.5x9 | mm |
| Baffle Cutout Diameter | 287 | mm |
| Overall Depth | 142 | mm |
| Net Weight | 7 | kg |
| Thiele-Small parameters |
| Resonance frequency | Fs | 42 | Hz |
| DC resistance | Re | 5.4 | ohm |
| Mechanical factor | Qms | 16.4 | |
| Electrical factor | Qes | 0.22 | |
| Total factor | Qts | 0.22 | |
| Mechanical compliance | Cms | 0.23 | mm/N |
Mechanical resistance
of suspension losses | Rms | 1.02 | mech-ohm |
| Effective Moving Mass | Mms | 63 | gr |
| Half-space efficiency | Eff | 2.97 | % |
| BL Factor | BL | 20.1 | T.m |
| Equivalent Cas air load | Vas | 91.4 | liters |
| Effective piston area | Sd | 0.0539 | m2 |
| Max.linear excursion | Xmax | 6.5 | mm |
| Voice-coil inductance | LelK | 1.1 | mH |
