| Prod Model: |
L06/8168 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Noise: |
<102dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| THD: |
<0.005% |
| Speaker System: |
Passive |
| Speaker Material: |
Ferrite |
| Application: |
Stage |
| Certification: |
ISO |
| Monitor: |
None |
Product Description

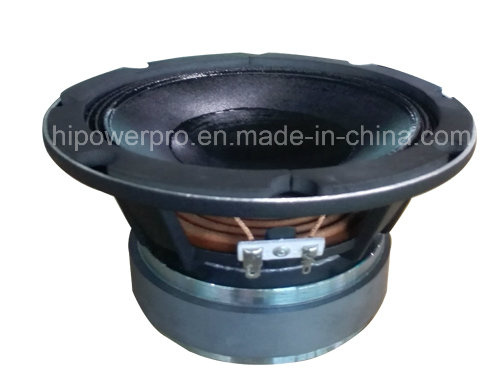

L06/8168-High Quality Professional Audio PA speakers for Midrange of 6 inch
Line array woofer speaker
1) 100W continuous program power handling
2) 92dB sensitivity 1w/1m(hight SPL)
3) Extended mid range response up to 6Khz
4) 35mm(1.5'') cooper clad aluminum voice coil
5) Ideal for high quality midrange applications.
Hipower Audio is a professinal speaker factory with experience in the speaker field for 12 years. We make our own tranducers ,HF drivers and empty cabinets.
6.speaker Details:
| General Specifications |
| Nominal Diameter | 170/6.5 | mm/inch |
| Rated Impedance | 8 | ohm |
| Nominal Power handling | 100 | Watts |
| Program Power | 200 | Watts |
| Sensitivity(lw/lm) | 92 | dB |
| Frequency Range | 120-6K | Hz |
| Minimum Impedance(Zmin) | 7.3 | ohm |
| Voice Coil Diameter | 35/1.5 | mm/inch |
| Voice Coil Material | Copper Clad Aluminum | |
| Number of layers | 2 inside/outside | |
| Surround Shape | Triple-roll | |
| Basket | Cast Aluminum | |
| Flux Density | 1 | T |
| Magnet Material/Mass | Ceramic | |
| Thiele-Small parameters |
| Resonance frequency | Fs | 123 | Hz |
| DC resistance | Re | 6.4 | ohm |
| Mechanical factor | Qms | 5.53 | |
| Electrical factor | Qes | 0.87 | |
| Total factor | Qts | 0.755 | |
| Mechanical compliance | Cms | 0.1618 | mm/N |
Mechanical resistance
of suspension losses | Rms | 1.44 | mech-ohm |
| Effective Moving Mass | Mms | 10.35 | gr |
| Half-space efficiency | Eff | 0.943 | % |
| BL Factor | BL | 7.648 | T.m |
| Equivalent Cas air load | Vas | 4.63 | liters |
| Effective piston area | Sd | 0.0143 | m2 |
| Voice-coil inductance | LelK | 0.4287 | mH |
| Mounting Information |
| Overall Diameter | 174 | mm |
| Bolt Circle Diameter | 161 | mm |
| Bolt Hole Diameter | 5.5 | mm |
| Baffle Cutout Diameter | 151 | mm |
| Overall Depth | 95 | mm |
| Net Weight | 3 | kg |
Guangzhou HiPower Audio Co., Ltd. is located in GuangZhou, China. As a head manufacturer of high quality professional speakers, our 10000sqm factory is outfitted with 6 customized production lines, allowing us to meet the needs of OEM partners.
Hipower specializes in manufacturing high-quality and reliable loudspeakers. Our product ranges consist of professional low frequency transducers, high frequency compression drivers, and Karaoke speakers.
In the R&D, our experienced engineers and technicians carry out research on new materials, state-of-the-art components and advanced product designs with the help of an anechoic chamber, test instruments and simulation software.
Since Hipower was found, we have established a high standard of quality. Our management, manufacturing and quality standards are guaranteed by the ISO9001: 2000 system in 2008.
We are looking forward to establishing long-term relationships with you.
