L-Acoustics Kudo Dual 12-Inch 3-Way Line Array Box
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
T/T,Money Gram,Western Union |
| Prod Model: |
KUDO |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Passive Dual 12'' 3-Wayline Array |
| Hf: |
2X1.75" 75W |
| Mf: |
4X5.5" 350W |
| Lf: |
2X12" 450W |
| Cabinet: |
Plywood |
| Suitable Place: |
Outdoor |
| Hi-Fi: |
Not Hi-Fi |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
CE |
| Operation Mode: |
Cable Connect |
| Speaker System: |
3-Way Line Array |
| Monitor: |
No LED |
Product Description
Product Description

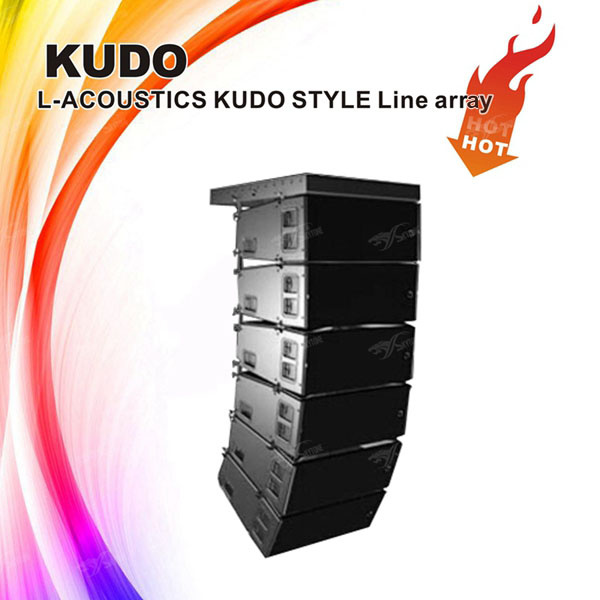

L-ACOUSTICS KUDO style 2x 12" line array
3-way line array
Dual 12" line array system
High power line array speaker
Fanastic nice sound line array
Outdoor line array system
The system shall consist of a 3-way enclosure quad-amplified design using the Wavefront Sculpture Technology (WST) and driven and protected by a dedicated amplified controller. Loudspeaker enclosures shall be installed vertically or horizontally.
K-LOUVER variable directivity with 50° /110° Symmetric, 80° Asymmetric
Arrayable as a constant curvature horizontal line source
Variable line source, splay angle up to 10° For increased vertical coverage
25 Hz mode for exceptional LF performance, reduced subwoofer needs
LA-RAK /LA8 package with advanced system drive and protection

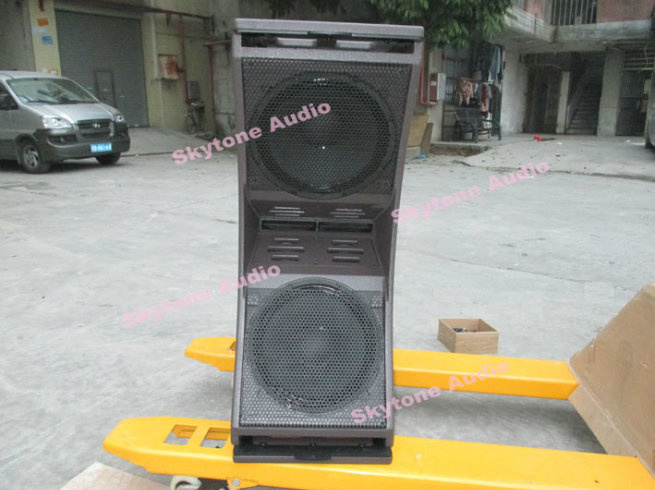

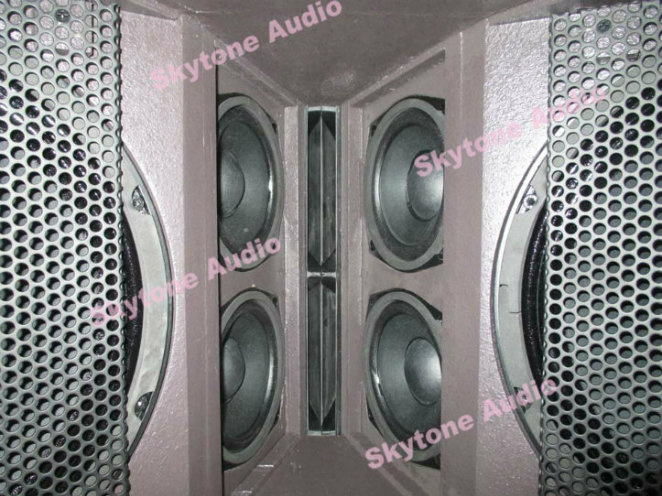

Real Pictures:
| L-ACOUSTICS KUDO STYLE 2x12 inch LINE ARRAY specification |
|
| Usable bandwidth | 35 Hz - 20 kHz |
| Nominal Directivity (-10dB) | Horizontal: 50° or 110° symmetric - 25°/55° or 55°/25° asymmetric |
| Maximum SPL | 140 dB |
| RMS handling capacity(LF) | 2 x 450 W |
| RMS handling capacity(MF) | 4 x 350 W |
| RMS handling capacity(HF) | 2 x 75 W |
| Components(LF) | 2 x 12inch , mounted in a bass-reflex enclosure |
| Components(MF) | 4 x 5inch high efficiency |
| Components(HF) | 2 x 1.75inch diaphramg compression neodymium drivers |
| Material | Birch Plywood |
| Front: | polyester powder-coated steel grill |
| Rigging | integrated flying hardware and handles |
| Size | 876 x 356/276 x 689 mm |
| Weight | 87 kg |
