Prod Model: |
KXZ |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Usage: |
Oil-Water Separator |
Performance: |
Automatic |
Structure: |
Mobile |
Mechanical Principle: |
Vacuum |
Type: |
Vacuum+Patent |
Capacity: |
550~11000L /8hours |
Condition: |
New |
Flow: |
30~200L/Min |
Working Pressure: |
<0.4MPa |
Power(W): |
12~30kw |
Voltage: |
220, 380, 415V |
Product Description

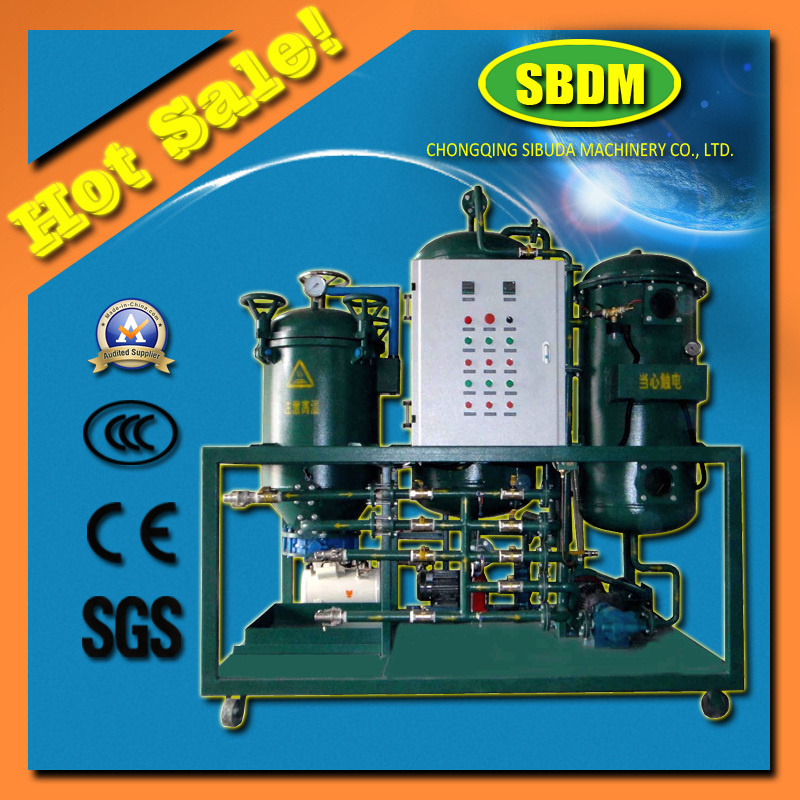

Product Model: KXZ
Product Advantages:
Meet User's Requirement:
1. All of physical features of waste oil can be restored as per new oil standard.
2. It removes impurities and restores viscosity, density, demulsibility and moisture content as per new oil standard.
3. It actually restores used oil to its original color as per new oil standard.
Environmentally friendly:
4. It purifies waste oil with physical methods, no chemical at all.
Economical:
5.30% electricity consumption compare to other similar products.
6. Automatic design ensures easy operation.
Well-structured and Multipurpose:
7. It's designed to purifies waste oil for all kinds of oil in different contamination level.
8. It's designed with double pumps, double temperature control, double liquid level sensor.
9. It's designed with air backwash technology for pipe cleaning.
10. It's designed with high technologies without filters, such as papers, fabrics and plate frames.
KXZ Technology Application
Ø Multi-stage separation system technology: It removes the large metal impurities and metal sludge particles in waste oil.
Ø Micro-filtration technology at low temperature: It has deep heater both centralized and distributed, keep oil during 30° C to 160° C to ensure oil not be aging. Filter cake filter the impurities completely.
Ø Tower type vacuum structure separation technology: This process uses the double stage vacuum spray. After tower gas extraction, the waste gas, odour, light fractions, volatile pollutants, and so on from waste oil are removed.
Ø Three-dimensional Flash technology: It breaksemulsified oilpowerfully and separates acid, alkali, carbonization, emulsification and mud compounds in the waste oil. This step is to improve anti-emulsifiability of output oil. Separation rate more than 99%
Ø Specific gravity separation technology: It separates aromatic hydrocarbon, methane, benzene, light oil, gasoline, kerosene and diesel from waste oil. This stepcompletely dismisses oil derivatives according to different density.
Ø Flocculation technique (Adsorption Technology): This is one of physical principle for bridge to adsorb and condense residual carbon molecules, colloid and oxide.
Ø Cooling sewage collection technology: Deal with wastes to avoid secondary pollution.
KXZ Working Principle
Ø Pre-separation is to remove large metal impurities and metal sludge particles in waste oil.
Ø Waste oil flows into pre-heating system with centralized and dispersed deep heater. According to different oil physical and chemical index, oil activity is kept at best condition but not be aging for next step physical reaction.
Ø Tower type vacuum separation system, remove waste gas, odor, light distillation and other volatile gases.
Ø Emulsion separation system is a advanced technology for three-dimension flashing multi-layer demulsification, decomposing emulsified oil molecules completely and separating acid, alkali, carbonization, emulsification and mud compounds. It is to improve anti-emulsifiability index of oil.
Ø Gravity separation system separates aromatic hydrocarbon, methane, benzene, light oil, gasoline, kerosene and diesel from waste oil. This stepcompletely dismisses oil derivatives according to different density.
Ø Flocculation reaction system, using adsorption technology to adsorb and condense residual carbon molecules, colloid and oxide.
Ø Air condensation system, cooling and eliminate waste gas and waste water to avoid oil re-pollution.
Ø Outlet oil system, separating regenerated oil and waste through press filtration.
Technical Parameter |
Technical Items |
Unit |
KXZ-50 |
KXZ-I |
KXZ-II |
KXZ-III |
KXZ-IV |
KXZ-V |
Total Power Consumption |
Kw / h |
30 |
35 |
50 |
65 |
75 |
80 |
Rated Heating Power |
Kw / h |
3 |
3 |
4.5 |
6 |
4.5 |
6 |
Average Power Consumption |
Kw / h |
9 |
12 |
18 |
25 |
28 |
30 |
Oil Inlet Flow |
L / min |
30 |
55 |
100 |
150 |
200 |
240 |
Working Capacity |
L/8hours |
550 |
1100 |
2200 |
3300 |
4400 |
5500 |
Processing cost |
USD / Ton |
30~50 |
Operating Voltage |
V |
220~380 |
Working oil's temperature |
°C |
30~140 |
Working pressure |
MPa |
<0.8 |
Noise |
dB(A) |
<70 |
SBDM is one of high-tech manufacturer of valves and oil purifier machine, including R&D, manufacturing, sales and service.
We manufacture API6D BALL VALVE, API600 GATE VALVE, BS1868 CHECK VALVE AND BS1873 GLOBE VALVE. We also provide high quality oil purifier machine.
