| Prod Model: |
GS-268 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Frame Size: |
Eia Standard 1 U |
| Channels: |
2 |
| Modulation Mode: |
FM |
| Weight: |
4.3kg |
| Signal Transmission: |
Wireless |
| Directivity: |
Uni-direction |
| Sound Channel: |
Stereo |
| Wireless Technology: |
UHF |
| Output Impedance: |
50-1000Ω |
| Style: |
Microphone Receiver |
| Application: |
KTV |
Product Description

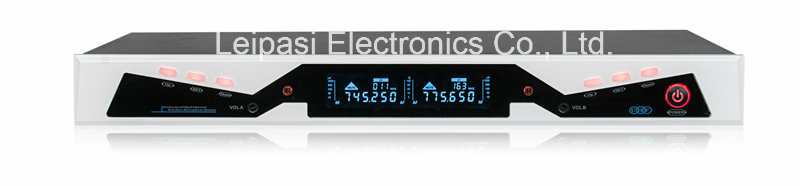

KTV Performance digital UHF Wireless Receiver
GS-268 Receiver
Main Frame Size EIA STANDARD 1 U
Channels Dual channel
Frequency Stability ±0.005% Phase Lock Loop frequency control
Carrier Frequency Range UHF 730-790MHz
Modulation Mode FM
Operating Range 50M typical(in open space)
Oscillation PLL synthesized
Sensitivity 50dB uV,S/N>60dB at 25 deviation
Band Width 60MHz
S/N >108dB
T.H.D <0.4%@1KHz
Frequency response 65Hz-18KHz±3dB
Power supply 100-240VAC50/60Hz,10W
Weight 4.3KG
GS-268 microphone description
1.200 selectable UHF frequencies and true diversity reception for interference-resistant operation
2.The transmitters offer durable, magnesium bodies ,soft-touch controls
3.With intelligent mute function, automatically shut down after 3 seconds, turn off the power for 10 minutes.
4.Press[IR] button to upload automatically the receiver frequency to the transmitter.
PLL(Phase Lock Loop frequency control)design ensures transmission reliable features,wigh high-visibility LCD display
Battery life is twice as common,up to 15 hours.
HR series provide incredible audio quality and outstandingly reliable performance for artists,broadcasters and other demanding audio environments.
FAQ
| Our Advantage | 1.We are professional microphone factory, so we can provide the compitive price to you.
2.we focus on middle and high-end items and ensure every product made by the the superior material. we have strict quality control system to avoid quality problems.
3.There are many types you can choose ,if you have you own designed idea,we also accept the OEM order
4.Little order is availiable |
| The Sample | About the sample,we need to charge the sample and freight fee |
| The Shipping | 1.Express
2.Air shipping
3.Sea shipping |
| The Lead-time | 1.Small order and sample:5-7days
2.Big order:30-45 days |
| Payment | T/T(T/T:30% deposit before producing ,the balance paid before shippment) |
Enping Leipasi Electronics Technology Co Ltd is professional audio manufacturer and our factory is located in Enping city, Guangdong, China. We are dedicated to manufacturing high qualityprofessional power amplifier, equalizers, crossovers and signal processors.
Over past years, we has earned great reputation among our partners by providing high performance audio products that is trusted but also maintaining a high level of service and after sales service.
We have been the manufacturer of professional power amplifier for years. We have the excellent technology and use the superior materials which are mostly imported from Japan, Korea and so on. We exported the amplifiers to all over the world, such as America, Japan, Thailand, ect.
There are many different series of products. Such as CA, CK, MT, FP, HA series. The watt range from 15W to 1500W. All series of our goods are high quality, stable and have a lower price, which can help you to reduce your cost and win your market.
OEM and ODM service are also offered to you. Together with the team of engineers, we are dedicated to research and develop new professional audioto keep up with current market's demand.
It is your good choice to choose our products, and it is going to be the pride of our company to build a business relation with you.
