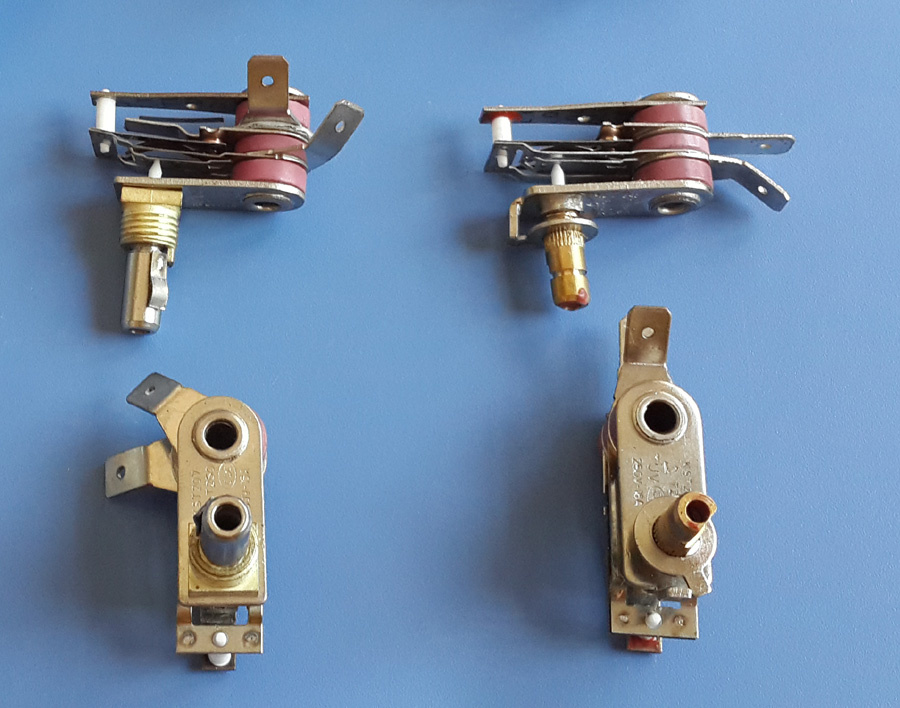

Kst Oil Heater Thermostat Fry Pot

Name: Kst Oil Heater Thermostat Fry Pot
Brand: ec-portal.com
SKU: 748103245
Availability: InStock
Rating: 4.6 (141 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Send Inquiry

Showroom Product Company Profile

Prod Model:	jl
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
10:	10
101:	1
11:	11
12:	12
Usage:	Air Conditioner
Certification:	CE
Control Type:	Mechanical
Type:	Temperature Controller
Display Type:	LED
Material:	Stainless Steel

Product Description

Thermostat:
Certifications: VDE, UL and CQC
Application: Oven, rice cooker, iron, heater fan and more
Voltage and current: 125V/16A. 250V/12A
Thermostat controls temperature using double-metal, with models of flash insert and so on
Can be fastened to the any place of the body or frame work with rivet or aluminium board, measuring temperature by conduction radiation or convection without strong electro magnetic distraction
Among them, compensation thermostat controls temperature and reduces temperature fluctuation by absorbing it own heat of it own heating element
Widely used in electrical cooker and heater with reliable performance and simple installation, such as electrical dry oven electro magnetic stove frying pan electrical iron and so on
Principles:
With thermostat installed on the heating part, the double-metal will jump to cut off the power when the temperature in the appliance reaches the preset temperature in the thermostat, while the double-metal will fall back to connect the power when temperature falls to the certain temperature
In the way, thermostat works
Specifications:
Rated voltage: 250/120V
Hot insulation resistance: >7MΩ
Rated current: 10A/16A
Moisture insulation resistance: >5MΩ
Normal working temperature range: 0~250
Hot leakage current: <0.25mA
Working temperature difference: ± 15
Moisture leakage current: <0.5mA
Allowed mix working temperature: 250
Radio distraction property
Cold withstand voltage: >2400V/S
Contact lifetime: >30000
Working with stand voltage: >2000V/S
Contact state: Off/on
Moisture withstand voltage: >2000V/S
Certifications: TUV/UL/CQC
Rated voltage and current: AC 250V/16A, AC 125V/15A
Temperature range: 0-250º C
The highest environment temperature: 250º C
Rotation angle: 0-310º C
Contact resistance: <50MΩ
Insulation resistance: >100MΩ
Electric strength: 2000V/0.5A/1s
Service life: 100, 000 times
Easy for installation
Size of the terminal and the angle can be made according to the customer's requirements
Scope of application: Electric heater, iron, sandwich maker, rice cooker, deep fryer and electric chafing dish
We produce thermostat for heater thermostat, fry pot thermostat, electrical iron thermostat Oil heater thermostat, oil sly thermostat, oven heater thermostat. Etc.
10A- 16A, good quality. Best price, Please feel free connect with us. All products with CE and TUV certificate

116th China Import and export Fair Phase 1 (Canton Fair Autumn 2014)

15 Oct 2013 - 19 Oct 2013, China Import and Export Complex, 2.2B05-06 welcome

Lianyungang JiaLei International Trade Co., Ltd. is a comprehensive company, which gather manufacture and export business. It is the specialist manufacturer specialized in the production of infrared heater, heating elements and quartz products. We have more than 15 years experience for production and OEM service.

The company is located at the beautiful Yellow Sea--Lianyungang city, Jiangsu province, China. Lianyungang harbor is an important component part of the Eurasian intermodal route. It is apart from the Shanghai harbor 500 kilometers and the Qingdao harbor 300 kilometer. The geographical position is superior. The land, water and air transportation facilitate extremely.

Headquarters locates in the center of Lianyungang city. It has acquired the self-support right on import and export authorized by the State Ministry of Foreign Economy and Trade. The main mode of the company is self-managing and agency for import and export business. The company is provided with comparatively strong specialty import and export professional level, with a lots of compound foreign trade specialists with high quality. We not only provide excellent service to our clients but also raise the efficiency of clearing custom greatly.

In the village of Lianyungang City, the company also has three manufacturing enterprises with a modern plant of 60, 000sq. M. & a working team of over 500 staff, among whom are 30 compound administrating talents and 100 outstanding technicians of these industries. The factories mainly produce infrared carbon heater, quartz products, heating lamps, heating elements etc. The annual output of the heater approximates to 200, 000-500, 000 PCS, the quartz tube approximates to 500 tons and the heating lamp approximates to 5000, 000 PCS.

At the same time, the company also are the export agent of the factories which haven't acquired self-support right on import and export. Such as exporting chemical. Hotel amenities etc.

The factories have obtained ISO9001: 2008, CE, RoHS and Reach certificate. 80% of products are exported to Europe, America, Middle East, Southeast Asia etc. The products are greatly enjoyed by customers with best quality, steady performance and good aftersales servicesrich. We have established long and friendly business relationship with foreign customers from all over the world.

The main products are as follows:

1. Infrared Carbon Heater: ( It is developed independently by us. The advantages are 30-40% energy-saving, 5000 hours lifespan, health benefits and eco-friendly etc. )

2. Quartz Products: Quartz tube (milky, clear, thick, large diameter, gold coated, ruby, borosilicate etc. ) quartz plate, quartz rod, silica ware, etc.

3. Heating Lamps: Carbon fiber heating lamp, halogen heating lamp, metal halogen lamp, quartz heating tube, etc.

4. Heating Elements: Ceramic heater element, quartz heater element, etc.

5. Chemicals: Kinds of Salt(sodium chloride), Sodium hydrosulfite, Iron oxide red, Calcium carbide, DCP & MCP feed grade, Sodium bicarbonate & Ammonium bicarbonate food grade etc.

6. Guest Amenity: Hotel slipper, soap, bath fizzer, hotel bathroom accessory etc.

7. Others: Thermostat, solar water heater, ceramic fiber etc.

We follow the principle of "credit fundamentality, quality first and customer above ". We sincerely welcome customers new or old at home or abroad here to visit and negotiate for cooperation.
