Ksd Thermostats Heater Temperture Controller Sensor

Name: Ksd Thermostats Heater Temperture Controller Sensor
Brand: ec-portal.com
SKU: 770131455
Availability: InStock
Rating: 4.7 (128 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Send Inquiry

Showroom Product Company Profile

Prod Model:	JL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
220:	220
250:	250
1:	1
10:	10
Usage:	Air Conditioner
Certification:	CE
Control Type:	Digital
Type:	Temperature Controller
Display Type:	LCD
Material:	Stainless Steel

Product Description

Thermostat:

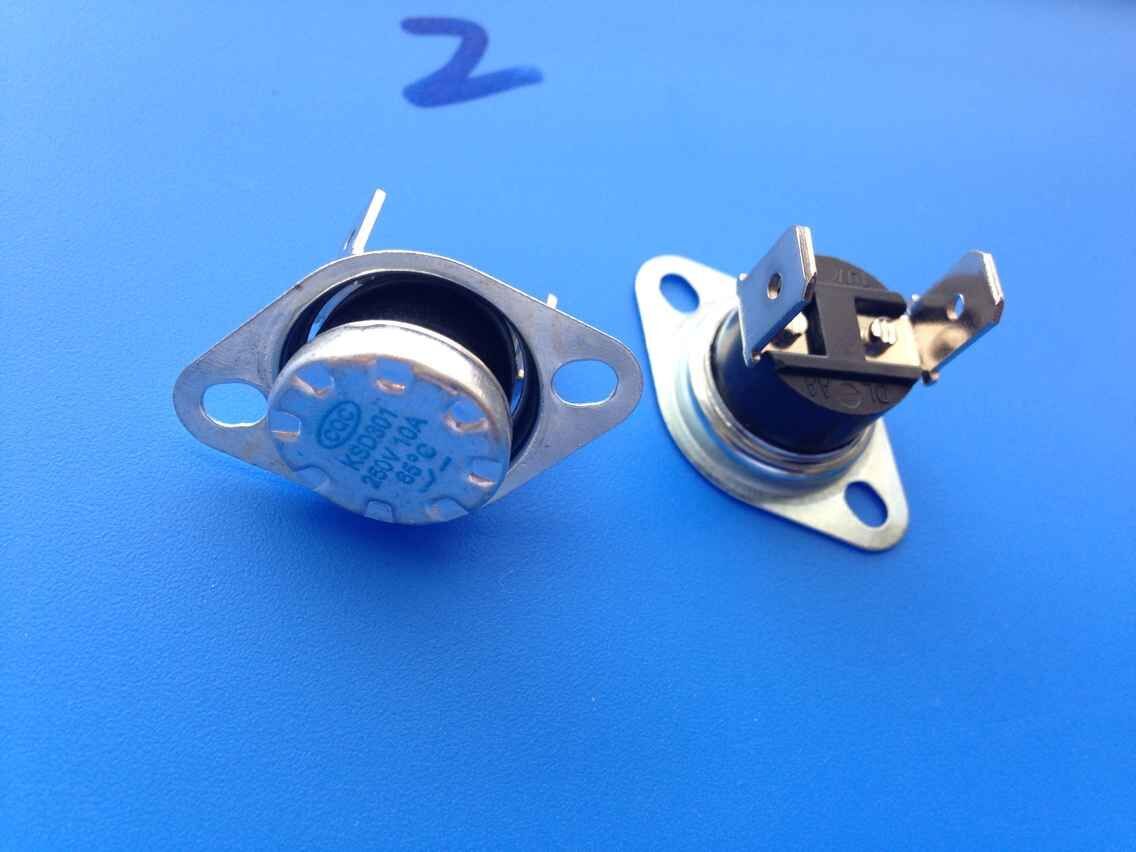

KSD301snap action thermostat series is a small-size bimetal thermostat series with a metal cap,which belongs to thermal relays family. The main principle is that one function of bimetal siscs is snap action under the change of sensing temperature. The snap action of disc can push the action of the contacts through the inside structure, then caused on or off of the circuits finally. The main characteristics are the fixation of working temperature, the reliable snap action, less flashover, longer working life and less radio interference.

KSD-301-2
TYPE DESCRIPTION
OFF:40-200ºCON:>-10±6ºCRated current/voitage: AC250V 5A-16ACap code: H (with movability bracket)Terminal code:250-2(250#)

Specifications:
Rated voltage: 250/120V
Hot insulation resistance: >7MΩ
Rated current: 10A/16A
Moisture insulation resistance: >5MΩ
Normal working temperature range: 0~250
Hot leakage current: <0.25mA
Working temperature difference: ± 15
Moisture leakage current: <0.5mA
Allowed mix working temperature: 250
Radio distraction property
Cold withstand voltage: >2400V/S
Contact lifetime: >30000
Working with stand voltage: >2000V/S
Contact state: Off/on
Moisture withstand voltage: >2000V/S
Certifications: TUV/UL/CQC
Rated voltage and current: AC 250V/16A, AC 125V/15A
Temperature range: 0-250º C
The highest environment temperature: 250º C
Rotation angle: 0-310º C
Contact resistance: <50MΩ
Insulation resistance: >100MΩ
Electric strength: 2000V/0.5A/1s
Service life: 100, 000 times
Easy for installation
Size of the terminal and the angle can be made according to the customer's requirements
Scope of application: Electric heater, iron, sandwich maker, rice cooker, deep fryer and electric chafing dish
