Kiosk Touch Screen

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Touch Screen Panel AD Player

Product Description

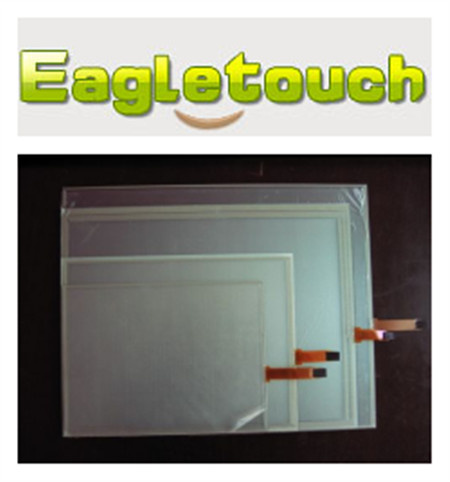

5-Wire resistive touch screen is the preferred solution for applications requiring durability and reliability over time. Similar to the 4-Wire technology, 5-Wire touch screen also consists of a conductive bottom layer (ITO Glass or ITO Film) and a conductive top layer (ITO Film). The fundamental structure difference between the two is: In the 5-wire technology, all the electrodes are placed on the bottom layer and the top layer acts only as a voltage measuring probe. Therefore, the touch screen works properly even with damages or scratches on the top layer.

Specification
Circuiting Rating: 5V DC, 35mA Surface Hardness: 3H
Light Transmission: Film+Film>77% Hitting Life Expectancy: Over 35million
Film+Glass>83% Scoring Life Expectancy: Over 5million
Contact Bounce: <10ms Operating Temperature: -10 oC ~+60 oC
Resolution: 4096x4096 Storage Temperature: -20 oC ~ +70 oC
Linearity: 1.5%(<1.0% By Request) Choices of Glass Thickness: 0.7mm, 1.1mm, 2.0mm, 3.0mm, 0.55mm
Operating Force: 10g~100g Choices of Glass: Normal Glass, Chemically strengthened glass

Features
Superior 5 Wire technology
Film on glass touch screen with superior image clarity, high resolution and good light transmission.
Durable - 35 million touches per point life.
High touchpoint density: Upto 4096 x 4096.
Accurate operation.
Antiglare glass option.
Finger, gloved hand and soft stylus activation.
Sizes - Flat 10.4", 12.1", 13.3", 14", 15", 15.8", 17", 19", 20.1" 22".
Controllers compatible with Windows family, Linux and DOS.
