| Prod Model: |
QTI-1T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Ice Diameter: |
22mm~35mm |
| Refrigerant: |
R22/R404A |
| Compressor: |
Mabeurop/Bitzer |
| Evaporator: |
Ice Cylinder |
| Certification: |
SGS |
| Condition: |
New |
| Application Fields: |
Edible Ice |
| Ice Shape: |
Tube |
Product Description
Product Description

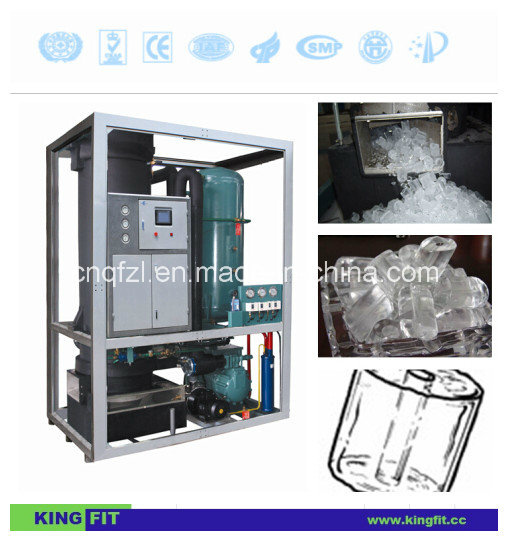

QINGFENG ice tube machine adopts top brand compressors made in U. S. A, Italy, Japan. By virtues of more than a decade experience and technology, our products have such features as beautiful outline, stable running, easy cleaning and simple operation as well as multiple protective functions for the occasions with unstable power supply.
Tube Ice Machine is one of our Machines for food field series pruducts, which is widely applied in drinking modulation, decoration, food storage and fresh keeping, etc...
Tube ice machine series space saved, high effect and energy saving, system intelligent control. It is a kind of well distributed vortex water film forming ice system, ice maker adopt full stainless steel material, meet eat sanitary standard, forming ice with nice shape. Machine design with cut ice and filter water equipment.
Tube ice features:
1. Hollow tube of Irregular length
2. Hard ice with water content ≤ 2%
3. Outside diameter is ø 22mm, ø 29mm, ø 35mm
4. Length is 20mm ~ 50mm
5. Inside diameter is generally between ø 5mm~ø 10mm, can be adjusted according to ice time
Tube ice is thick and transparent with long storage period. It isn't likely to melt in a short time, good air permeability.
Tube ice machine features:
Ice making principle of the ice tube machine
1. After the refrigeration system working normally, the water in the bottom water tank transported to the inlet of the upper water bin from the outlet by the chilling pump, the water go through the water segregation in the way of recuperator tube, in this case the temperature is reduced, some water freeze into ice tube in the inner recuperator tube, and the rest water in low temperature goes back to the bottom water bin, the water circulating again and again in this way, and the cooling capacity is in little loss.
2. Full automatically: PLC system controls the whole ice making process.
3. Application: It can be directly eaten or used in cold drinks, wine, cool foodstuffs, make ice pastries and keep seafood fresh etc.
After-sales service
1. All ice machines have one year of free maintenance period which is starting from the date of sale.
2. The damaged parts can be replaced free of charge if it is not damaged due to manual error operation in one year.
3. All this is confirmed by the technical identification of the company or agent. Otherwise, costs of the part will be charged.
