| Prod Model: |
028 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1--50 |
| Screen Size: |
5-15 Inches |
| Aspect Ratio: |
16:9 |
| Application: |
Industrial Control System |
| Screen Type: |
Resistive |
| Resistive Touch Screen Type: |
Digital |
| Customized: |
Customized |
Product Description
Specifications :

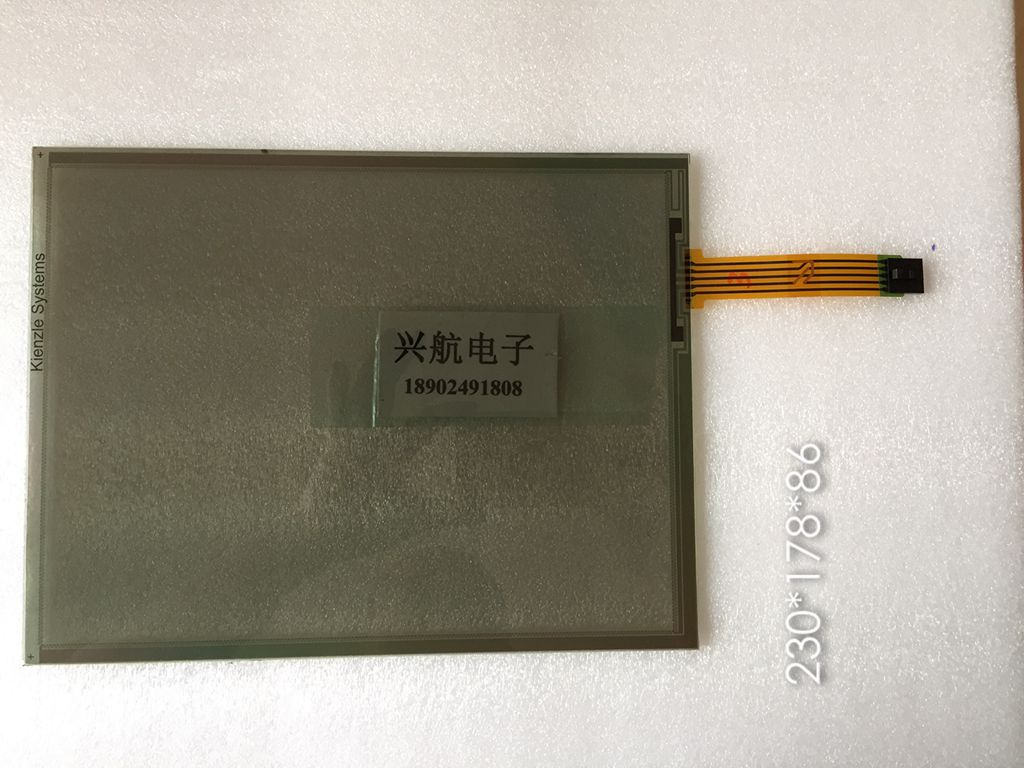

4 Wire Resistive Touch Screen/Touch Screen/Resistive Touch Screen
1.1 Environmental characteristics:
| NO. | Item | Specification |
| 1 | Operation temperature | -10°C~+60°C |
| 2 | Storage temperature | -20°C~+70°C |
1.2 Electrical characteristics :
| NO. | Item | Specification | Remarks |
| 1 | Rated Voltage | DC 5V 1mA |
|
| 2 | Linearity | 1.5% | Load 120gf |
| 3 | Resistance | Film side: 200Ω~1250Ω | FPC
At connector |
| Glass side:100Ω~500Ω |
| 4 | Insulation Resistance | 20 MΩ | DC 25V |
Mechanical characteristics:
| NO. | Item | Specification | Remarks |
| 1 | Operating force | 20-150g | R0.8 |
| 2 | Hardness of surface | ≥3H | JISK5400 |
| 3 | Light Transmission | ≥80% |
|
| 4 | FPC Bending | Bend radius 1.0mm,above 3 times | Content 3.2 |
| 5 | FPC peeling strength | Horizontal direction 180degree,0.5kgf
Will not peel within 10 minutes | Content 3.2 |
Reliability test :
| NO. | Item | Specification | Remark |
| 1 | High temperature storage | 50°C, 40hr |
|
| 2 | Low temperature storage | -30°C, 40hr |
| 3 | High temperature high
Humidity storage | 70°C,70%RH,120hr |
| 4 | Temperature Cycling | -20±2°C - 70±2°C (0.5hr each),10cycles |
| 5 | Input life | More than 5,000,000 times (Tip R0.8mm) |
|
| 6 | lineation test | More than 100,000 times (Tip R0.8mm) |
|
| 7 | Life cycle | 4 wire >1,000,000 cycle
5 wire > 35,000,000 cycle
8 wire > 4,000,000 cycle |
|
Since 2006, E-sun electronic provide customer with customerize designed and Input Devices and interface technology.
E-sun electronic believe that we stand by creat value for customer. Base on China, we support customer the most competitive price.
All materials is RoHS compliance.
2006 E-sun shenzhen established with membrane switch, nameplate, graphic overlay, domed label market
2007 invested for kapton circuit and PCB
2010 invested for silicon rubber(elastomer) keypad
2012 invested touch panel and touch display(touch monitor)
2013 invested capacitive switch keypad
2014 Setup Hongkong E-sun office for oversea market
2015 invest to office device
Product
*Touch panel
*Resistive touch panel(4 wire, 5 wire and 8 wire) from 3.5inch to 23 inch
*Project capacitive touch panel from 1.8 inch to 32 inch
*Membrane switch/graphic overlay
*Elastomeric keypad
*Metal keyboard
*Customerize plastic products and metal products
*PCB and regid Flexiable print circuit(kapton and PET)
*Value add assembly service
*Bar code scanner and laser scanner
Appliance:
Medical device
Industry control
Aerospace and defence
Comsumer
Automative
Other
