| Prod Model: |
QZB-1T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ice Weight: |
2.5/5/10/15/20/25kgs |
| Certification: |
CE |
| Condition: |
New |
| Cooling Way: |
Water Cooled / Air Cooled |
| Ice Temperature: |
-8 Deg;C |
| Application Fields: |
Block Ice |
Product Description
Product Description

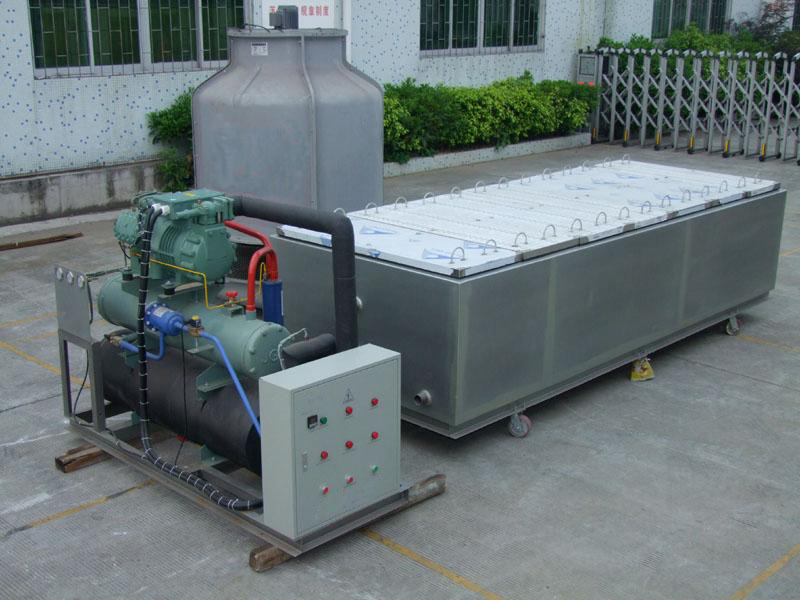

QINGFENG ice block machine adopts top brand compressors made in U.S.A, Italy, Japan, with inbuilt energy economizers of QINGFENG own patent. By virtues of more than a decade experience and technology, our products have such features as beautiful outline, stable running, easy cleaning and simple operation as well as multiple protective functions for the occasions with unstable power supply.
A complete range of specifications:
Ice block temperature: -8°C
Daily output is 3 tons(3000kgs).
Ice blocks from 2.5kgs to 25kgs in weight, and it also can be customized
Ice production time may vary from 4 hours to 24 hours.
The machine only needs connection of the power and water source.
Our patent product and counterfeiting is not allowed. (Patent NO: ZL2006 2 0160341.6)
Brine system ice block machine operation process
1.Connect the power and water source, turn on the machine.
2.Put the brine water to the tank and make the concentration according to which marked on the users manual.
3.Fill the pure water into the ice mould, then put the ice mould into the ice tank.
4.When water is completely frozen into ice, take the ice mould out, then put then into warm water for several seconds. Pour the ice out and put the ice mould again for the next batch.
After-sales service
1.All ice machines have one year of free maintenance period which is starting from the date of sale.
2.The damaged parts can be replaced free of charge if it is not damaged due to manual error operation in one year.
3. All this is confirmed by the technical identification of the company or agent. Otherwise, costs of the part will be charged.

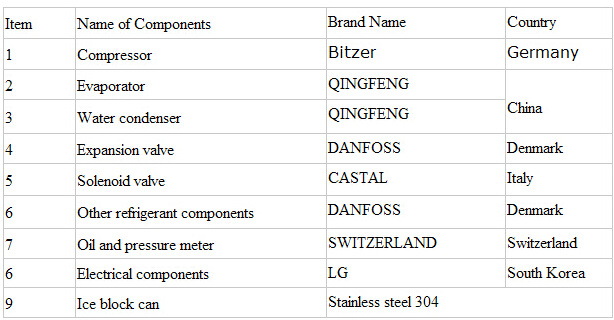

Main Components for QZB-1T:
Application field
Brine system block ice machine is widely used in concrete cooling projects, fishery aquatic product processing, meat processing, edible ice, man made ice project, medicine, chemical projects, supermarket, hospital, hotels.
If you have any requirement or inquiry about our products, welcome to contact us for more detailed information!

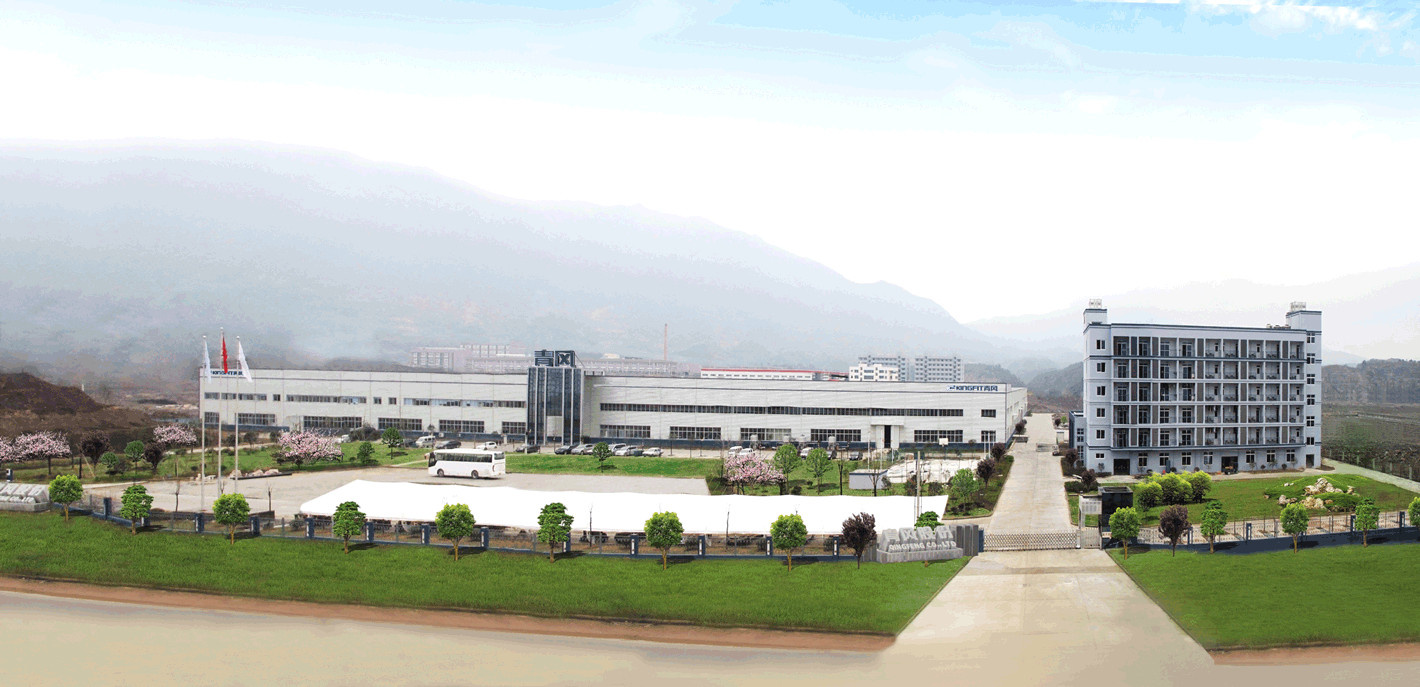

Zhejiang Kingfit Environment Co., Ltd.is subsidiary of Kingfit International Group Limited in East China, founded in 1998, with total capital of USD 5.38 million of Sino-joint venture enterprise. East China factory is located at Shuige Ind. Park in Lishui City of Zhejiang Province with convenient traffic, and covers a land area of 20000sqm. Our company is constantly introducing advanced manufacturing workmanship and testing equipment, invests 5% of it gross sales amount into R&D center every year and we established tight national testing center. The products are recognized by the users from abroad and at home and entitled "the Top 10 Well-known Refrigeration Equipment in China" and "National Quality Guaranteed and Eligible Product in Refrigeration Equipment Industry" etc. Our company introduced many leading technology production lines for the manufacture of screw style chiller, box-type chiller, cooling tower, freezing dryer, high temperature heat pump, ice making machine etc. The products are exported to more than 30 countries, this is a high tech enterprise integrated scientific research, production and trade, and is also currently the largest and most professional refrigerating and heating equipment manufacturer in China.
