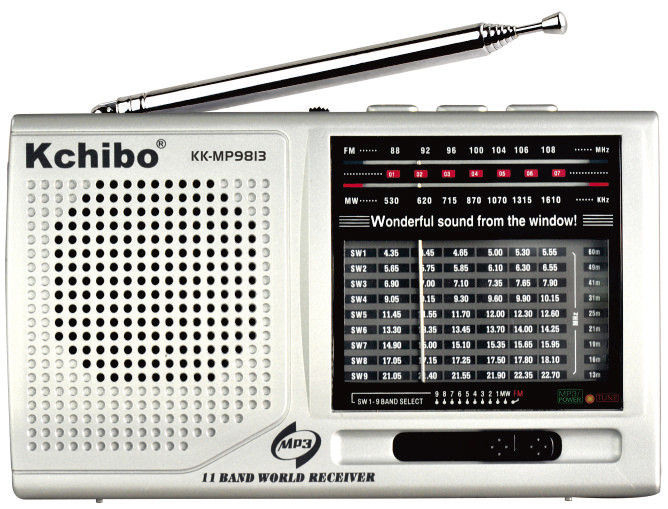

Kchibo Kk-MP9813 FM/MW/Sw1-9 11 Band Radio with MP3

Kchibo Kk-MP9813 FM/MW/Sw1-9 11 Band Radio with MP3
Price: US $ 6.3-7.0/Piece
Trade Terms: FOB,EXW
Min Order: 500/Piece
Pay Type: T/T
Prod Model: KK-MP9813
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Packaging: Paper Box
Production: 60000/M
Colour: White
Specification: CE/RoHS
Certificate: ISO
Wavelength And Frequency: Middle-wave
Application: Civilian
Certification: CE
Style: Sky Wave
Condition: New
Standard: Standard
Screen: Without Screen

Product Description


FM/MW/SW1-9 11 band receiver with MP3.

360°Antenna.

Use 2 UM1 batteries.

Channel selection method: manual channel search.

With MP3 player, MP3 audio files on SD card and U disk can be played.

DC jack.

UNIT SIZE:167 x 100 x 44mm

Technical Index:
1. Frequency range:
    FM:     88-108.0      MHz
    MW: 526.5-1606.5  KHz
    SW1:  4.75-5.05     MHz
    SW2:  5.95-6.20     MHz
    SW3:  7.10-7.30     MHz
    SW4:  9.50-9.90     MHz
    SW5: 11.65-12.05  MHz
    SW6: 13.60-13.80  MHz
    SW7: 15.10-15.60  MHz
    SW8: 17.50-17.90  MHz
    SW9:  21.45-21.85 MHz

2. S/N sensitivity
    FM:  Better than 10   V
    MW:   Better than 4mV/m
    SW:    Better than 60  V

3. SNR FM:   98MHz≥50dB
             AM:  1000KHz≥40dB

4. Single signal selectivity :AM: 1000KHz±9KHz
    better than 10dB

5. Maximum output power:  larger than 100mW

6. Power supply:
    External power supply        DC 3V
    Inside battery: 2 D batteries

7. Maximum consumption current:
    smaller than 350mA

8. Play format of this radio: MP3 format

9. USB port:
      Compatible with USB 1.1/USB2.0
      standard (TF card, MINI card and
      MMC card are supported with card
      reader and card sleeve. The capacity
      of the card should not be larger than
      8GB).

10. SD card slot: support SD card
      (The capacity of the card should not
      be larger than 8GB).

11. Distortion degree of MP3 ≤1%

12. MP3 SNR:≥43dB

13. Built-in speaker: Φ66mm/4Ω/0.5W

14.Earphone: Φ3.5mm   32Ω

15. Weight: about: 274g
