| Prod Model: |
KT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sound Channel: |
2.1 |
| Output Number: |
4 |
| Voltage: |
AC 220V |
| Function: |
Post Amplifier |
| Tube Type: |
Tube Amplifier |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
Product Description

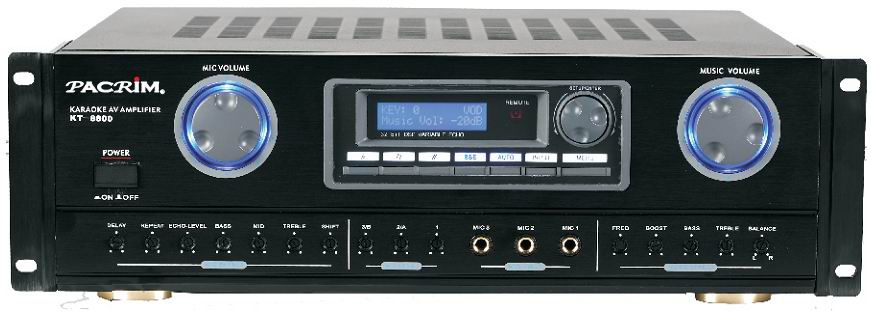

KT series are Karaoke system high performance amplifier
| MODEL | KT-8300 | KT-8800 | K-8260 | K-8280 |
| Output power 8 ohm | 250W+250W | 350W+350W | 300Wx2+250W | 300Wx2+250Wx2 |
| Output Channel | 2 CH | 2 CH | 3 CH | 4 CH |
| Input Channel for music | 4 CH | 4 CH | 4 CH | 4 CH |
| Input channel for Mic | 5CH | 5CH | 5CH | 5CH |
| Music Frequency response | 20Hz-20KHz, 1.5dB |
| Input impedance | 47Kohm | 47Kohm | 47Kohm | 47Kohm |
| Singal noise ratio | >80dB | >80dB | >80dB | >80Db |
| Crosstalk | >40dB | >40dB | >40dB | >40dB |
| Mic frequency response | 40Hz-18KHz, 1.5dB | | | |
| Input sensitivity | < 10Mv | < 10Mv | < 10Mv | < 10Mv |
| Mic tone control | 200Hz UP/DOWN≥±10dB , 10KHz UP/DOWN≥±10dB |
| Protection | Short circuit currect limited DC AC line fuse, thermal cut OFF, power up/down transience, slow art |
| Indicators | LED |
| Cooling | Variable speed fan |
| Front panel control | Input selector, key control, effect selector, Mic adj, music adj, remot input, master vol, mute |
| Rear pannel contrl | Music VOL lock, Mic VOL Lock |
| Power consumption full power 8ohm | < 500W | < 600W | < 850W | 900W |
| Power supply | AC 200V-240V, 50-60Hz |
| dimension | 430x400x145 mm | 500x445x210mm |
| N.W/G.W | 10.5/12kg | 12.5/14kg | 13.5/15kg | 14/15.5kg |
