| Prod Model: |
JK-50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control Mode: |
Flow Rate Type, Time Type |
| Resin: |
001×7 Strong Acidic Cation-Exchange |
| Working Ambient Temperature: |
5-50centigrade |
| Relative Humidity: |
Less Than 95%(25centigrade) |
| Hardness Of Raw Water: |
Less Than 8mmol/L |
| Hardness Of Effluent: |
Less Than 0.03mmol/L |
| Inlet Water Pressure: |
0.2 to 0.4mpa |
| Free Chlorine: |
Less Than 0.3mg/L |
| Suspended Solid: |
Less Than 0.5mg/L |
| Iron Content: |
Less Than 0.3mg/L |
| Working Principle: |
Ion Exchange |
| Certification: |
CE |
| Inlet Mode: |
Pipeline |
| Installation: |
Vertical Type |
| Heating Mode: |
No |
Product Description
Detailed Product Description
1. Wide applications
2. Simple operation
3. Automatic valve control
Working principle:
01. Absorb the calcium and magnesium ions in water with resin, since the hardness of water is mainly composed of calcium and magnesium, in general, we adopt cation exchange resin (softener), replace Ca2+, Mg2+ (main ingredients for scale ) in water with the Ca2+, as the increase of Ca2+ and Mg2+ in resin, removing performance on Ca2+, Mg2+ of resin will gradually reduce.
02. When the resin has absorbed a certain amount of calcium and magnesium ions, it must be birth, the regeneration process is that flush resin layer with the salt water in salt box, replace hardness ion out of the resin again, and discharged from the tank with waste liquid of regeneration, then resin resumed the function of softening and exchanging.
03. The principle of sodium ion exchange and softening treatment is to exchange cation in the raw water with resin, hardness constituents Ca2+and Mg2+ in water exchange Na+ in resin, thus absorb the Ca2+and Mg2+ to make the water to be softened.
2RNa + Ca2+ = R2Ca + 2Na+
2RNa + Mg2+ = R2Mg + 2Na+
After the water treated by sodium ion exchanger, the Ca+ and Mg+ were superseded by Na +.
Application scope of softener
Mainly used for industrial and civil water softening preparation, such as Boiler feed water make-up water, air conditioning system, heat exchanger, power plant, chemical, textile, printing and dyeing, pharmaceutical, electronic system and water pretreatment.
(1)Single tank time type, it adopts microcomputer to control the time, when operation of the equipment reaches setting time, it will automatically enter the regeneration stage, which can be recycled and regenerated for once or more times every day.
(2) Single tank flow type, it adopts control of turbine flow or electronic flow sensor, when the yield of softener reaches preset flow it will automatically enter the regeneration stage, which can be recycled many times every day.

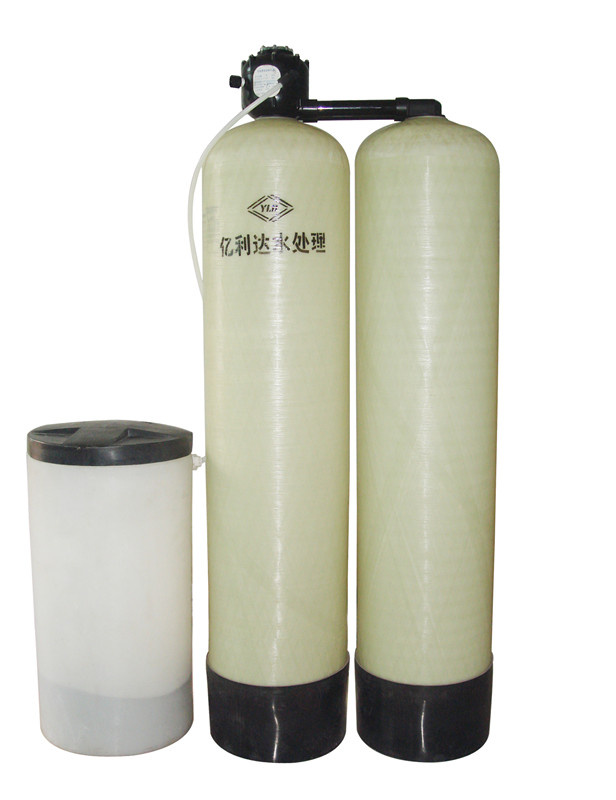

(3) Double tanks flow type, which could be divided into one running-one alternate, and simultaneous running and separately regeneration.
(4) One running and the other alternation type, one tank is running while another is alternating, when water yield of operating tank reaches the preset flow rate, it will enter the regeneration stage, meanwhile, the other tank will enter the working state, these two tanks work and regenerate alternatively to realize continuous water supplying of 24 hours.
(5) simultaneous running and separately regeneration type, two cans running simultaneously, when the flow rate reaches the setting rate, one tank (can) will regenerate and the other tank will output water continuously, when the first regeneration tank finish the regeneration it will enter the working stage, the other one will enter regeneration stage, these two cans finish regeneration and enter working state simultaneously.
| Model | water output
(M 3 /Hour) | dimension of can
diameter*height(mm) | salt box(mm)
diameter*H | consumption on resin
(KG) | Connecting for external pipe(mm) |
| YLD-JK25 | 0.2-0.3 | 150×1200 | 350*720 | 25 | 25 |
| YLD-JK50 | 0.5-0.6 | 200×1200 | 350*720 | 50 | 25 |
| YLD-JK75 | 0.8-1.0 | 250×1200 | 400*800 | 75 | 25 |
| YLD-JK125 | 1.8-2.0 | 300×1650 | 400*800 | 125 | 25 |
| YLD-JK175 | 2.8-30. | 350×1650 | 530*940 | 175 | 25 |
| YLD-JK250 | 3.5-4.0 | 400×1650 | 530*940 | 250 | 25 |
| YLD-JK350 | 5.5-6.0 | 350×1650*4 cans | 530*940 | 350 | 50 |
| YLD-JK500 | 7.0-8.0 | 400×1650*4 cans | 530*940 | 500 | 50 |
| YLD-JKH75 | ≤1.0 | 250×1650 | 400*800 | 75 | 20 |
| YLD-JKH175 | 1.0-2.0 | 300×1650 | 530*940 | 175 | 20 |
| YLD-JKH350 | 2.0-3.0 | 400×1650 | 530*940 | 350 | 32 |
Jiangsu YLD Water Processing Equipment Co., Ltd. is a high-tech enterprise, specialized in the research, development, design, manufacture, installation, technical consultation and personnel training.
We mainly produce electronic scale removal, UV sterilization, filtration, softening and cyclone grit removal technology and equipment. With strong technical force and rich experience, our company strictly implements ISO9001 system in the plan and management. "High technology leads to market development" is our basic concept.
We have extensively cooperated with domestic key universities, research institutions and foreign professional manufacturers, such as DOW (Dow) Chemical Co., Ltd., HYDRANAUTICS (Hydranautics) Company, Company (a professional manufacturer of multi-stage pumps), MILTONROY (Milton) Corporation (a metering pump manufacturer), the US Soft Controller KINETICO and OSMONICS, We have also fully introduced advanced technology. Thus, our technology is always in the leading domestic level. Over the years, our company has specialized in a variety of water treatment equipment for food, beverage, pharmaceutical, hospital, precision electronic, fine chemical, electricity, painting and surface cleaning industries.
Our "LYD" high-quality products at reasonable prices and perfect after-sales services have won great trust from worldwide customers,
We are willing to cooperate with the friends from all over the world and creat fine future together!
