| Prod Model: |
JK-8120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
2-Way Full Range PRO Audio |
| Crossover: |
Asymmetric Internal Passive Crossover |
| Lf Component: |
190mm Magnet with Aluminum Frame |
| Hf Component: |
120mm Magnet |
| Size Options: |
10", 12" |
| Installing: |
Hanging, Pole Mount, Stand, Lying Down |
| Diaphragm: |
Paper |
| Capacitor: |
Solen |
| Clients' Logo: |
Acceptable |
| Warranty: |
3 Years |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Mono |
| Speaker Material: |
Wood |
| Application: |
Entertainment Venue |
| Certification: |
RoHS |
| THD: |
<0.005% |
| Monitor: |
Nun |
Product Description
Features:a. Compact design;
b. Impoted polyesterimide paint using little varnish technology;
c. Perfect voice restoreing performance.
1. Overview:

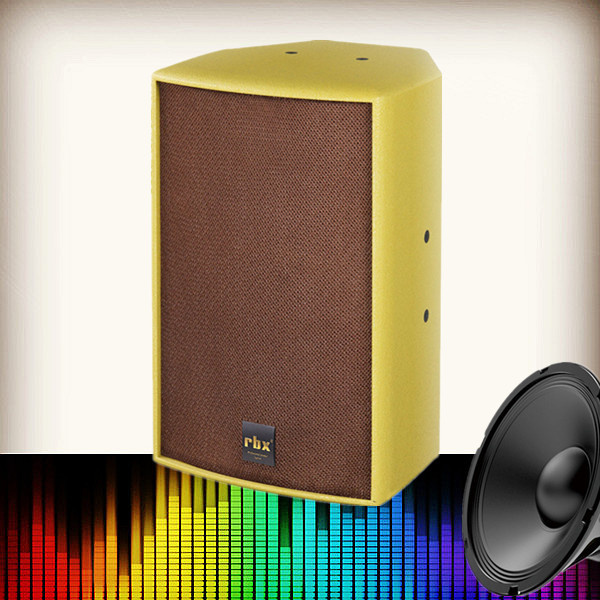

JK-8120 is a two-way full-range speaker designed specifically for high-end clubs. To create a compact polygonal design, we apply several sheets of imported multilayer birch plywood. The surface of it is painted with high-quality durable polyester coatings.
JK-8120 is equipped with a 12" LF precise driver and a 1" HF precise compression driver. When you use it, you will feel a natural sound, as it can restore your voice perfectly. Also, you can feel a clean, strong bass and a clear, melodious, high but not noisy treble, and a rich alto.
2. Application:
Night Clubs and etc.
3. Specification:| Model | JK-8120 12 inch 2-way full range 300W media speaker |
| Drivers | LF: 1×10"voice-coil: 3" |
| HF: 1×1"voice-coil: 1.7" |
| Frequency(±3dB) | 50HZ-18KHZ(±3dB) |
| Dispersion(-6dB) | Hor:90° × Vert:60° |
| Sensitivity(1m/1W) | LF: 98Db |
| Maximum SPL | 123dB Continuous/130dB Peak |
| Nominal Impedance | 8 Ohms |
| Input power | Rate:300W/Peak: 1200W |
| Recommend AMP | 500W to 1000W into 8 Ohms |
| Connectors | 2 × Speakon NL4MP |
| Dimensions | 620 × 365 × 385mm (H × W × D) |
| Master carton | 680 × 425 ×445 (H × W × D) |
| Net Weight | 21Kg (1piece/ctn) |
| Gross Weight | 23.5Kg |

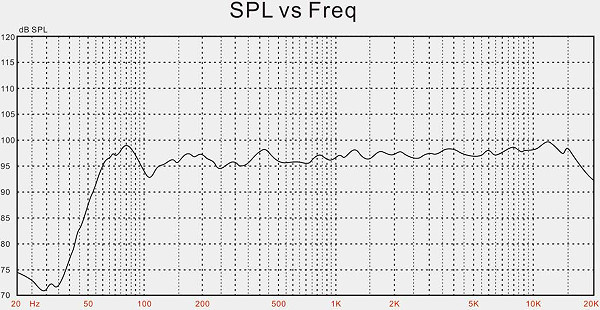

4. Frequency response:
5. Construction:| Physical | Polygonal |
| Enclosure | Imported multilayer birch plywood |
| Grille | Die-casting steel net with circular hole, black sponge inside. |
| Paint | Polyester coatings (whose color can be customized.) |
| Handing Position | M8 screw of installation holes (16 pcs) |
| Pole Mount | Bottom: Φ35mm support base |
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. Please kindly keep it away from dust and the strong magnetic field.
c. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.

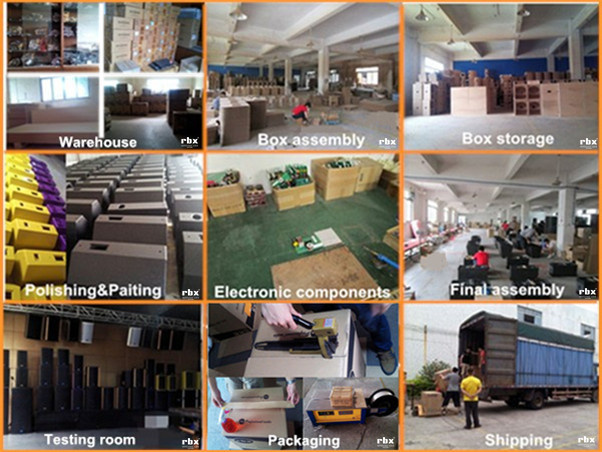

7. Company View:

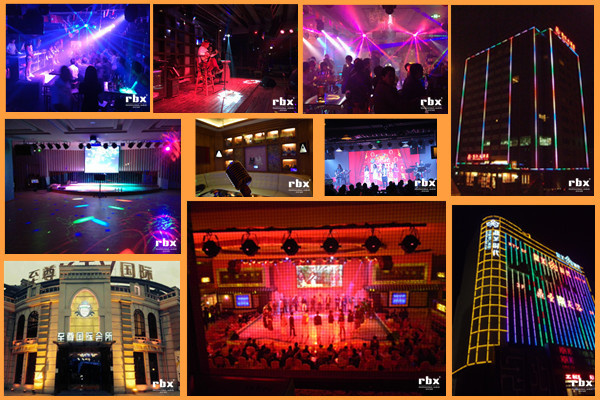

8. Our Projetcs:
Guangzhou Tengsheng Audio Equipment Co., Ltd. is located in Baiyun District, Guangzhou City, covers an area of 5, 000 square meters. Our company is closed to GUANGZHOU BAIYUN Airport, the transportation is convenient. We've been devoteing ourselves to the R&D, manufacturing and marketing of high-quality professional audio system.
During the passed years, We've owned a team of highly qualified engineers and sales. We've been always developing new products according to the market trends and the feedback from our clients, which gain much praise and trust. Besides products, we provide audio system solution also. We always take the pursuit of win-win situation between our clients and us.
Our company owns a serial of automated production equipments and quality management system basing on international standards, both of these help us to keep making progress. Excellent quality dates from pursuit of every aspect, and, customer satisfaction comes from sincere service. We'll listen to the voice of the world, and create perfect audio system.
