Jk-8110 Single 10 Inches 2-Way Professional Sound Audio

Jk-8110 Single 10 Inches 2-Way Professional Sound Audio
Price: US $ 200-400/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: JK-8110
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: 2-Way Full Range PRO Audio
Crossover: Asymmetric Internal Passive Crossover
Lf Component: 170mm Magnet with Aluminum Frame
Hf Component: 120mm Magnet
Size Options: 10", 12"
Installing: Hanging, Pole Mount, Stand, Lying Down
Diaphragm: Paper
Capacitor: Solen
Clients' Logo: Acceptable
Warranty: 3 Years
Noise: <95dB
Hi-Fi: Hi-Fi
Operation Mode: Wire / Remote Control
Speaker System: Mono
Speaker Material: Wood
Application: Entertainment Venue
Certification: RoHS
THD: <0.005%
Monitor: Nun

Product Description

Features:

a. Compact design;

b. Impoted polyesterimide paint using little varnish technology;

c. Perfect performance of voice restoration.


1. Overview:
JK-8110 is a two-way full-range speaker designed specifically for high-end clubs. To create a compact polygonal design, we apply several sheets of imported multilayer birch plywood. The surface of it is painted with high-quality durable polyester coatings.

JK-8110 is equipped with a 10" LF precise driver and a 1" HF precise compression driver. When you use it, you will feel a natural sound, as it can restore your voice perfectly. Also, you can feel a clean, strong bass and a clear, melodious, high but not noisy treble, and a rich alto.

2. Application:
Night Clubs and etc.


3. Specification:

ModelJK-8110 single 10 inches 2-way professional sound audio
DriversLF: 1×10"voice-coil: 2.5"
HF: 1×1"voice-coil: 1.35"
Frequency(±3dB)55HZ-18KHZ(±3dB)
Dispersion(-6dB)Hor:90° × Vert:50°
Sensitivity(1m/1W)LF: 97Db
Maximum SPL121dB Continuous/127dB Peak
Nominal Impedance8 Ohms
Input powerRate:200W/Peak: 800W
Recommend AMP600W to 1000W into 8 Ohms
Connectors2 × Speakon NL4MP
Dimensions510 × 320 × 340mm (H × W × D)
Master carton575 × 380 ×400 (H × W × D)
Net Weight17Kg (1piece/ctn)
Gross Weight19.5Kg

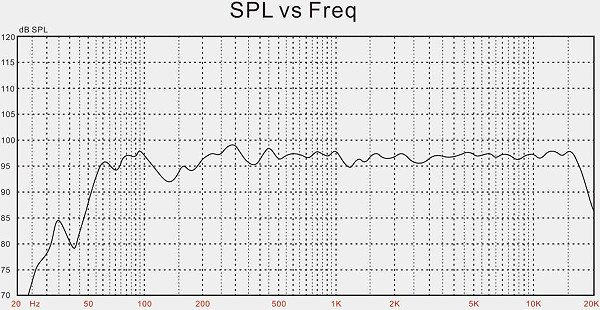

4. Frequency response:

5. Construction:

PhysicalPolygonal
EnclosureImported multilayer birch plywood
GrilleDie-casting steel net with circular hole, black sponge inside.
PaintPolyester coatings (whose color can be customized.)
Handing PositionM8 screw of installation holes (16 pcs)
Pole MountBottom: Φ35mm support base

6. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. Please kindly keep it away from dust and the strong magnetic field.
c. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.


7. Company View:
8. Our Projects:
Guangzhou Tengsheng Audio Equipment Co., Ltd. is located in Baiyun District, Guangzhou City, covers an area of 5, 000 square meters. Our company is closed to GUANGZHOU BAIYUN Airport, the transportation is convenient. We've been devoteing ourselves to the R&D, manufacturing and marketing of high-quality professional audio system.

During the passed years, We've owned a team of highly qualified engineers and sales. We've been always developing new products according to the market trends and the feedback from our clients, which gain much praise and trust. Besides products, we provide audio system solution also. We always take the pursuit of win-win situation between our clients and us.

Our company owns a serial of automated production equipments and quality management system basing on international standards, both of these help us to keep making progress. Excellent quality dates from pursuit of every aspect, and, customer satisfaction comes from sincere service. We'll listen to the voice of the world, and create perfect audio system.
