| Prod Model: |
JK-8110 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
2-Way Full Range PRO Audio |
| Crossover: |
Asymmetric Internal Passive Crossover |
| Lf Component: |
170mm Magnet with Aluminum Frame |
| Hf Component: |
120mm Magnet |
| Size Options: |
10", 12" |
| Installing: |
Hanging, Pole Mount, Stand, Lying Down |
| Diaphragm: |
Paper |
| Capacitor: |
Solen |
| Clients' Logo: |
Acceptable |
| Warranty: |
3 Years |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Mono |
| Speaker Material: |
Wood |
| Application: |
Entertainment Venue |
| Certification: |
RoHS |
| THD: |
<0.005% |
| Monitor: |
Nun |
Product Description
Features:
a. Compact design;
b. Impoted polyesterimide paint using little varnish technology;
c. Perfect performance of voice restoration.
1. Overview:

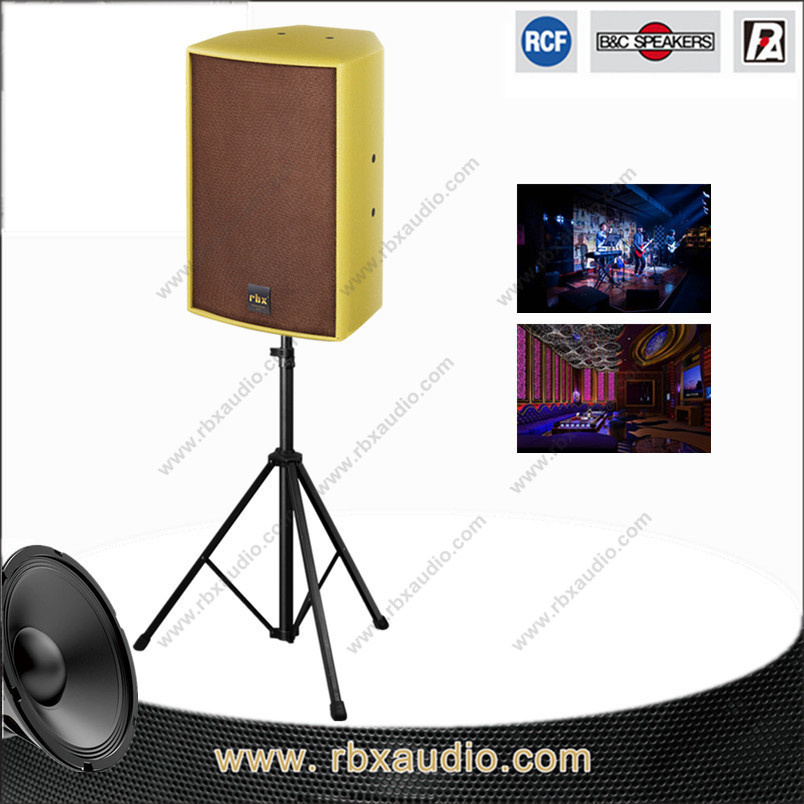

JK-8110 is a two-way full-range speaker designed specifically for high-end clubs. To create a compact polygonal design, we apply several sheets of imported multilayer birch plywood. The surface of it is painted with high-quality durable polyester coatings.
JK-8110 is equipped with a 10" LF precise driver and a 1" HF precise compression driver. When you use it, you will feel a natural sound, as it can restore your voice perfectly. Also, you can feel a clean, strong bass and a clear, melodious, high but not noisy treble, and a rich alto.
2. Application:
Night Clubs and etc.
3. Specification:
| Model | JJK-8110 8 ohm 200w db pa speaker audio |
| Drivers | LF: 1×10"voice-coil: 2.5" |
| HF: 1×1"voice-coil: 1.35" |
| Frequency(±3dB) | 55HZ-18KHZ(±3dB) |
| Dispersion(-6dB) | Hor:90° × Vert:50° |
| Sensitivity(1m/1W) | LF: 97Db |
| Maximum SPL | 121dB Continuous/127dB Peak |
| Nominal Impedance | 8 Ohms |
| Input power | Rate:200W/Peak: 800W |
| Recommend AMP | 600W to 1000W into 8 Ohms |
| Connectors | 2 × Speakon NL4MP |
| Dimensions | 510 × 320 × 340mm (H × W × D) |
| Master carton | 575 × 380 ×400 (H × W × D) |
| Net Weight | 17Kg (1piece/ctn) |
| Gross Weight | 19.5Kg |
4. Construction:
| Physical | Polygonal |
| Enclosure | Imported multilayer birch plywood |
| Grille | Die-casting steel net with circular hole, black sponge inside. |
| Paint | Polyester coatings (whose color can be customized.) |
| Handing Position | M8 screw of installation holes (16 pcs) |
| Pole Mount | Bottom: Φ35mm support base |
5. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. Please kindly keep it away from dust and the strong magnetic field.
c. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.
