| Prod Model: |
T9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Airflow: |
18000m3/H |
| Cooling Area: |
80-120m2 |
| Model: |
T9 |
| Brand: |
Jh |
| Cooling/Heating: |
Cooling Only |
| Certification: |
CE |
| Type: |
Floor Standing Air Conditioners |
| Capacity: |
27000-48000 BTU |
Product Description

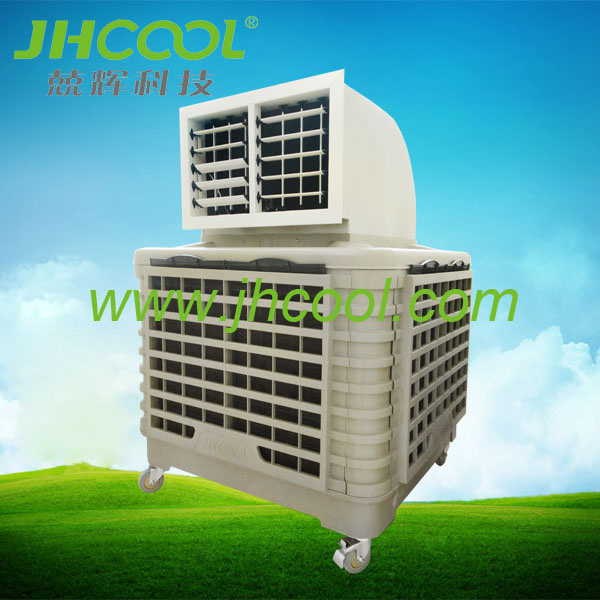

Factory air cooler
Dimension: 1100*1100*1580mm
Vent: 950*500mm
Water tank: 30L
Water use: 15-20L/H
Airflow: 18000cmh
Pressure: 180Pa
Cover area: 100-150M2
Noise: 73dB
Fan type: Axial
Power: 1.1KW
Loading quantity:
Assembled condition: 20PCS/40PCS per 20' GP/40' GP
Corrosion resistant cabinet, UV resistant, anti-deformation, stabilized, high strength structural polymer
Large airflow, light weight, low noise, aerofoil shaped axial fan using ABS and MPPO material
Moisture and tropic proof, variable speed motor, operates evenly and saves energy
Controlled open water distribution system, which enables water flow smoothly
High efficiency cooling pads with great evaporation and easily maintain.
Intelligent control system provides water alarm protection, automatic circuit breaker and self-cleaning, Sweden import thermostat, adjust temperature and humidity sensitively.
Comparison
Evaporative air cooler is not an air conditioner, as it does not use a compressor and Freon gas. We could not expect an Evaporative Cooler works as effectively as refrigerated air conditioner. However, compared with air conditioner the advantages of the Evaporative Air Cooler are:
Low purchasing cost
Low power consumption
Low installation cost
Low maintenance cost
Green, energy-saving, eco-friendly
Windows and doors can be kept open
Multifunctional: Air cooling, ventilation, humidification, purifier
Widely used in indoor and outdoor applications
|
Airflow(m3/h) |
18000 |
Pressure |
180 |
|
Power(w) |
1100 |
Fan type |
Axial |
|
Fan speed |
16(Inverter) |
Noise(dBA) |
≤73 |
|
Cover area(sqm) |
100-150 |
Water consumption(L/H) |
15-20 |
|
Power resource(V/Hz) |
1ph,220/50 |
Control type |
LCD+Remote |
|
Operating weight(kg) |
140 |
Dimension(mm) |
1160x1160x1760 |
|
Net weight(kg) |
90 |
Gross weight(kg) |
100 |
|
Vent size(mm) |
640x440 |
Load quantity(Full) |
18/40pcs(20'GP/40'HP) |
|
Swing |
Auto left/right;Manual up/down |
Water inlet |
Auto
|
