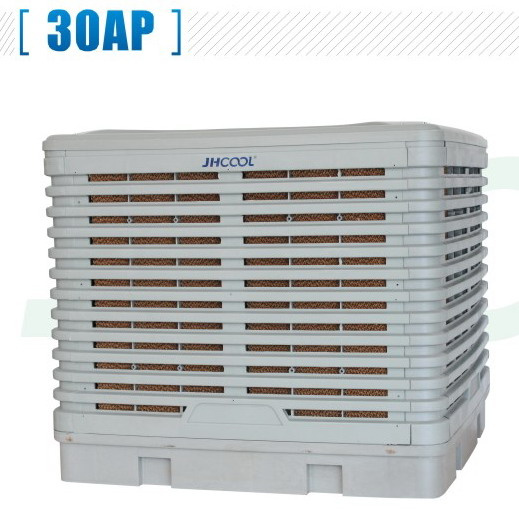

Jhcool Factory Air Conditioner (JH30AP-31D3)

Prod Model:	JH30AP-31D3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power(W):	3000
Airflow(CMH):	30000
Fan Type:	Axial
Discharge Type:	Down Discharge
Cover Area(Sqm):	200-250
Noise(Dba):	<80
Water Tank(L):	50
Water Consumption(L/H):	25-30
Dimension(Mm):	1360*1360*1240
Year:	2014
Certification:	CB
Condition:	New
Type:	Evaporative Air Cooler
Operating Voltage:	230 VAC
Mounting:	Wall/Window Mount

Product Description

Factory evaporative air conditioner cool 250m2 with 3kw only

Item: JH30AP1
Phase: 1pH/220V/50Hz
Speed: 1
Wall controller: LCD
Discharge type: Down/Side/Top are available
Dimension: 1350*1350*1200mm
Vent size: 900*900mm
Packed size (SKD): 1050x1050x460 + 900x760x640
Load quantity (SKD): 16/32PCS per 20'/40'HQ
Airflow: 30000 CMH
Pressure: 280PA
Cooling area: 200~250 m2
Power: 3.0kw
Noise: Less than 78dB
Water tank: 60L
Water consumption: 25-30 L/H
Net weight: 115kg
Gross weight: 130kg
Operating weight: 150kg
Cabinet material: 75% PP + 15%PE +10% additive

JHCOOL evaporative air cooler features:
(1) Energy efficient
(2) Cleaner and healthier
(3) Easier and less expensive to install
(4) Environmentally friendly
(5) Simple to maintain
(6) Productivity enhancing

1. What's the principle of evaporative cooling?

JHCOOL Evaporative cooling works on the principle of heat absorption by moisture evaporation. The process happens whenever dry air passes over water, some of the water will be absorbed by the air. This happens because the temperature and the vapor pressure of the water and the air attempt to equalize. Liquid water molecules become gas in the dry air, a process that uses energy to change its physical state. Heat moves from the higher temperature of the air to the lower temperature of the water, resulting in cooler air.

2. How many degree can take the green house down?

That depends on the temperature and humidity of the ambient air. Referring to the "JHCOOL Evaporative cooler supply temperature chart (80 or 90% efficiency)" you will get the answer for specific ambient conditions.

3. Are JHCOOL evaporative coolers good for your health?

They are very good for your health. They clean the air, they use 100% fresh air, they do not dry the air out like refrigerated machines, they maintain a very healthy level of moisture which is good, not only for people, but also for furniture, flowers, books etc., and they do not create static electricity in the floor coverings. Many asthma sufferers get great relief by using evaporative air coolers.

4. Where to use JHCOOL evaporative air coolers?

JHCOOL evaporative air cooler is a cooling system, cool air by water evaporation, widely be used in places where traditional air-conditioning is unavailable.

For example:
(1) Textile, garment, shoes, electric manufacturing factory, with very hot temperature inside;
(2) Outdoor restaurant, outdoor coffee bar, garden, outdoor roadshow, balcony, open air market;
(3) Places want to save energy: Living room, office, workshop, gyms;
(4) Places need spot cooling only: Warehouse keepers table, car repair shop, big shopping mall, open air market, etc.
