| Prod Model: |
JGW-1103C04 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Note: |
Network Video WiFi Alarm, for All Anti-Theft Areas |
| Video: |
Videophone, Network Camera |
| P2p: |
P2p, Plug to Easyly Use |
| Integrate: |
Video Call, Local&Remote Monitoring |
| USD/TF: |
with USB and TF Card Slot |
| Support: |
Support for Local Storage & Online Upgrade |
| Code: |
Learning Code Automatically |
| Function: |
Robot Function, More Function |
| Type: |
Home Alarm |
| Application: |
Indoor |
| Signal Transmission: |
Wireless Alarm |
| Working Mode: |
Active |
| Sensor Type: |
Video Motion Alarm |
| Working Principle: |
Electro-Optical Type |
| Usage: |
Fire |
Product Description

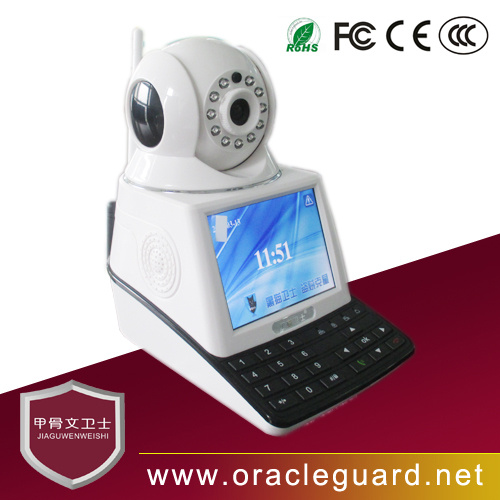

JGW-1103C04 wifi automatically burglar network camera
Features & Functions:
1, New generation-eRobot is a multifunctional product including video call function, remote monitor function, local recording function and wireless alarm function, which can satisfies your different needs;
2, It introduces advanced Cloudlink P2P network transmission technology, so that it can switch bitrates intelligently and adapt to any network environment.;
3, Built-in 3C smart card, it is so easy to realize remote monitor and video call;
4, It introduces 3Dvoice sound engine technology, Professional Speech Processing, which can thoroughly improve the quality of network sound call.;
5, Eight Arming area, 64 groups can simultaneously access the alarm device (Infrared sensor, door sensor, smoke, remote control, etc. ), More powerful, easier operation;
6, It has intuitive and user-friendly operation interface, you can start it without training.
7, It can support these two APP programs---IOS and Android, through APP program, you can care family anytime and anywhere.
Functions:
3C smart card is a cloud communication intelligent card that we specially design for eRobot. It can transmit bulky data among different LANS. Through 3C smart card, you don't need domain name or set port in router, you can easily realize remote monitor and video call, It won't charge you any fees except flows generated by network.
After install a free APP offered by us in IOS or Andriod device, then start APP program, you can directly dial eRobot's 3C number to make free video call with your family or friend.
Through APP program to remote control eRobot, you also can know everything happen at home, and care family always.
ERobot can learn code to match the wireless detectors such as smoke detector, remote control, and then construct a wireless alarm system.
If no one at home, eRobot can help to monitor your house. If someone break into your house or accidently catch fire, eRobot will alarm immediately, Pushed to your phone client software, at the same time it will captures pictures and send the pictures to you by e-mail, so that you can know what happen at home.
ERobot can make continual recording in 24 hours, it can record everything happen at home, it won't miss any wonderful pictures.
If we launch new software version, eRobot will update online, so that you can try the newest function.
Why choose us?
1. Professional manufacturer in producing alarm systems & video surveillance, ect. For 15 years.
2. Factory direct sales with competitive price but high quality
3. All the other accessories can be added optionally
4. Pass many certifications, e. G.: CE&FCC, etc.
5. Quick response
6. Small MOQ
7. Strong OEM/ODM ability
8.10 minutes to airport
Welcome to visit our factory.
Looking forward to receive your inquiry and our nice cooperation in near future!
Pease contact us by following information:
Tel: +86-0755-27757254 Cell phone: +86-13725517431 Fax: +86-0755-27757585
Skype2: Sales02 oracle
|
Technical parameter |
|
System |
Main processor |
High Performance Embedded Microprocessor Hi3507 |
|
|
Operating system |
Embedded Linux OS |
|
Video |
Image sensor |
30W pixels CMOS |
|
|
Video Compression Format |
H.264 |
|
|
Signal System |
PAL/NTSC |
|
|
Video Resolution |
VGA:640*480 |
|
|
Recording Speed |
VGA@ 25 fps or 30 fps |
|
|
Motion Detection |
YES |
|
|
Minimum illumination |
0LUX/F1.2 |
|
|
Video call |
YES |
|
|
IR |
YES |
|
|
Video output |
BT656/3.5 inch TFT LCD |
|
Audio |
Compression |
G.711A |
|
|
Audio Input |
Built-in microphone or an external headset |
|
|
Audio Output |
Built-in speakers or an external headset |
|
Recording Manager |
Recording Mode |
Manual/Timer/Motion / Schedule |
|
|
Video Storage |
USB,Micro SD |
|
Alarm |
Alarm Input |
Learning wireless sensor alarm input |
|
|
Alarm triggered |
Speakers alarm,Alarm recording,Capture,Email |
|
Others |
Ethernet Interface |
RJ45 100M / 1000M Base-TX |
|
|
USB |
1* USB 2.0 |
|
|
TF |
1*TF |
|
|
Wifi |
YES,802.11 b/g/n |
|
|
Headset |
One 3.5 headphone jack |
|
|
Power Supply |
DC 5V 2A |
|
|
PTZ Control |
Built-in horizontal and vertical control motor |
|
|
Power Consumption |
2W |
|
|
Working Temperature |
0°C-+55°C |
|
|
Working Humidity |
10%-90% |
|
|
Dimensions (mm) |
150*95*160mm |
|
|
Weight |
500g |
|
|
Installation |
Rack mount |
