| Prod Model: |
VX-932LA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
12" Woofer |
| System: |
2-Way 1X12" Passive Line Array |
| Components: |
Lf: 1X12" Hf: 3X1.4" |
| Cabinet Material: |
Plywood Cabinet |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker Material: |
Wood |
| Application: |
Home |
| Certification: |
CE |
| THD: |
<0.005% |
| Speaker System: |
Professional Performance |

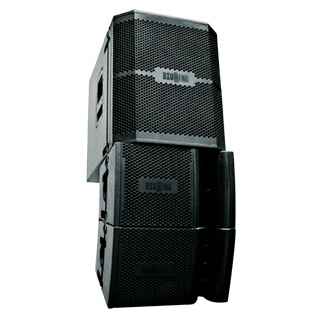

Product Description
VX932LA
Pro audio, Speaker systems, audio speaker, sound, professional audio, stereo speaker, professional audio, line array system, PA loudspeaker, PA speaker, Acoustics, loudspeaker China, Acoustics, Line array China.
VX series are birch plywood finish.
NOVA introduces the CA series compact line array system for large and medium sound reinforcement applications.
Designed for use in theaters, houses of worship and performing arts centers, the system provides audio professionals with a lightweight, high output array that offers exceptional audio fidelity.
VX932LA Specification:
System Type: 12" two way, line array loudspeaker system
Frequency response: 55Hz-19.5KHz(-10dB)
70Hz-19KHz(+/-3dB)
Coverage Pattern: 100x15 norminal (Horizontal x Vertical)
Crossover Model: Bi-amp/passive, externally switchable
Crossover Frequency: 1.3KHz
Power Rating ( Continous/Profram/Peak): Passive: 400W/800W/1600W
Bi-amp: LF: 300W/600W/1200W
Bi-amp: HF: 100W/200W/300W
System Maximum SPL: 133dB SPL peak (passive)
LF: 130dB
HF: 137dB
System Sensitivity (1w@1m): 101dB SPL (passive mode)
LF: 99dB
HF: 111dB
LF Driver: 1x350mm (! 2") woofer with neodymium magnet
HF Driver: 3 x 25.4mm (1") voice coil, neodymium magnet compression driver units
Nominal Impedance: Passive: 8Ohm
Bi-amp LF: 8Ohm
Bi-amp HF: 8Ohm
Enclosure: 18mm. 11 ply plywood
Suspension/Mounting: Suspension requires optional VX line array frame kit /10 eyebolts
Finish: Black Dural Flex Finish
Grill: Power coated
| Specification |
|
|
| Model | VR-932LA | VR-918S |
| System | 2-way line array system | Subwoofer |
| Frequency response | 55Hz-20KHz (±3dB) | 30Hz-220Hz (±3dB) |
| LF driver | 1 x (12 inch) 75mm voice coil | 1 x (18 inch)100mm voice coil |
| HF driver | 3 x (1.4 inch) 34mm voice coil |
|
| Normal Impedance | 8Ohm | 8Ohm |
| Program power | 400W | 600W |
| Peak power | 1600W | 2400W |
| System sensitivity | 101dB | 98dB |
| MAX SPL | 133dB | 130dB |
| Horizontal (-6dB) | 100° |
|
| Vertical (-6dB) | 15° |
|
| Dimension (WxDxH) | 350x595x375mm | 508x597x749mm |
| Finish | Textured black | Textured black |
| Grill | Black perforated steel | Black perforated steel |
| Suspension system | proprietary rigging system | proprietary rigging system |
| Net weight | 22kg | 38kg |
Nova specializes in manufacturing PRO audio which including line array, professional loudspeakers & KTV, power amplifiers, mixers consoles, signal processors including equalizers, limiters/compressors, exciters, crossovers, power sequence controllers etc. To meet different customer's market, we also add producion line for woofer speakers, subwoofer speakers and flightcase for sound equipmentand professional lights and LED monitor ect.
With experienced & strong R&D department and strictly quality control managment and Satisfactory market service system and reasonable price and good quality, Our price had got high reputation in many ares.
OEM/ODM also available.
Nova will offer what you want.
Please join in NOVA family!
