| Prod Model: |
VRX-900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Birch Plywood |
| Model No: |
Vrx-900 |
| Lf: |
2262HPL/2268HPL Neodymium Woofer |
| Grille: |
Punched |
| Amplifier: |
with Inside Amplifier |
| Package: |
Carton or Flight Case |
| Chargeable: |
Chargeable |
| Warranty Time: |
12 Months |
| Compatible Product: |
Universal |
| OEM: |
Yes |
| Amplification Type: |
Passive |
| Speaker Material: |
Wood |
| Usage: |
Home Theatre System |
| Adjusting Method: |
Touch-Control |
| Sound Channel: |
7.1 |
| Structure: |
Bookshelf Speaker |
| Function: |
WIFI |
| SNR: |
81-90dB |
Product Description

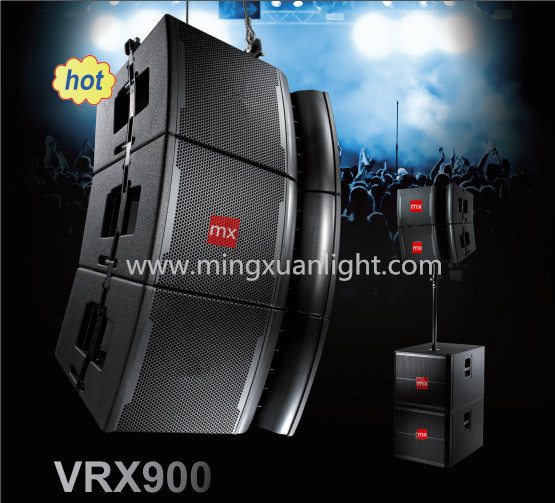

Jbl Style Speaker Vrx932la Passive/Active Line Array Professional AudioSpecification VRX900 style Line Array Loudspeaker
12 in. Two-Way Line Array Loudspeaker System2 Way, 12 Inch Differential Drive WooferBlack line arrayPassive line arrayVRX900 Line array/ pro audio/loudspeaker12 in. Two-Way Line Array LoudspeakerFull frequency line array speakersHigh power line array systemLine arrayLight weight line arrayNeodymium speaker line arrayPassive pa speakersThe VRX932LA is a light-weight (46 lb / 21 kg) compact 12" two-way line array speaker system designed for use in arrays of up to six units.This model pro audio is one of best seller speakers of us, it's beautiful appearance and pleasant voice, combined the suspension kit, can be made the sound play the perfect effect. It's the pro loudspeakers which popular to 99%costomers. Are you waiting for what? Don't hesitate to try the sound, welcome to our company to feel the real sound. It's the best choice of line array system.
| Vrx900 Line Array Speaker |
| Specifications : |
| Power Rating | 800 W / 1600 W / 3200 W |
| Frequency Range | 57 Hz - 20 kHz |
| (-10 dB) |
| Dimensions | 343 mm x 597 mm x 376 mm |
| (H x W x D) | (13.5 in x 23.5 in x 14.8 in) |
| Frequency Response | 75 Hz - 20 Hz |
| (+/-3db) |
| Coverage Pattern | 100 x 15 nominal |
| Crossover Modes | Bi-amp / passive, externally switchable |
| Crossover Frequency | 132 dB SPL peak 1.2 kHz |
| System Maximum SPL | Passive: 130 dB SPL peak , Bi-amp LF: 130 dB SPL peak |
| System Sensitivity (1w @ 1m | Passive: 95 dB SPL |
| Bi-amp LF: 95 dB SPL |
| Bi-amp HF: 114 dB SPL |
| LF Driver | 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with |
| neodymium magnet, dual voice-coils, and dual magnetic gaps. |
| Nominal Impedance | Passive: 8 ohm |
| Bi-amp LF: 8 ohm |
| Bi-amp HF: 8 ohm |
| Enclosure | 18 mm, 11-ply birch plywood |
| Suspension / Mounting | Optional VRX932LA-AF line array frame kit |
| Finish | Black DuraFlex™ finish |
| Grille | Power coated, black, 16-guage perforated steel with with acoustically transparent foam |
| Input Connectors | Speakon® NL-4 (x2) |
| Net Weight | 21 kg (46 lb)
|
Features:1. JBLstyle exclusive neodymium magnet Differential Drive? Woofer for high-power capacity and light-weight.
2. VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in 3. JBL Professional compression driver design.
4. Constant Curvature waveguide for unprecedented array coherence.
5. Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or tripod stand.
6. Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
7. Array Configuration Selector permits "array shading" in passive mode.
Suitable for:
VRX932 line array speaker especially used for following place:
1. Smaller venues
2. Small to medium sound reinforcement projects.Application:
A. Music playback and sound reinforcement in MID-size venues
B. Entertainers, corporate A/V professionals and sound system hire companies
C. Permanent Installation
Revelant Collocation:
1.VRX918SP active subwoofer
2.VRX-AF suspension kit---Used for hanging line array system
3. VRX915M ----15" Stage Monitor
----Here we promise:Quality and reputation is first.Service is best.Delivery on time.Any question about JBL VXR825 Style Professional SpeakerWelcome for details! ! ! We're glad to service you.MX are committed to bring you the best speakers and amplifiers at the best possible price.MX sell directly to you at factory prices. NO MIDDLE MEN.MX will stick by you and won't let you down.
