| Prod Model: |
VRX932LAP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Active |
| Model No: |
Vrx-932 |
| Lf: |
1xjbl2262HPL Neodymium Woofer |
| Grille: |
Punched |
| Amplifier: |
with Inside Amplifier |
| Package: |
Carton or Flight Case |
| Hf: |
3xjbl2408h Neodymium Tweeter |
| Warranty Time: |
12 Months |
| Compatible Product: |
Universal |
| OEM: |
Yes |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
5.1 Channel |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
CCC |
| Monitor: |
LCD Screen |
| THD: |
<0.005% |
Product Description

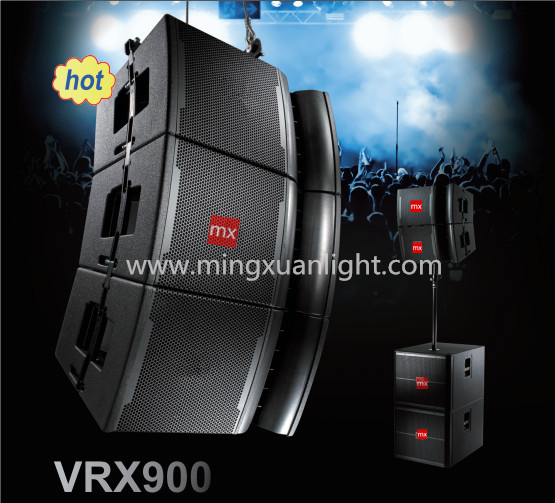

JBL style pro sound audio line array systemSpecification 12 in. Two-Way Powered Line Array Loudspeaker System
powered, lightweight, compact 12" two-way line-array speaker system
12" line array system
Light weight active line array
Amplified line array
Birch plywood line array speaker

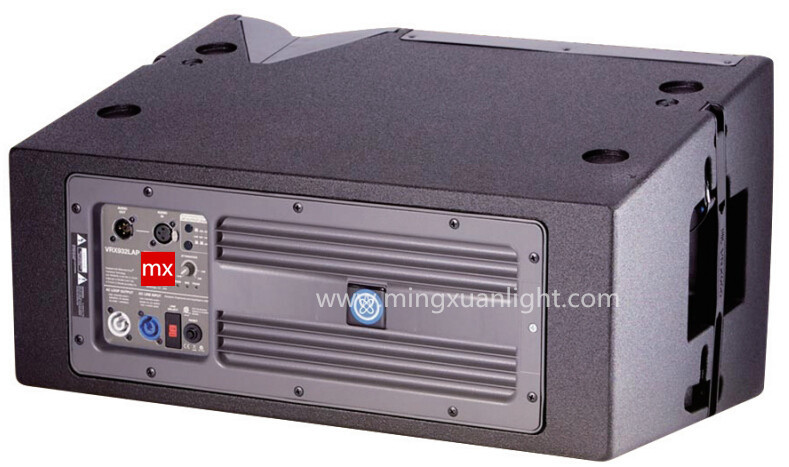

The VRX932LP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.
| VRX932LAP Active line array system |
| Model | VRX932LP | VRX918SP |
| System type: | 12 inch, powered two way,
line-array speaker | 18 inch, powered bass
-reflex subwoofer |
| Frequency Range (-10 dB): | 57 Hz - 20 kHz | 31 Hz - 220 Hz |
| Frequency Response (±3 dB): | 75 Hz - 20 kHz | 34 Hz - 220 Hz |
| Coverage pattern: | 100° x 15° nominal
(horizontal x vertical) | / |
| Maximum System SPL1: | 136 dB | 126 dB |
| Components: | LF: 2262HPL;
HF: 3x 2408H (1.5 in voice coil) | LF: 1x 2268HPL |
| Amplifier: | 1750W Peak, 875W Continuous | 1500W Peak, 800W Continuous |
| Dimensions (H x W x D): | 349 mm x 597 mm x 444 mm
13.75 in x 23.5 in x 17.5 in | 508 mm x 597 mm x 749 mm
20.0 in x 23.5 in x 29.5 in |
| Weight: | 24 kg (52 lb) | 40 kg (89 lb) |
2. VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in 3. JBL Professional compression driver design.
4. Constant Curvature waveguide for unprecedented array coherence.
5. Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or tripod stand.
6. Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
7. Array Configuration Selector permits "array shading" in passive mode.
Suitable for:
VRX932 line array speaker especially used for following place:
1. Smaller venues
2. Small to medium sound reinforcement projects.Application:
A. Music playback and sound reinforcement in MID-size venues
B. Entertainers, corporate A/V professionals and sound system hire companies
C. Permanent Installation
Revelant Collocation:
1.VRX918SP active subwoofer
2.VRX-AF suspension kit---Used for hanging line array system
3. VRX915M ----15" Stage Monitor
----Here we promise:Quality and reputation is first.Service is best.Delivery on time.Any question about JBL VXR825 Style Professional SpeakerWelcome for details! ! ! We're glad to service you.MX are committed to bring you the best speakers and amplifiers at the best possible price.MX sell directly to you at factory prices. NO MIDDLE MEN.MX will stick by you and won't let you down.
