| Prod Model: |
YS-932LAP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Birch Plywood |
| Model No: |
Vrx932lap / Vrx918sp |
| Lf: |
2262HPL/2268HPL Neodymium Woofer |
| Grille: |
Punched |
| Amplifier: |
with Inside Amplifier |
| Package: |
Carton or Flight Case |
| Chargeable: |
Chargeable |
| Warranty Time: |
12 Months |
| Compatible Product: |
Universal |
| OEM: |
Yes |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
5.1 Channel |
| Application: |
Commercial |
| Certification: |
CCC |
| Monitor: |
LCD Screen |
| THD: |
0.005%-0.01% |
| Speaker Material: |
Wood and Plastic |
Product Description

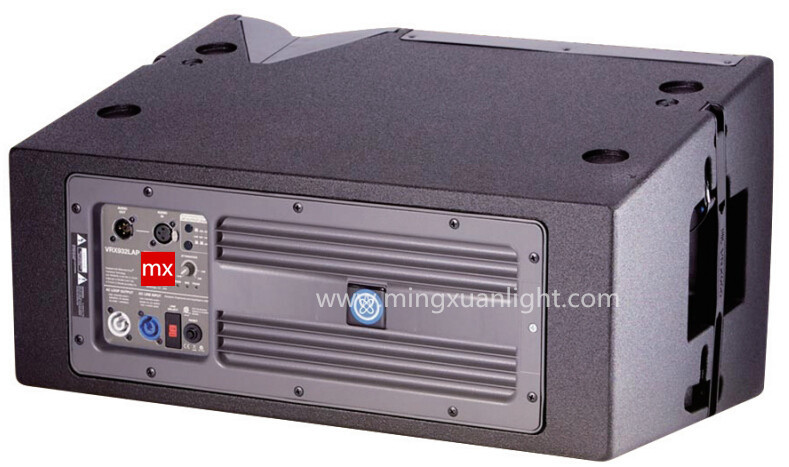

JBL 12'' way loud speaker system power sound price(YS-932LAP)
Jbl VRX825 Style 2-Way 12'' Speaker
Dual 12" Two-Way, Bass-Reflex
Dual 12" two-way speaker
pro audio
audio speaker
pro audio loudspeaker
A dual 12" two-way speaker designed for maximum impact, portability and ease of use. With a wide frequency range and broad 90 degree by 50 degree coverage angles, this speaker is ideal for bands or DJ's as their primary PA, use as a side-fill on a concert stage, or as an install speaker in a dance club or performance venue.
Specification
System Type: 12" two way, line array loudspeaker system
Frequency response: 55Hz-19.5KHz(-10dB)
70Hz-19KHz(+/-3dB)
Coverage Pattern: 100x15 norminal (Horizontal x Vertical)
Crossover Model: Bi-amp/passive, externally switchable
Crossover Frequency: 1.3KHz
Power Rating ( Continous/Profram/Peak): Passive: 550W/1100W/2200W
Bi-amp: LF: 400W/800W/1600W
Bi-amp: HF: 150W/300W/450W
System Maximum SPL: 133dB SPL peak (passive)
LF: 130dB
HF: 137dB
System Sensitivity (1w@1m): 101dB SPL (passive mode)
LF: 99dB
HF: 111dB
LF Driver: 1x350mm (! 2") woofer with neodymium magnet
HF Driver: 3 x 25.4mm (1") voice coil, neodymium magnet compression driver units
Nominal Impedance: Passive: 8Ohm
Bi-amp LF: 8Ohm
Bi-amp HF: 8Ohm
Enclosure: 18mm. 11 ply plywood
Suspension/Mounting: Suspension requires optional VX line array frame kit /10 eyebolts
Finish: Black Dural Flex Finish
Grill: Power coated,
Features:
--Compact and very high-power.
--Dual (12") Vented Gap Cooling™ Low-frequency drivers for very high acoustic output.
--102 mm (4 in) voice-coil neodymium compression driver for high-power capacity and very light-weight
--90° X 50° Coverage.
--Bi-amplified or full-range passive operation.
--Twelve M10 suspension points may be used with optional M10 eyebolts.
--Rugged DuraFlex™ Coated enclosures sized to be truck pack friendly.
--14-Gauge steel grille lined with acoustically transparent cloth.
Application:
A. Music playback and sound reinforcement in MID-size venues
B. Entertainers, corporate A/V professionals and sound system hire companies
C. Permanent Installation
Revelant Collocation:
1.VRX918SP active subwoofer
2.VRX-AF suspension kit---Used for hanging line array system
3. VRX915M ----15" Stage Monitor
----Here we promise:
Quality and reputation is first.
Service is best.
Delivery on time.
Any question about JBL VXR825 Style Professional Speaker
Welcome for details! ! ! We're glad to service you.
MX are committed to bring you the best speakers and amplifiers at the best possible price.
MX sell directly to you at factory prices. NO MIDDLE MEN.
MX will stick by you and won't let you down.
VRX932LA |
| Model | VRX932LAP | VRX918SP |
| System type: | 12 inch, powered two way,
line-array speaker | 18 inch, powered bass
-reflex subwoofer |
| Frequency Range (-10 dB): | 57 Hz - 20 kHz | 31 Hz - 220 Hz |
| Frequency Response (±3 dB): | 75 Hz - 20 kHz | 34 Hz - 220 Hz |
| Coverage pattern: | 100° x 15° nominal
(horizontal x vertical) | / |
| Maximum System SPL1: | 136 dB | 126 dB |
| Components: | LF: 2262HPL;
HF: 3x 2408H (1.5 in voice coil) | LF: 1x 2268HPL |
| Amplifier: | 1750W Peak, 875W Continuous | 1500W Peak, 800W Continuous |
| Dimensions (H x W x D): | 349 mm x 597 mm x 444 mm
13.75 in x 23.5 in x 17.5 in | 508 mm x 597 mm x 749 mm
20.0 in x 23.5 in x 29.5 in |
| Weight: | 24 kg (52 lb) |
40 kg (89 lb
|
