| Prod Model: |
J0145YL-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Condition: |
New |
| Type: |
Piston |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Copper |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
Product Description
Voltage application from 220 to 240V

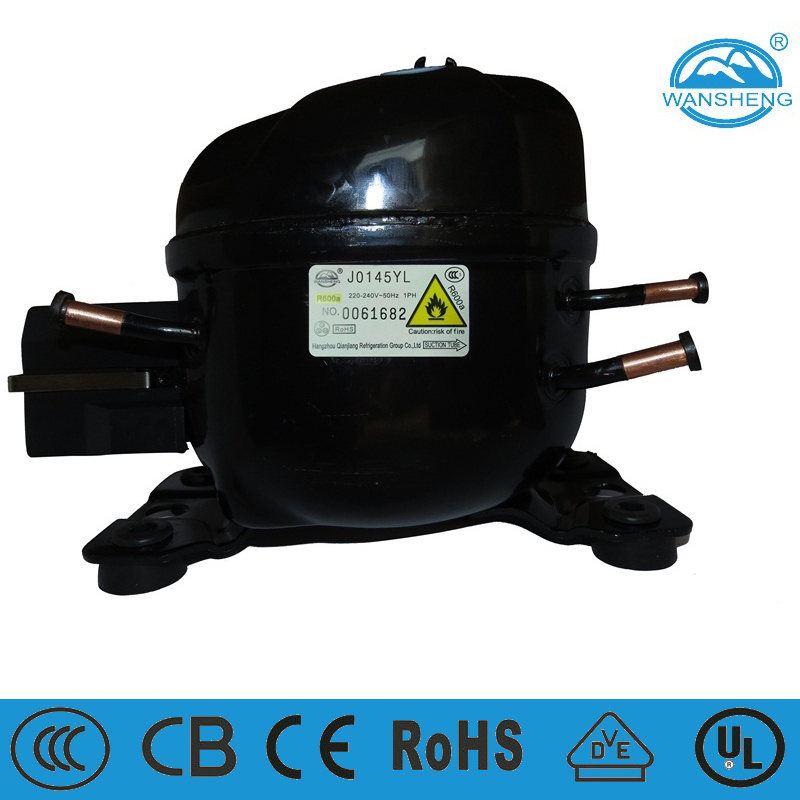

J Series J0145YL is R600a refrigerant compressor
Application in refrigerator, freezer, liquor cabinet, display cabinet and other medium-sized refrigeration equipments.
LBP compressor
Reliable starting performance
High efficiency & reliability
Low sound & vibration
RSIR Motor
The height of J0145YL compressor is 179MM.
Several general requirements as below
Compressor should be stored in a dry and drafty place.
Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.
Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.
The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.
Match the proper evaporating temperatures according to the low, middle and high back pressure requirements. Pay attention to the admitted ranges of voltage and frequency for the different models.
J0145YL is our new series compressor
OEM is welcome
Good service after sale
Starting relay is PTC
Frequency only for 50HZ
| R600a WANSHENG Low Back Pressure(LBP) Compressor |
|
|
| Wansheng R600a Low Back Pressure(LBP) compressor | Test Conditions | Evap. Temp.: 7.2°C |
|
| Cond. Temp.: 54.4°C |
|
|
|
|
|
| Amb. Temp.: 32.2°C |
|
| Suction. Temp.: 35°C |
|
|
|
|
|
| Subcooling Temp.: 46.1°C |
|
| LBP ASHRAE |
|
|
|
|
|
| Model | Power Supply | Displacement (cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type | Capacitor (μF) | Starting Relay | Cooling Type | Packing (Pcs/pallet) | 1×20'FCL (pcs) |
| J series |
|
|
| J0145YL | 220-240V/50Hz | 8.5 | 145 | 111.5 | 2/13 | 1.3 | RSIR | / | PTC | S | 100 | 2000 |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
