| Prod Model: |
ISO Topaz512 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
RFID Card |
| Structure: |
Super Smart Card |
| Function: |
Identification |
| Material: |
PVC |

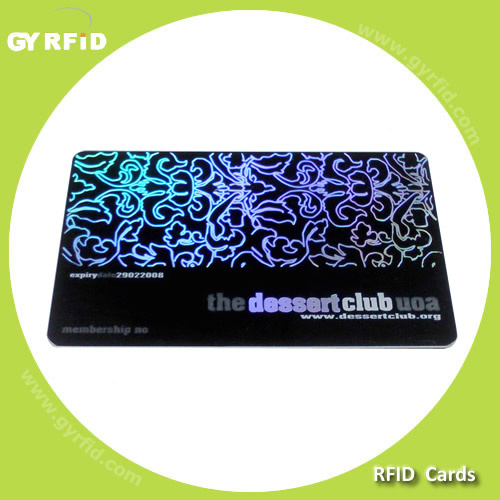

Product Description
Features:
Dimensions: CR80 85.60 x 53.98mm
Thickness: 0.84mm
Material: PVC, PET
Card Surface: Matte/ gloss finish
Housing: Lamination
Personalization Support:
Offset Printing with CMYK or Pantone colors/ Silk-screen printing with metallic, sliver effect/ Magnetic Stripe HiCo2750, HiCo4000 or LoCo300/ Serial Number or UID number printing/ Signature Panel/ Barcode printing/ Photo personalization/ Chip encoding/ Hologram/ UV printing / Laser Logo / Laser Serial Number
Application: Ticketing/ Automotive immobilizer / Access control / Industrial automation / Manufacturing automation / Prepayment
Chip model: Topaz512 (BCM20203T512)
Read/Write function: Read/Write
Protocol: ISO14443A
Operating Frequency: 13.56Mhz
Memory:
2 bytes of metal mask product identification header ROM
7 bytes of UID number
480 bytes of user read/write memory
User read/write memory arranged as 60 blocks of 8 bytes
Each 8-byte user read/write block is individually lockable by RFID command
64 bits (8 bytes) of One Time Programmable (OTP) bit area
OTP bits can be set both individually or as multiple bits together in one command
GyRFID is a a leading supplier of smart cards and RFID tags products for global System Integrators and distributors. It offers a wide range of products embedded with contact chip and contactless chip (LF, HF, UHF), which encapsulated into variety shapes like ISO Card, keyfob, wristband, disc tag, laundry tag. The products are widely applied in access control, payment system, inventory control, asset tracking, industrial managements. GyRFID also welcome OEM service and personalization to create value for the sponsors.
