| Prod Model: |
NFC Card |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Identification, Payment, Encrypt/Decrypt, Information |
| Material: |
PVC |
| Frequency: |
Ultrahigh Frequency |
| Keyword: |
UHF RFID Silicone Bracelets |
Product Description

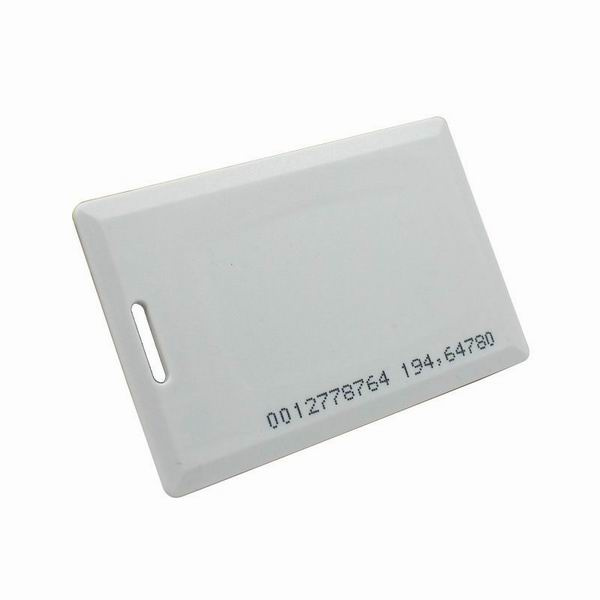

ISO 14443A 13.56MHz NFC card/NFC Card, ntag203 nfc label/NFC Smart Posters tag
13.56MHz NFC PVC Card for Business cards
1. Can be printed with QR code, member number, barcode and other unique data.
2. ISO14443A and ISO15693 chips available, more options in LF, HF and UHF.
3. Standard size as a credit card, more crafts available, such as gold stamping, UV spot and so on.
4. Can be locked for preventing encoded data changed.
13.56mhz NFC PVC Card for Business cards
|
Physical Features |
Material |
PVC/PET |
Physical type |
Printed NFC Card |
Common Dimensions(mm) |
Round |
30, 50, 38 and ask |
Rectangle Round Corner |
85.5*54*0.84 and ask |
Rectangle Right-angle |
35*35, 55*50, 55*30 and ask |
Printing |
Full Color Printed as custom artwork |
Technical Specifications |
Frequency |
13.56Mhz |
Agreements |
ISO14443A |
Common Chips |
NXP NTAG203 (Engineer recommended) |
FREE ENGINEER ADVICES
IF CONFUSED |
Mifare Ultralight |
Mifare classic 1k (Mifare S50) |
Mifare Std 4k |
Mifare DESFire 4k |
FM11R08(Mifare 1k compatible) |
Reading distance |
2~6 cm |
Rewriting Protection |
Read-Only or Rewritable as requested |
UID |
Hex or Decimal |
Applications |
Advertisements |
Smart Posters |
NFC Business Cards, etc. |
Mobile Payment |
e-ticket |
Membership value storage card, etc. |
Access Control |
Library, office |
Apartment door management, etc. |
Other filed |
Book management, dry washing, etc. |
NXP NFC Chips Guide
|
Mifare 1K |
Mifare Ultralight |
Mifare Ultralight C |
NTAG203 |
Available Memory |
752 Bytes |
48 bytes |
148 bytes |
144 bytes |
URL Length |
256 characters |
41 characters |
132 characters |
132 characters |
Text Length |
709 characters |
39 characters |
130 characters |
130 characters |
NFC Type |
Classic |
Type 2 |
Type 2 |
Type 2 |
Data Examples |
Full contact information |
Short URL, phone number, piece of text |
Long URL, smart poster, short contact( i. e. name and phone number) |
Long URL, smart poster, short contact( i. e. name and phone number) |
Performance |
Slow, due to older chip design and large data size |
Good, fast chip and low data amount results in a quick read time |
Not great, the built in encryption slows down the read time. |
Awesome. Latest chip and antenna design and low data size results in quick read time |
Lockable |
Technically not, but tag locking available |
Yes |
Yes |
Yes |
Formatting |
Blank, can be NDEF formatted |
Blank, can be NDEF formatted |
Blank, can be NDEF formatt |
NDEF formatted |
Cost |
Expensive |
Cheap |
Cheap |
Cheap |
Engineer Advices |
Only use this chip if you need the additional data storage |
OK, if you only need minimal data storage. IF you are going to use NDEF, then NTAG203 would be better. |
Similar to the NTAG203, but performance is not as good. The additional storage over the Ultralight is nice if you aren' t going to use NDEF. |
The best all-around chip to use if you are using NDEF. |
Shenzhen YeTong Technology Co., Ltd is a high-technology corporation, with specializing in R & D and production of Security Products, including Standalone, TCP/IP or RS485 network Access Control, Turnstile Barrier Gate System, Time Attendance System, RFID Reader, Biometric Fingerprint Products, Digital Peephole Viewer, Digital Door Viewer, Electrict Lock and Accessories, etc. We also try to enlarge our scope in Security Area, like Video Phone Intercom System. With its special skill, we succeed in building our own famous brand name.
Implementing technology development strategy of high start, high input and high-quality, by virtue of our brand, our products are sold nationwide and exported to Hong Kong, Korea, Southeast Asia, the Middle East, Europe, the United States and other countries.
We have about ten Years of manufacturing experience. Until Now, six production lines are equipped with 500, 000 sets of machines for your OEM projects. Our 2, 0000-square-meter factory has a monthly capacity of 20, 000 units. Operations are ISO 9001: 2000 certified, and our products meet CE and FCC standards.
We offer our global clients with competitive price, superior quality and good performance. And we have become a reputable OEM/ODM manufacturer all over the world, and will happily work with you to develop custom solutions for your security requirements.
A large and professional OEM/ODM manufacturer in China. We provide you with
1) the quickest delivery
2) the most unique performance safe security products(access control, turnstile, barrier, RFID reader, video door phone, CCTV camera etc)
3) guarantee for superior quality
4) fashion element most close to the market
5) nice discount for large order quantity
For more information, please visit our website: HTTP: //rfidaccesscontrol. en. Made-in-China. com/
