| Prod Model: |
MC-R3142E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Image Sensor: |
CCD |
| Type: |
Digital |
| Optical Zoom: |
CCTV Camera |
Product Description

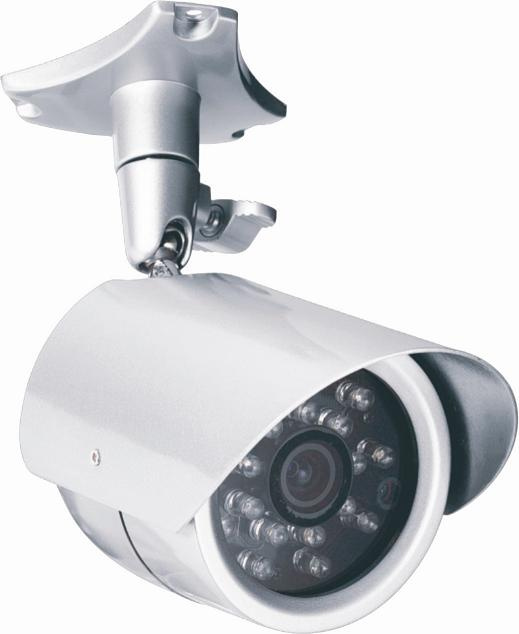

Model Number MC-R3142E
Scanning System NTSC 525 lines 2: 1 interlace
PAL 625 lines 2: 1 interlace
Scanning Frequency NTSC 15, 734Hz(H), 60Hz(V)
PAL 15, 625Hz(H), 50Hz(V)
Effective Pixels NTSC 512(H) x 492(V)
PAL 512(H) x 582(V)
Electronic Shutter NTSC 1/60-100, 000sec.
PAL 1/50-100, 000sec
Image Device 1/3" Exview HAD CCD
Horizontal Resolution 420 TV lines
Sensitivity 0.5Lux, 0 Lux at IR on
Signal to Noise More than 48dB
Gain Control AGC
White Balance Auto ATW 2500-9500 ° K
BLC Auto
Gamma Correction 0.45
SYNC System Internal
Lens/Fousc point 6mm; (Optional 6mm, 8mm. 12mm)
Video Output 1.0 Vp-p, 75 Ohm
IR LED 24 units 850nm infrared LED
IR Distance 25 meters (Subject to IR reflection conditions )
IR Status IR on: Under 10 Lux, by PT auto control
LED life More than 10, 000 Hours
Protection Class IP 57
Power Requirement (± 10%) DC12V, 500mA
Power Consumption (± 10%) IR on: 300mA, IR off: 80mA
Operation Temp. Operating: -20 ~ + 55 ° C, Storage: -30 ~ + 80 ° C, Humidity: 0~95%RH
Dimensions ( mm ) 72 (W) x 70 (H) x 115(L)
