IR Touch Screen 42" (UTL-IR42)
| Price: |
US $ 600-800 |
| Trade Terms: |
Courier Service |
| Min Order: |
1 |
| Prod Model: |
UTL-IR42 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
42" |
| Water-Proof: |
Yes |
| Vandal-Proof: |
Yes |
Product Description

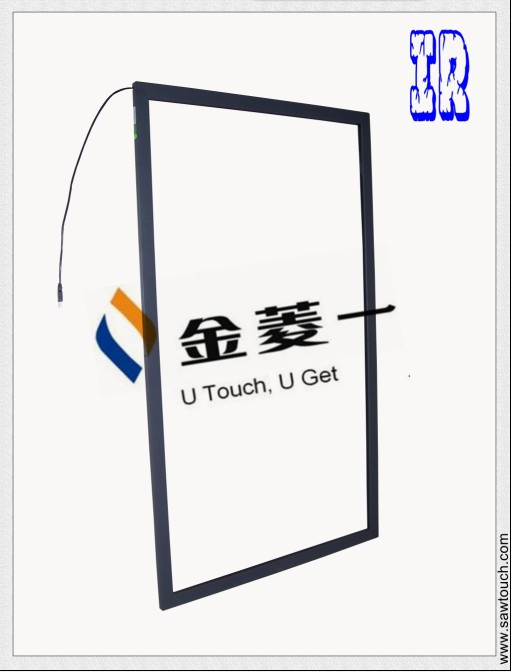

Infrared touch screen is the latest technology and it supports the most reliable touch technology. Our infrared touch screen consists of a touch frame which is installed in front of the display.
|
MECHANICAL |
|
Input Method |
Finger or gloved hand activation |
|
Touching number of times |
not limited |
|
Touching activation strength |
infrared touching technology, does not need to touch the activation strength |
|
smallest touching object diameter |
8mm |
|
Resists violence |
use armored glass, the diameter is 63.5mm (quality is 1.04kg) the superficial smooth steel ball, 1 meter highly free dropping, the test specimen broken |
|
surface durability |
skin hardness equates the glass, degree of hardness rank is 7 levels |
|
ELECTRICAL |
|
Optical index |
transmittance ≥ 92%, highest may reach 100% (not to have glass) |
|
ENVIRONMENT |
|
Temperature |
Operating -20 to 70 Storage-40 to 80 |
|
Relative Humidity |
Work humidity: 90% RH in 40 without dewing Storage humidity: 90% RH in 40 without dewing |
|
Altitude Operating |
0~3, 000m |
|
Drift |
No drift |
|
Available Size |
10.4" to 103" (custom size for OEM available) |
|
Electrical specification |
|
working voltage |
Typical value +5VDC, permission scope +4.75V ~ +5.25V |
|
power supply |
USB main line or PS/2 connection power supply, power source ripple biggest 200mV rms |
|
Power |
< 2W, Operating current < 400mA |
|
Certificate |
CE, FCC, SGS |
|
Interface |
USB/EIA-232E |
|
Suitable operating system |
Windows 2000\XP\2003\Vista\CE, Linux, Mac OS |
