| Prod Model: |
KF(R)-35GW/BP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling/Heating: |
Cooling/Heating |
| Certification: |
UL |
| Type: |

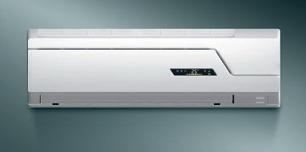

Inverter Air Conditioner |
| China Energy Efficiency Standard: |
Level 5 |
| Capacity: |
9000-12000 BTU |
| Power Source: |
Electrical |
Product Description
Professional OEM Manufacturer For Air Conditioner, CE CB UL cUL CSA ETL RoHS Certifications
NINGBO YOTON ELECTRIC Co., Ltd is a professional manufacture of Air Conditioner equipment.
Air Conditioner Feature&Function
2013 New Arrival Split Air Conditioner/Air Conditioning
1) Capacity: 9000-24000BTU
2) Cooling only / cooling and heating
3) COP/EER: 3.6/3.2
4) Gas: R22, R410A
5) Power: 220-110V
6) Working condition: T1, T2, T3
7) Compressor: HITACHI, TOSIHBA, Panasonic.
8)SEER 16-22
Features and specifications:
1) Multi-angle air intake
2) with LED and VDF display.
3) Sleep mode
4) 24-hour timer
5) Independent dehumidifying function
6) Removable & Washable Panel, Color Panel
7) High Coefficient of Performance & Energy Efficiency Ratio
8) Auto recovery after power resumption
|
Model |
KF-09GW/DN1 |
KF-12GW/DN1 |
KF-18GW/DN1 |
KF-24GW/DN1 |
|
Power supply |
Ph-V-Hz |
1Ph, 220-230V~, 60Hz |
1Ph, 220-230V~, 60Hz |
1Ph, 220-230V~, 60Hz |
1Ph, 220-230V~, 60Hz |
|
Cooling |
Capacity |
Btu/h |
9000(2250~10000) |
12000(4000~13500) |
18000(5100~20000) |
24000(12000~25000) |
|
Input |
W |
820(270~1200) |
1100(280~1220) |
1750(380~2300) |
2345(820~2750) |
|
Rated current |
A |
3.7(1.2~5.5) |
5.0(1.4~6.0) |
8.0(1.8~10.2) |
9.8(3.6~12.5) |
|
EER |
W/W |
3.21 |
3.21 |
3.01 |
3.01 |
|
Heating |
Capacity |
Btu/h |
----- |
----- |
----- |
----- |
|
Input |
W |
----- |
----- |
----- |
----- |
|
Rated current |
A |
----- |
----- |
----- |
----- |
|
COP |
W/W |
----- |
----- |
----- |
----- |
|
Moisture Removal |
L/h |
1.0 |
1.2 |
1.8 |
2.6 |
|
Max. input consumption |
W |
2200 |
1900 |
2900 |
3200 |
|
Max. current |
A |
10.0 |
8.5 |
13.0 |
14.5 |
|
Starting current |
A |
----- |
----- |
----- |
---- |
|
Compressor |
Model |
|
DA89X1C-20EZ |
DA89X1C-20EZ |
DA130S1C-20FZ |
DA150S1C-20FZ |
|
Type |
|
ROTARY |
ROTARY |
Rotary |
ROTARY |
|
Brand |
|
TOSHIBA |
TOSHIBA |
Toshiba |
TOSHIBA |
|
Indoor fan motor |
Model |
|
RPG20B |
RPG20B |
RPG28B |
YDK36-4CB(A) |
|
Brand |
|
Welling |
Welling |
Welling |
Welling |
|
Input |
W |
43 |
43 |
55 |
82/79/58 |
|
Capacitor |
uF |
1.5 |
1.5 |
1.5 |
3 |
|
Speed(Hi/Mi/Lo) |
r/min |
1200/1000/880 |
1200/940/800 |
1180/1050/900 |
1285/1245/1040 |
|
Indoor coil |
a.Number of rows |
|
2 |
2 |
2 |
2 |
|
b.Tube pitch(a)x row pitch(b) |
mm |
21x13.37 |
21x13.37 |
21x13.37 |
21x13.37 |
|
c.Fin spacing |
mm |
1.3 |
1.3 |
1.3 |
1.3 |
|
d.Fin type (code) |
|
Hydrophilic aluminium |
Hydrophilic aluminium |
Hydrophilic aluminium |
Hydrophilic aluminium |
|
e.Tube outside dia.and type |
mm |
7, innergroove tube |
7, innergroove tube |
7,innergroove tube |
7, innergroove tube |
|
f.Coil length x height x width |
mm |
538x252x26.74 |
637x294x26.74 |
755X336X26.74 |
810x357x26.74 |
|
g.Number of circuits |
|
2 |
2 |
4 |
4 |
|
Indoor air flow (Hi/Mi/Lo) |
m3/h |
480/400/350 |
630/500/450 |
730/650/560 |
1100/1050/900 |
|
Indoor noise level (Hi/Mi/Lo) |
dB(A) |
37/34/31 |
39/36/33 |
43/40/37 |
48/45/42 |
|
Indoor unit |
Dimension(W*D*H) |
mm |
710x195x250 |
790x195x265 |
920x225x292 |
1080x228x330 |
|
Packing (W*D*H) |
mm |
800x270x340 |
875x285x375 |
1015x295x368 |
1165x445x320 |
|
Net/Gross weight |
Kg |
7.5/9 |
9/11 |
11.5/14.5 |
15.5/20.5 |
|
Outdoor fan motor |
Model |
|
YDK24-6KB |
YDK24-6GB |
YDK49-6B |
YDK47-6KB |
|
Brand |
|
Welling |
Welling |
Welling |
Welling |
|
Input |
W |
75/56 |
72/53 |
119/96 |
115/89 |
|
Capacitor |
uF |
2.5 |
2.5 |
2.5 |
2.5 |
|
Speed |
r/min |
815/640 |
830/570 |
860/680 |
860/720 |
|
Outdoor coil |
a.Number of rows |
|
1 |
1.5 |
2 |
2 |
|
b.Tube pitch(a)x row pitch(b) |
mm |
19.5x11.6 |
19.5x11.6 |
19.5x11.6 |
19.5x11.6 |
|
c.Fin spacing |
mm |
1.2 |
1.2 |
1.2 |
1.2 |
|
d.Fin type (code) |
|
Unhydrophilic aluminium |
Unhydrophilic aluminium |
Unhydrophilic aluminium |
Unhydrophilic aluminium |
|
e.Tube outside dia.and type |
mm |
5, innergroove tube |
5, innergroove tube |
5,Innergroove tube |
5, innergroove tube |
|
f.Coil length x height x width |
mm |
697x507x11.6 |
744x507x11.6+370x507x11.6 |
652x546x23.2 |
782x663x23.2 |
|
g.Number of circuits |
|
2 |
4 |
4 |
4 |
|
Outdoor air flow |
m3/h |
1650 |
1800 |
2200 |
2700 |
|
Outdoor noise level |
dB(A) |
55 |
55 |
58 |
56 |
|
Outdoor unit |
Dimension(W*D*H) |
mm |
700x235x535 |
780x250x540 |
760x285x590 |
845x335x695 |
|
Packing (W*D*H) |
mm |
815x325x580 |
910x335x575 |
887x355x645 |
965x395x755 |
|
Net/Gross weight |
Kg |
25/27 |
29/32.5 |
37/40.5 |
44/48 |
|
Refrigerant type |
g |
R410A/570g |
R410A/690g |
R410A/980g |
R410A/1180g |
|
Design pressure |
MPa |
4.2/1.5 |
4.2/1.5 |
4.2/1.5 |
4.2/1.5 |
|
Refrigerant piping |
Liquid side/ Gas side |
mm(inch) |
6.35/9.53(1/4"/3/8") |
6.35/12.7(1/4"/1/2") |
6.35/12.7(1/4"/1/2") |
9.53/φ16.0(3/8"/5/8") |
|
Max. refrigerant pipe length |
m |
20 |
20 |
25 |
25 |
|
Max. difference in level |
m |
8 |
8 |
10 |
10 |
|
Connection wiring |
|
1.5(Optional) |
1.5(Optional) |
2.5(Optional) |
---- |
|
Plug type |
|
16#/SP008 |
16#/SP008 |
2.5x3/---- |
---- |
|
Thermostat type |
|
Remote control |
Remote control |
Remote control |
Remote control |
|
Operation temp |
C |
17-30 |
17-30 |
17-30 |
17-30 |
|
Ambient temp (cooling/heating) |
C |
18-50/---- |
18-50/---- |
18-50/---- |
18-50/---- |
|
Application area |
m2 |
13-22 |
18-29 |
26-44 |
35-58 |
NINGBO YOTON ELECTRIC LIMITED is the leading manufacturer of hybrid solar air conditioner and heat pump in China. Yoton was been found in year 2008, Yoton is now with about 100 employees and 2 automatic production lines which ensures an annual production capacity of 500, 000 units. Our company has passed ISO9001 Quality System Certificate and got UL, CSA, ETL, CE, CB, RoHS, SASO, cUL, SAA, SONCAP certificate. We insist on supplying high quality product with reasonable price for every buyer, thus we have established trade relations in various countries, including Philippines, Malaysia, Singapore, Pakistan, Maldives, Jordan, Saudi Arab, Qatar, UAE, Cyprus, India, Greece, Spain, Malta, France, Egypt, Cote d'lvoire, Reunion, Australia, Tahiti, Puerto Rico, USA and Canada etc. With a total turnover of over 50, 000 units in year 2012.
"High quality, reasonable price, fastest delivery" is always our tenet, We are looking forward to receiving your correspondences in the near future. We sincerely welcome the old and new customers to visit our company, negotiate business, cooperate extensively and achieve common prosperity
