| Prod Model: |
GT 50 GT65 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
50 Inch |
| Touch Point: |
10 Touch |
| Color: |
Gold, Cilver, Gray, Blue |
| OPS PC: |
Bay Trail |
| LED Brand: |
Cmo Import From Taiwan |
| Resolution: |
1920*1080P |
| USB System Upgrading Online: |
Support USB Online Upgrading Function |
| Touch Objects: |
Finnger, Pen, and Any Opaque Objects |
| Sound Output: |
2X10W |
| Power: |
USB Power Supply |
| Screen Size: |
50-60 Inches |
| Aspect Ratio: |
16:9 |
| Application: |
Education and Training System |
| Screen Type: |
Infrared |
| Customized: |
Customized |
Product Description

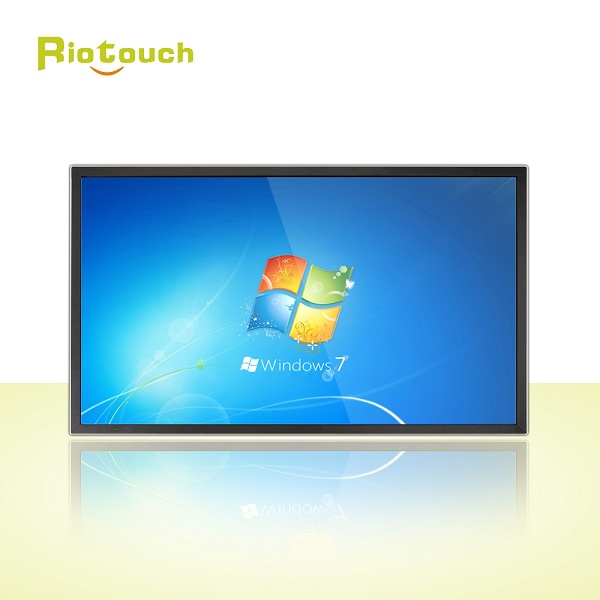

interactive screen with front touch frame design 10 touch point
Main Features for Riotouch LED Infrared Interactive Smart Board :
1. Mature infrared multi touch technology , support 2 4 6 8 10 16 32 Points touch
2. Good quality of LED Display
3. Detachable infrared touch frame , convenient for maintain
4. OEM service is available
5. Wall mount or mobile stand
6. Free Multi Languages Teaching Software , ect .,
7. Competitive factory price
Application of GT 50,GT 65
LED | LED panel size | 50 inch |
| LED brand | CHIMEI(CMO) |
| Packing Parameters | Enternal Size | 1165.8*692.2*77mm |
| Touch Size | 1092.9*617.1mm |
| Net Weight | 35kg |
| Gross Weight | 45kg |
| Package size | 1362*230*909mm |
| Package size with wooden box | 1420*280*1030mm |
| Power Parameters | Power: | <100W |
| Standard Power | <0.73W |
| Display Parameters | Active Display Area | 1095.84 (H) x 616.41 (V) mm |
| 0.1903 (H) x 0.5708 (V) mm |
| Display Colors | 1.07 billion colors |
| Contrast | 1600:1 |
| Resolution | 1920x1080pixel |
| Brightness | 400cd/m2 |
| Viewing Angle | 176 degree |
| TV Parameters | TV Standard | NTSC M/N,PAL BG/DK/I/H,SECAM L/L |
| Multimedia Formats | MPEG1, MPEG2, MPEG4, H264, RM, RMVB, MOV, |
| USB2.0 Multimedia Playback | Vido/Audio/Picture |
| USB System Upgrading Online | Support USB online upgrading function |
| Resolution | Max. 1080P format |
| HDMI | V1.3, 720P/1080P |
| HDCP | V1.1 |
| Scanning Format | Support 1080i Video crisscross DAS (Dynamic Adaptive Scan ) |
| Sound Control | Automatic sound standard detection, support for balance adjustment and surround Sound |
| Sound Output | 2X10W |
Input and
output ports | HDMI Input port | 2-line (HDMI1 keep for Inside OPS) |
| VGA Input port | 1 Line |
| PC Audio port | 1 Line |
| Headphone/Audio output | 1 Line |
| AV Input port | 1 Line |
| Y/pb/cb/pr/cr inport | 1 Line |
| RF input ports | 1 Line |
| USB Multimedia Input ports | 1 Line |
Touch
parameters | Touch Technology | Infrared touch technology |
| Touch points | 10 finger writing; 32 touch points |
| Touch mode | Single, multipoint,Mouse click |
| Inductive objects | Finger, pen or any other opaque objects |
| Inductive size | Diameter≥5mm |
| Resolution | 32767*32767 |
| Response time | 1) First dot(click):8ms, continuously(writing):3ms
2) multipoint click:firstdot(click):8ms,continuously(writing):8ms
3) Mouse click:first dot(click):8ms,continuously(writing):8ms |
| Cursor speed | UP to 300 dots/s Multipoint,mouse click:125 dot/s |
| Operating life | ≥60,000,000 times to click |
| Power | USB power supply (4.6-5V, DC) |
| Power consumption | ≤1w |
| Operation Systerm | Windows 8, windows 7, XP, Mac, Linux, Android |
| Calibration | HID devices standard, accord with Win7 multi-touch protocol, no need special software to calibrate, just use Table PC setting to finish the calibration. |
| Anti-light decay function | Anti-light decay circuits to prevent the performance degradation caused by long working hours |
| LED Test Software | Supply touch screen LED test software to test the function of each couple of the LED lights and the drawing functions |
| Antilight interference function | can work properly in direct sunlight condition |
| Standard Accessories | TV Remote Control | 1pcs |
| Power cable | 1.5m |
| HDMI cable | 1.5m (if without PC) |
| VGA Input port | 1.5m (if without PC) |
| USB | 5M cable (if without PC) |
| Audio Cable | 1.5m |
| CD | 1 PCS (if without PC) |
| Pen without ink | 2 PCS |
| Warranty Card | 1 Pcs |
| User manul | 1 PCS |
| Wall brackets | Screws, wall mount kits |
| Optional Configuration |
| The Inside PC is Bay Trail style with WIN8 OS |
| CPU | Intel Z3735F 1.33GHz Quad core |
| RAM | 2G DDR3 1333 |
| Hard Disk | 32GB SSD |
| LAN Card | integrated 100/1000M |
| Wireless LAN Card | integrated 802.11a/b/g/n |
| Other Accessories | Wireless Mouse | Optional |
| Mobile Stand | Optional |
| LED | LED panel size | 50 inch |
| LED brand | CHIMEI(CMO) |
| Packing Parameters | Enternal Size | 1165.8*692.2*77mm |
| Touch Size | 1092.9*617.1mm |
| Net Weight | 35kg |
| Gross Weight | 45kg |
| Package size | 1362*230*909mm |
| Package size with wooden box | 1420*280*1030mm |
| Power Parameters | Power: | <100W |
| Standard Power | <0.73W |
| Display Parameters | Active Display Area | 1095.84 (H) x 616.41 (V) mm |
| 0.1903 (H) x 0.5708 (V) mm |
| Display Colors | 1.07 billion colors |
| Contrast | 1600:1 |
| Resolution | 1920x1080pixel |
| Brightness | 400cd/m2 |
| Viewing Angle | 176 degree |
| TV Parameters | TV Standard | NTSC M/N,PAL BG/DK/I/H,SECAM L/L |
| Multimedia Formats | MPEG1, MPEG2, MPEG4, H264, RM, RMVB, MOV, |
| USB2.0 Multimedia Playback | Vido/Audio/Picture |
| USB System Upgrading Online | Support USB online upgrading function |
| Resolution | Max. 1080P format |
| HDMI | V1.3, 720P/1080P |
| HDCP | V1.1 |
| Scanning Format | Support 1080i Video crisscross DAS (Dynamic Adaptive Scan ) |
| Sound Control | Automatic sound standard detection, support for balance adjustment and surround Sound |
| Sound Output | 2X10W |
Input and
output ports | HDMI Input port | 2-line (HDMI1 keep for Inside OPS) |
| VGA Input port | 1 Line |
| PC Audio port | 1 Line |
| Headphone/Audio output | 1 Line |
| AV Input port | 1 Line |
| Y/pb/cb/pr/cr inport | 1 Line |
| RF input ports | 1 Line |
| USB Multimedia Input ports | 1 Line |
Touch
parameters | Touch Technology | Infrared touch technology |
| Touch points | 10 finger writing; 32 touch points |
| Touch mode | Single, multipoint,Mouse click |
| Inductive objects | Finger, pen or any other opaque objects |
| Inductive size | Diameter≥5mm |
| Resolution | 32767*32767 |
| Response time | 1) First dot(click):8ms, continuously(writing):3ms
2) multipoint click:firstdot(click):8ms,continuously(writing):8ms
3) Mouse click:first dot(click):8ms,continuously(writing):8ms |
| Cursor speed | UP to 300 dots/s Multipoint,mouse click:125 dot/s |
| Operating life | ≥60,000,000 times to click |
| Power | USB power supply (4.6-5V, DC) |
| Power consumption | ≤1w |
| Operation Systerm | Windows 8, windows 7, XP, Mac, Linux, Android |
| Calibration | HID devices standard, accord with Win7 multi-touch protocol, no need special software to calibrate, just use Table PC setting to finish the calibration. |
| Anti-light decay function | Anti-light decay circuits to prevent the performance degradation caused by long working hours |
| LED Test Software | Supply touch screen LED test software to test the function of each couple of the LED lights and the drawing functions |
| Antilight interference function | can work properly in direct sunlight condition |
| Standard Accessories | TV Remote Control | 1pcs |
| Power cable | 1.5m |
| HDMI cable | 1.5m (if without PC) |
| VGA Input port | 1.5m (if without PC) |
| USB | 5M cable (if without PC) |
| Audio Cable | 1.5m |
| CD | 1 PCS (if without PC) |
| Pen without ink | 2 PCS |
| Warranty Card | 1 Pcs |
| User manul | 1 PCS |
| Wall brackets | Screws, wall mount kits |
| Optional Configuration |
| The Inside PC is Bay Trail style with WIN8 OS |
| CPU | Intel Z3735F 1.33GHz Quad core |
| RAM | 2G DDR3 1333 |
| Hard Disk | 32GB SSD |
| LAN Card | integrated 100/1000M |
| Wireless LAN Card | integrated 802.11a/b/g/n |
| Other Accessories | Wireless Mouse | Optional |
| Mobile Stand | Optional |
If you have any questions please contact me.
Mobile:0086 18124598500
RioTouch is a professional manufacture of infrared touch screen, infrared frame, interactive whiteboard and touch screen kiosks. Also we have an enthusiastic team to provide you with solutions in many fields like hometheater, education, corporation, training and games. We aim to make everything easy and help you to turn your ideas and designs into reality.
RioTouch future research willmainly concentrate in the visual multi-touch technology development, interactive educational software development, interactive applications softwaredevelopment.
Riotouch is committeed to be:
1. Professional provider of human-computer interactive techniques.
2. China leading Infrared interactive whiteboard technology solution provider.
3. China leading infrared whiteboard SKD supplier.
4. China leading touch screen manufacturer
