| Prod Model: |
SPH2.0 |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Collector: |
Flat Plate Solar Panel |
| Riser: |
Heat Pipe |
| Inner Tank: |
SUS304 /1.5mm |
| Outer Tank: |
PVDF /0.4mm |
| Tank Capacity: |
150L |
| Tank Diameter: |
550mm |
| Glass Panel: |
Tempered Glass /3.2mm |
| Frame: |
Galvanized Steel /1.5mm |
| Working Pressure: |
6 Bar |
| Collector Components: |
Flat-plate |
| Pressure: |
Pressurized |
| Structure: |
Compact Type |
| Interior Material: |
Stainless Steel |
| Certification: |
Solar Keymark |
| Composition: |
Tank Insulation |
| Max. Capacity: |
150L |
Product Description
Heat Pipe Flat Solar Water Heater 300L for Overheating Protection (SPH4.0)Model: SPH2.0, SPH4.0Suntask SPH is specially designed for the villa, vacation village, farm house…, it is perfectly harmony with the building and circumstance, mounted on the roof and wall, which is the ideal products for the solar energy-building integration.
SPECIFICATIONS1. Inner tank: SUS304-2B/1.5mm
2. Outer tank: PVDF 0.4mm which is good at anti corrosion stainless steel
3. Riser: Heat pipe
4. Heat pipe: TU1 copper
5. Bracket: Galvanized steel 1.5mm
6. Glass panel: Mistlite low iron extra clear tempered glass, 3.2mm
7. Absorber: Biue selective
8. Working pressure: 6 bar
ADVANTAGES1. The first invention Heat Pipe-Flat Plate collector, anti-frozen, scale free and more safe.

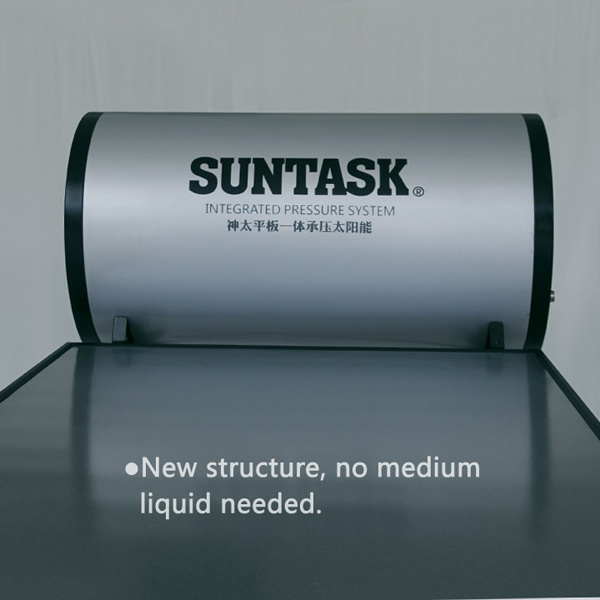

2. New structure, no medium liquid needed, free maintenance
3. Overheating prevention, longer service lifetime pressurized tank

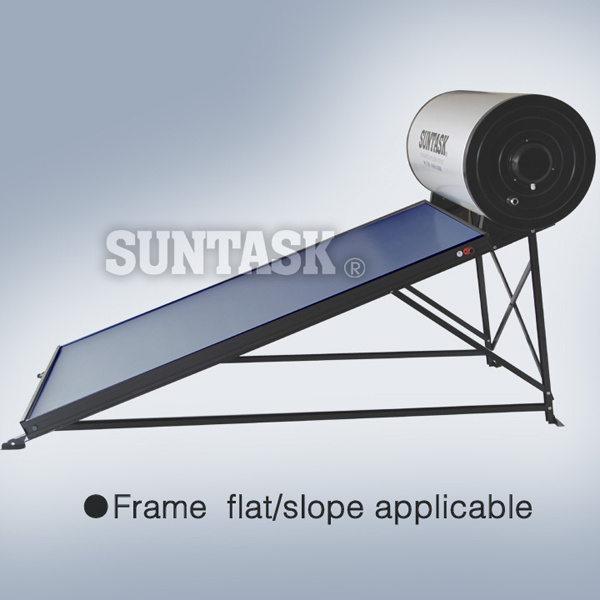

4. Slope/flat roof multifunction, more harmony of inclined roof installation
5. Water storage tank split with the solar collectors
6. Available both for the building integration and high cost/performance.
7.24h/whole day high pressure hot water outlet
8. Innovation leader of popularized solar energy in future
TECHNOLOGY CORE1. Heat pipe structure, no medium liquidThe first invention Heat Pipe-Flat Plate panel, no water or medium liquid in the pipeline, to solve the low efficient heat exchanging by the medium liquid and complex maintenance, and conquer the frozen cracked by water and scale.
2. Unique overheating protectionThe new structure can prevent the overheating in summer (overheating can damage the tank and shorten the lifetime), meanwhile, the relative low temperature can ensure the high sunlight absorbing efficiency.

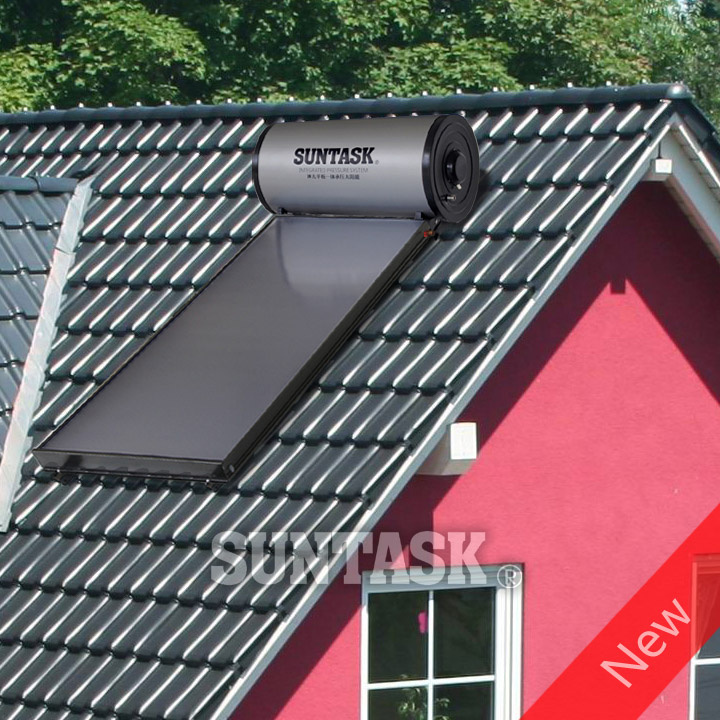

3. Installation combine with the building integrationConveniently mounted on the slope roof, no location limited. Any angel installation, free occupied, It is the really solar energy and building integrated which is the new development trend of solar energy in future.
| No. | Model | L*W*H mm | collectors
No.*pc | tank
pressure | tank dia. | Tank
capacity L | raiser | Frame | Installation | container
loading
20ft/40HQ sets | Gross
weight (kg) |
|
|
|
|
|
|
|
|
|
|
|
|
| 1 | SPH2.0 | 1000*2300*1440 | SP2.0*1 | 6Bar | Φ550mm | 130 | heat pipe | gal. steel | slope / flat roof | 52/126 | 69 |
| 2 | SPH4.0 | 2100*2300*1440 | SP2.0*2 | 260 | slope / flat roof | 26/64 | 138 |
| 3 | SPH2.0-N | 1000*2300*1440 | SP2.0*1 | 0.05Bar | Φ490mm | 125 | slope / flat roof | 55/130 | 60 |
| 4 | SPH4.0-N | 2100*2300*1440 | SP2.0*2 | 250 | slope / flat roof | 30/72 | 120 |
