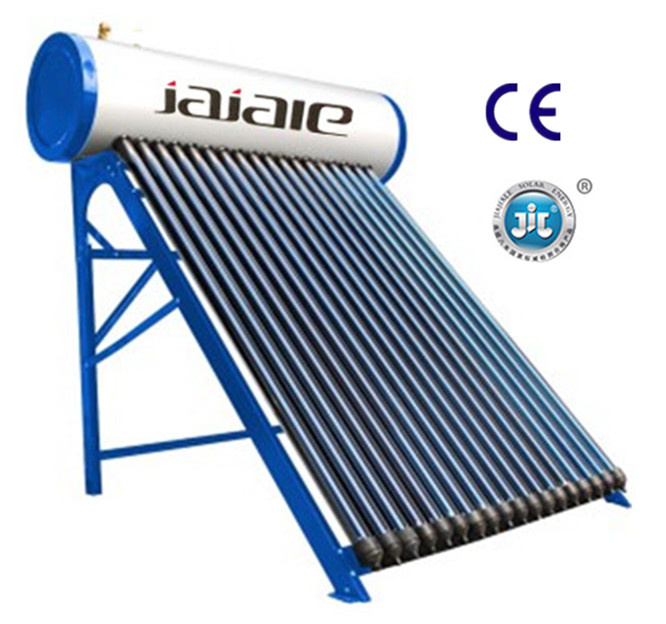

| Prod Model: |
jlf-CSP-18 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
180 Liters |
| Tube Qty: |
18 Heat Pipe Vacuum Tubes |
| Tube Size: |
58*1800 mm |
| Package: |
Cartons with Foam |
| Angle: |
27'-45' |
| Structure: |
Compact Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Collector |
| Max. Capacity: |
180L |
| Certification: |
CE,CCC,ISO9001 |
Product Description
Detailed:
1) Inner tank material: SUS304-2B stainless steel. Available thickness is 1.2-1.5mm.
2) Outer tank material: Color steel . Available thickness is 0.4mm.
3) Heat pipe Vacuum tube: 58x1800mm
Material: High borosilicate glass, three-layer coated vacuum tube.
Over 15 years service life.
Hail resistance: 25mm.
4) Insulation layer: High density polyurethane foam, available thickness is 55mm.
5) Very popular tank capacity in present markets is 150-300L.
6) Frame material: Galvanized steel .
Features:
1. Adopts the best conduction performance metal- heat pipe (copper)
2.Can be used all year round in the cold climate
3.High efficiency, rapid warming. Heat pipe in vacuum tube could transfer hot energy to cold water in pressurized solar water heater tank rapidly
4.The whole pressure of the system is up to 1.5kg/M2, the inlet could connect the tap water directly, the max pressure can be 0.6Mpa
5. No water in the tube, one tube broken don't influence the system working
6.The design for inner tank is reasonable and scientific, which could hold 100, 000 times fatigue test without any damage
7. Dual-purpose brackets for both flat and inclined roof
8.The system is pressurized,it keep a constant temperature of water in the tank, avoid the problem came from water level controller malfunction which could cause water flow out
Model | Vacuum Tube | Tank | Install Size | Loading Qty |
| Size /mm | No | Capacity/L | L*W*H/mm | 20GP | 40HQ |
| jlf-CSP-10 | 58×1800 | 10 | 100 | 933*1950*1310 | 80 | 227 |
| jlf-CSP-15 | 58×1800 | 15 | 150 | 1308*1950*1310 | 53 | 129 |
| jlf-CSP-18 | 58×1800 | 18 | 180 | 1533*1950*1310 | 45 | 108 |
| jlf-CSP-20 | 58×1800 | 20 | 200 | 1683*1950*1310 | 40 | 97 |
| jlf-CSP-24 | 58×1800 | 24 | 240 | 1983*1950*1310 | 33 | 81 |
| jlf-CSP-30 | 58×1800 | 30 | 300 | 2433*1950*1310 | 27 | 65 |
Carrefour New Energy Co.Ltd is a designer and manufaturer of solar water heating prodcts in China. All of our products are designed to ensure robust performance over a long lifespan. All of our solar water heaters are complied with CE, ISO9001-2008,CCC standars.
If you are interested in our solar water heater system, please feel free to contact us.
