| Prod Model: |
X6 series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Air Source Heat Pump |
| Installation: |
Freestanding |
| Housing Material: |
SUS 304 Stainless Steel |
| Heat Exchanger: |
SUS 316 Stainless Steel |
| Brand: |
Theodoor |
| Model: |
RS-3.6fad Series |
| Working Temp: |
-10-43 Degrees |
| Compressor: |
Panasonic |
| Refrigerant: |
R410A/R134A |
| Auto Defrost: |
Yes |
| Heat Temperature: |
50-70??C |
| Work Environment: |
Common Heat Pump |
| Heat Source: |
Air-source |
| Application: |
Beauty Salons |
| Certification: |
RoHS |
Product Description
Integrated heat pump water heater
Double energy
R410A or R417A, high COP
Capacity: 120L, 150L, 190L, 260L
Integrated heat pump water heater: All in one type.
CE approval
1. Double energy system by air source technology and smart electric water integrated technology.
2. All in one design, easy installation, save space.
3. Safety, the electricity is completely separated from water, without any poisonous gas, liquid or trash letting while running.
4. Save energy, saving more energy by 70% comparing with ordinary water heater.
5. Protecting Environment. There isn't any burning gas from the water heater. The refrigerant won't contaminate the ozonosphere. So it benefits the society.
6. Supply water anytime, and not be affected by geographical and weather changing.
7. Intelligent control, the water temperature can be adjusted as needed and controlled by micro-computer automatically.
| Model | RS-3.6FX/120L | RS-3.6FX/150L | RS-3.6FX/190L | RS-3.6FX/260L | RS-3.6FXD/120L | RS-3.6FXD/150L | RS-3.6FXD/190L | RS-3.6FXD/260L |
| Rated Input Power | 0.8 KW | 0.8 KW | 0.8 KW | 0.8 KW | 0.8 KW | 0.8 KW | 0.8 KW | 0.8 KW |
| Rated Heating Capacity | 2.8 KW | 2.8 KW | 2.8 KW | 2.8 KW | 2.8 KW | 2.8 KW | 2.8 KW | 2.8 KW |
| Rated Current | 3.6A | 3.6A | 3.6A | 3.6A | 3.6A | 3.6A | 3.6A | 3.6A |
| Power Supply | 220V~240V / 50Hz | 220V~240V / 50Hz |
| Outlet water temperature | 55 degrees | 55 degrees |
| Water output capacity | 77L/H | 77L/H |
| Capacity of Water Tank | 120L | 150L | 190L | 260L | 120L | 150L | 190L | 260L |
| Electric Heater Power | \ | 2KW |
| Auxiliary heater ampere | \ | 9.1A |
| Electricity Water capacity | \ | 41L/H |
| Refrigerant | R417A / R410A / R134a |
| Compressor | Panasonic |
| Condenser | Copper coil /Double skin copper coil /Stainless steel coil |
| Evaporator | High efficiency finned heat exchanger |
| Solar Coil | Available for 190L and 260L |
| Size(mm) | 568X1350 | 568X1535 | 568X1670 | 568X1970 | 568X1350 | 568X1535 | 568X1670 | 568X1970 |
| Net Weight (Kg) | 62 | 65 | 69 | 76 | 62 | 65 | 69 | 76 |
| Noise (dB) | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 |
| Water connection | DN20 | DN20 | DN20 | DN20 | DN20 | DN20 | DN20 | DN20 |

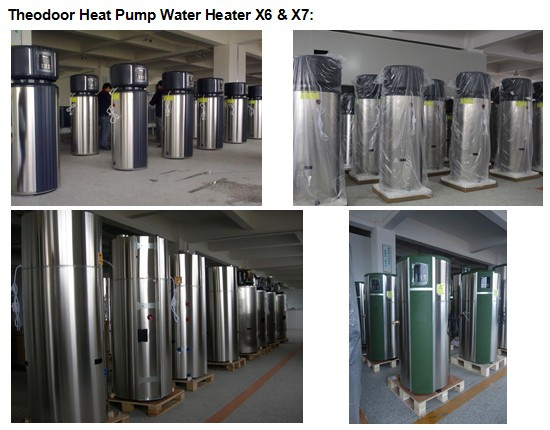

Factory pictures:
Theodoor Company is a professional manufacturer engaged in the research, development, production, sale and service of Air curtain, Heat pump water heater and ventilating system. We supply many series of products, suitable for different environments; with superior performance, attractive design and fine workmanship. Theodoor has gained ISO9001 international quality management system and ISO14001 Environmental management system certification. The products are qualified with CCC, CE, RoHS and UL certifications.
Theodoor pays great attention to absorb and integrate the advanced technologies, there are professional assembly lines, Motor manufacturing workshop and Numerical Control Workshop in the factory. Using the advanced mould machines and equipments in state of the art technologies which provide a solid basis for putting creative ideas into reality, and has enabled us to ensure the product performance and reliability. At every stage, from raw materials to the end products we insist on results: safety, efficiency, energy saving and environmental protection. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss the requirements and ensure full customer satisfaction.
Theodoor products not only have good sales in China market but also received a good reputation around the world. Up to now, we have established a wide marketing network and stable friendship with many customers and it's our hope to develop long term cooperation and promote mutual benefit.
