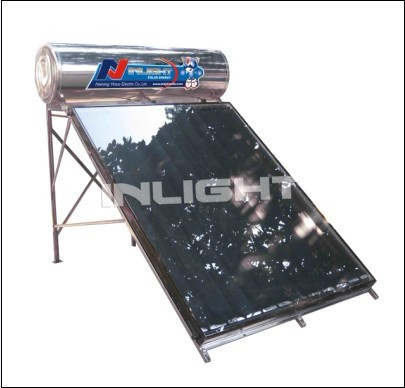

Integrated Flat-Plate Solar Water Heater

Integrated Flat-Plate Solar Water Heater
Price: US $ 400-1000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Markets: South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Max. Capacity: >200L
Structure: Compact Type
Pressure: Unpressurized
Interior Material: Stainless Steel
Collector Components: Flat-plate
Certification: ISO9001
Composition: Flat Plate Solar Collector, Water Tank

Product Description

Flat Plate Solar Water Heater
1. OEM available
2. Intelligent operation
3. High efficiency
4. It works even freezing -36

Flat Plate Solar Water Heater

Features description

The split flat plate solar water heater composes of flat plate solar collector, storage water tank, workstation system and interconnecting pieces.
Flat Plate Solar Collector:

1) Copper core and pipes in flat plate as heat exchanger, with a quick startup and super efficiency.

2) Three high-tech methods of coating (Selective coating / Black chrome / Titanium-Nitride-Oxide) to meet your upper needs

3) Ultrasonic technology ensures seamless jointing of copper core and pipes

4) Modularized collector, arbitrary combination with architectural structure, adaptable to either slope or flat roof, little maintenance needed

Pressurized Water Tank

1) Inner water tank: Food-grade stainless steel SUS304-2B as inner tank keeps the water clean and drinkable, automatic argon-arc welding technics ensures long lifespan (15 years) with good pressure bearing.

2) Water tank shell: Color steel plate much durable and appealing. Stainless steel shell makes it a choice for higher requirements.

3) Insulation Layer: Germany-imported polyurethane integrated foam-forming with twice slaking treatment, preserves hot water constantly

4) Pressurized water tank with super hydraulic bearing pressure makes your life more comfortable

5) Copper coil could be installed inside water tank for twice hear exchange efficiently, one more copper coil installed could be connected with radiator or other devices for house heating or connected with other heating devices such as gas to assist solar water heating.

Workstation System:

1) An integrated system composes of intelligent controller, circulating pump, flow meter, relief valve, pressure gauge, expansion vessel, check valve

2) More intelligent operation, when temperature discrepancy between collector and water tank reaches set value, the controller shall start the circulation pump automatically for heat exchange to raise the water temperature in storage tank

Accessories:

1) Electrical heater, as an auxiliary heating element in case of raining or snowing so as to supply hot water continuously

2) Magnesium rods, soften hard water so as to protect system from water scale effectively

Warranty: Three-year international responsibility for integrated system and 15 years for vacuum tubes due to original quality problems
Flat  Plate
  Solar Collector
  Spec. (mm)  2000*1060*70        2000*1060*80        2000*1060*90
  Cover Glass  Tempered/ Tempered  woven / tempered low-iron  woven glass
  Coating  Selective / Black Chrome
  Core  All red copper core & pipes
  Insulation  Glass wool + benzene plate/ Glass wool + polyurethane foam
    Water tank  Capacity  100L/ 120L/ 150L/ 200L/ 250L/ 300L/ 400L/ 500L
  Inner tank    Food-grade stainless steel SUS304-2B
  Copper coil    All red copper Φ 12 X 1.0mm
  Insulation    Imported polyurethane integrated foam-forming 50mm
  Tank shell    Color steel plate / Stainless steel
        Bracket  Spec. (mm)  1.2 ~ 1.5mm in thickness
  Material    Hot-dip galvanized steel / Stainless steel / Aluminium alloy
  Accessories  Workstation, Electrical heater, Magnesium rods,   T& P  valve
      Pressure  7 bar
      Tilt angle  0° ~ 90°
    Water output  45~95 °C

Since 1995 Haining Yinuo Electric Co., Ltd has dedicated itself to saving global resources by supplying the world with superior solar water heating systems.

Haining Yinuo Electric Company is situated in the beautiful village of Haining 100 km to the port of Shanghai and covers a production area of 12, 000 square meters. It produces 48, 000 solar water heaters and 27, 00 high capacity industrial solar water heating systems per year, 60% of which are exported to overseas markets.

Haining Yinuo Electric Co. Is equipped with state of the art manufacturing equipment imported from Germany and carefully trained technicians. Its products are certified by ISO and CE and have a quality reputation throughout Germany, France, America, South Korea, South Africa and the world. Haining Yinuo Electric Company's is well known as a supplier of well designed and affordable products, and its competent and professional staff.

Haining Yinuo Electric Company's mission is to serve its customers by providing them with the most appropriate solutions to their individual requirements. Regardless of your particular circumstances, Haining Yinuo Electric Company's friendly, professional and experienced staff will tailor a special solution to your needs that will surprise and delight you.

You are welcome to surf around our website, compare our products, and ask us questions, we are just a click away from you.
