| Prod Model: |

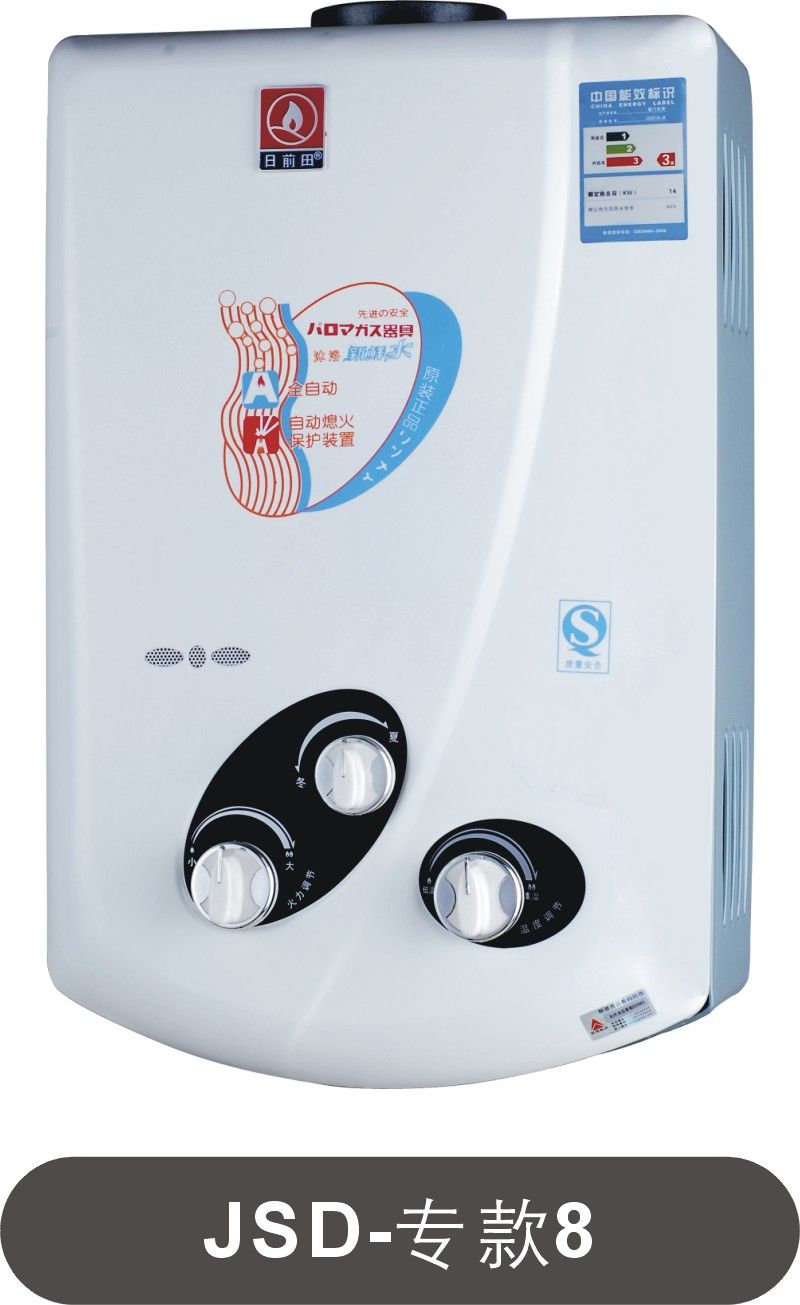

JSD-P8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White(Other Color Can Be as Your Require) |
| Type: |
Flue Type |
| Gas Type: |
LPG |
| Installation: |
Indoor Standard Installation |
| Housing Material: |
Stainless Steel |
| Interior Material: |
Stainless Steel |
| Usage: |
Bathroom |
| Certification: |
as Your Require |
Product Description
1. Specification:
1) Optional Color: White
2) Housing Material: Steel
3) Three knobs with summer and winter (Selectable)
4) Heat exchanger made of 100% Copper
5) With Digital Temp. Display (Selectable)
6) Double automatic electrical pulse ignition device.
7) With protection against dry burn
8) With over-temp. Protection, Antifrost protection.
9) With Five-years Quality Gurantee
2. Features:
1) Low water pressure starting and high water pressure protection.
2) High energy-saving: Apply with advanced energy-saving and burning technology, reducing gas depletion and burning noise.
3) Flame failure safety device: It will automatically cut gas source when flameout in accident for avoiding gas leak, reminding that you need to air exchange, it could be use when you restart.
4) Dry burning protection: Temp. Sensor device automatic cut off gas source while heating element is dry heating.
5) Prevent frozen protection: In case of temperature lower than 6 degree in chill condition, Should open the switch to release inner water avoid having ice swelling broken valve.
3. Packing(6L):
1) Dimension:
Product: L560*W340*H180mm
Carton: L580*W380*H200mm
2) Weight:
N. W.: 5.5kg
G. W.: 6kg
3) Conveyance:
A) 20 FCL: 850PCS B) 40 FCL: 1730PCS C) 40HQ: 1810PCS
Our Company
Located in Xijiao Industrial Zone, Ronggui Town, Shunde District, Foshan City, Qiantian Electric Appliance Co., Ltd a famous professional producer of modern domestic electric appliances.
Our firm mainly manufactures gas water heaters, gas kitchen ranges, oil smoke extractors, electric water heaters, electric pressure cookers, induction cookers, sterilization cabinets and computer-controlled rice cookers.
We enjoy a high reputation for professional quality, powerful production strength, and persistent quality pursuit. In aspect of quality, all products, made with great elaboration, are up to market demands. Besides, they are complete in specification and rich in variety.
|
Model |
A-6L |
A-7L |
A-8L |
A-10L |
A-12L |
A-16L |
A-20L |
|
Rated Voltage |
3V Dry Battery |
|
Thermal Efficiency |
90% |
|
Heat Output(MJ/H) |
36 |
44 |
53 |
71 |
90 |
115 |
140 |
|
Gas Consumption |
NG(m 3 /h) |
1.10 |
1.43 |
1.65 |
2.00 |
2.45 |
3.25 |
4.05 |
|
LPG(kg/h) |
0.9 |
1.1 |
1.4 |
1.8 |
2.2 |
2.9 |
3.6 |
|
Heat water output(L/min) |
6 |
7 |
8 |
10 |
12 |
16 |
20 |
|
Installation& Exhaust Type |
Wall Mounted/Flue |
|
Gas Type |
LPG(2800pa)/NG(2000pa) |
|
Type of Ignition |
Pluse: Battery Automatic |
|
Connections |
Hot& Cold Water: 1/2" BSP, Gas House: 9.5 mm |
|
Water Pressure |
0.02~0.7(Mpa) |
