| Prod Model: |
CH-QS2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Panel Color: |
Optional |
| Sample: |
Availbale |
| After Service: |
1 % Foc Parts |
| Type: |
Forced Exhaust |
| Gas Type: |
Natural Gas |
| Installation: |
Outdoor Standard Installation |
| Housing Material: |
Stainless Steel |
| Interior Material: |
Copper |
| Certification: |
ISO9001 |
| Usage: |
Bathroom |
Product Description

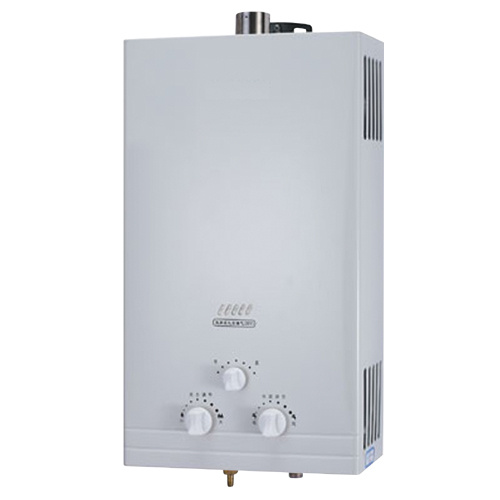

Model: CH-QS2 Series
Features:
1/ Low or zero water pressure start up, it is sensed and ignited by water flow automatically.
2/ Pure copper for heat exchanger.
3/ High-efficiency burner with full-sealed combustion hall
4/ Water-gas interlock valve center.
5/ A grade pulse circuit for ignition.
6/ Hot/cold water controlled as you like.
7/ Summer and winter switch optional for energy saving.
8/ Various panel color available such as white, silver metallic etc.
9/ LPG/NG gas type optional
10/ Leak and overheating safety device
11/ Over water pressure protection device
12/ Anti-freeze & anti-dry combustion safety device
13/ Incomplete combustion safety device
14/ Flame failure safety device
15/ Self-diagnose function, trouble code displayed in case trouble occur.
|
Model |
CH-QS2-12 |
CH-QS2-14 |
CH-QS21-16 |
CH-QS2-20 |
CH-QS2-24 |
CH-QS2-32 |
CH-QS2-40 |
|
Capacity (L) |
6 |
7 |
8 |
10 |
12 |
16 |
20 |
|
Exhaust type |
forced exhaust |
forced exhaust |
forced exhaust |
forced exhaust |
forced exhaust |
forced exhaust |
forced exhaust |
|
Hot water supply (L/Min) |
6 |
7 |
8 |
10 |
12 |
16 |
20 |
|
Burner type |
3 line harmonica |
3 line harmonica |
4 line harmonica |
13 line T-shape |
15 line T-shape |
16 line T-shape |
18 line T-shape |
|
Ignition |
automatic |
automatic |
automatic |
automatic |
automatic |
automatic |
automatic |
|
Applicable water pressure (MPa) |
0.02~0.8 |
0.02~0.8 |
0.02~0.8 |
0.02~0.8 |
0.02~0.8 |
0.02~0.8 |
0.02~0.8 |
|
Gas type |
LPG(Liquefied Petroleum Gas) / NG(Natural gas) |
|
Gas pressure |
LPG: 2800Pa NG: 1274Pa & 2000Pa |
|
water & gas connector |
G1/2" |
G1/2" |
G1/2" |
G1/2" |
G1/2" |
G1/2" |
G1/2" |
|
Overheating protection |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
Overpressure protection |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
flame failure protection |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
Product size (mm) |
440x290x120 |
490x300x120 |
520x320x140 |
590x330x140 |
620x330x180 |
650x420x180 |
700x420x180 |
|
Packing size (mm) |
560x360x180 |
620x360x200 |
640x375x200 |
710x400x200 |
750x390x240 |
770x480x240 |
820x480x240 |
|
N. W. / G. W. (kg) |
4/5 |
5/6 |
7/8 |
9/10.5 |
9.5/11 |
13.5/15.5 |
18/20 |
