| Prod Model: |
duct fan |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black or as Request |
| Voltage: |
110V or 220V |
| Air Volume: |
Speedy |
| Electric Current Type: |
AC |
| Quiet Operation ,Low Noise: |
Metal Housing with Leather Cover |
| Power Supply: |
Electric |
| Remote Control: |
Without Remote Control |
| Timer: |
Without Timer |
| Power: |
100W-300W |
| Material: |
Metal |
| Type: |
Solar Agricultural Greenhouses |
Product Description
1. We are manufacturer
2. Use Austrialian virgin activated carbon
3. Reason price
Packaging & Delivery
Packaging Detail: 1PC/CTN
Delivery Detail: Within 45 days
Specifications
1. High quality&reasonable price
2. Strong airflow&stable performance
3. CE UL passed
4. Extremely quiet operation
5. Galvanized steel housing
6. OEM ok

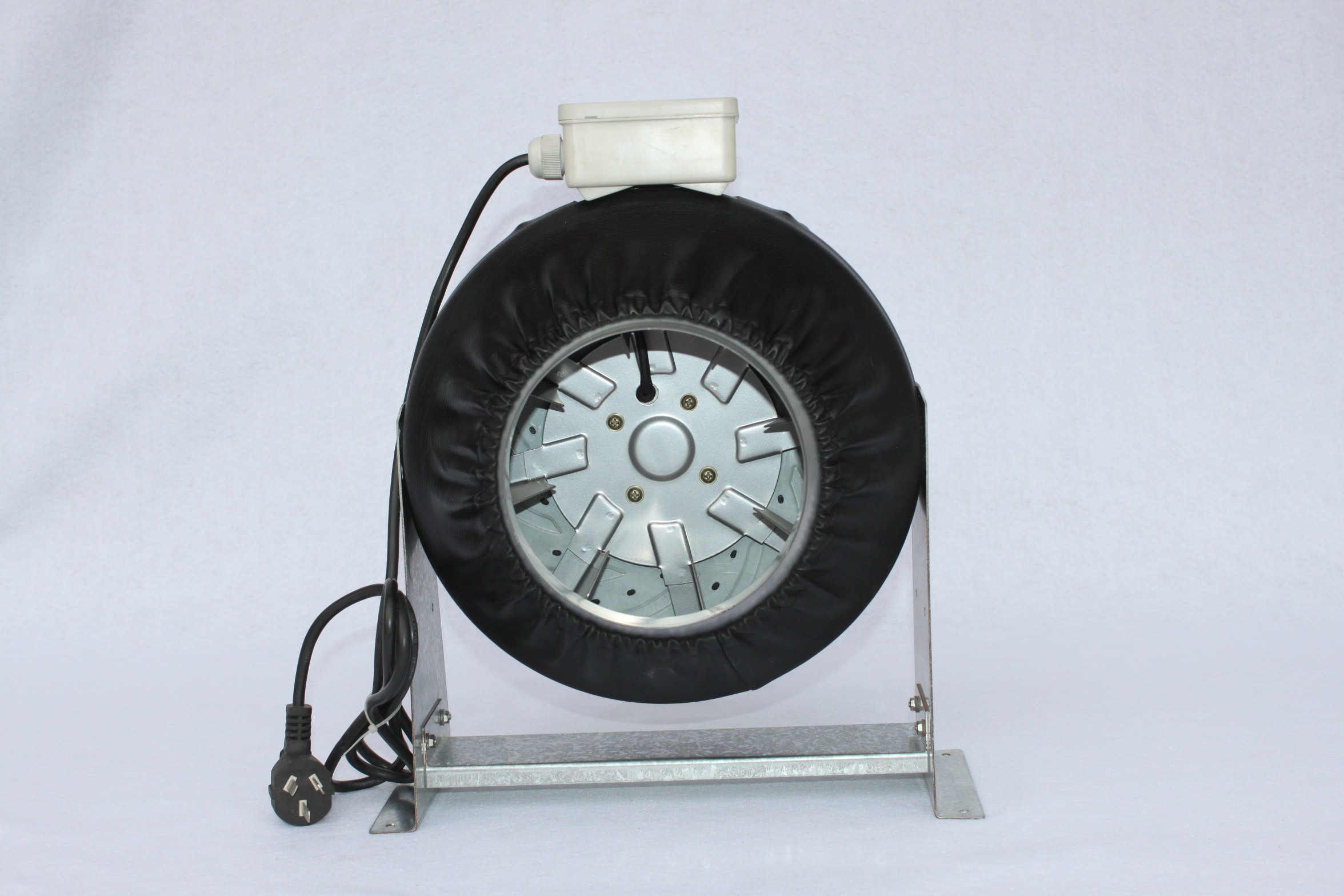

4"-12.5" Inline Duct Fan
Features:
Excellent value price /performance
Extremely quiet operation
Galvanized steel with black powder coating
UL, CE recognized components
High quality molded impeller
Thermally protected AC motor
Industrial high quality inline duct fan
The Fan is an in-line centrifugal duct fan with high capacity and excellent reliability. The straight through radial fan is compact and very easy to install. It can cope with high pressure and long duct runs, whilst still operating at acceptable noise levels.
The Fan range of fans have casings manufactured from galvanized steel and are moisture resistant. They are approved for installation in humid or damp environments being rated IP44 when installed in a duct system.
The fan speed can be controlled by voltage variation regulators. Several fans can be connected to the same controller providing the total rating of the controller is not exceeded.
The motors are an external rotor type asynchrony motor. They have maintenance free sealed ball bearings and are protected from over heating by thermo contacts.
Specification
1)Diameter: 100mm-315mm
2)Airflow: 141-1795cbm/h
3)Pressure: 350-830PA
3)Low noise: 47-54dB, compact structure
4)220V/50Hz; 110V/60Hz
The inline duct fans can be widely used in the hydroponic industry, like the greenhouse, grow tent, etc for ventilation purposes.
