| Prod Model: |
kszgy-317 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Grand |
| Product Name: |

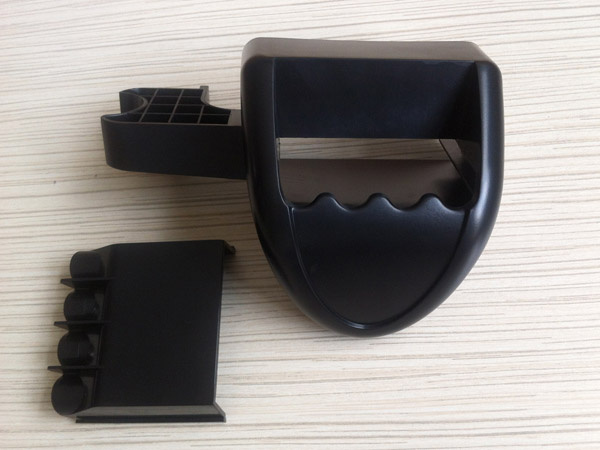

Plastic Product |
| No. Of Cavity: |
Single / Muti |
| Surface Finish: |
Polishing, Sand Blasting, etc. |
| Processing: |
Milling, Lathe,CNC, Hot Treatment, Grinding, Wirec |
| Lead Time: |
5-15 Days |
| Shaping Mode: |
Injection Mould |
| Process Combination Type: |
Progressive Die |
| Application: |
Electronic |
| Installation: |
Fixed |
Product Description
Specifications
Product
Specification | Product Name | Plastic Injection Mold |
| Plastic Material | PS, ABS, PP, PVC, PMMA, PBT, PC, POM, PA66, PBT+GF30%, etc. |
| Mould Material | Steel 45#, 50#, 60#, P20. 718, 2083, etc. |
| Standard | HASCO,DME,LKM,etc. |
| Color | single-colored, double-colored and multi-colored |
| Size | as per customer's requirement. |
| Weight | 50kgs-150kgs |
| No. of Cavity | Single / Muti |
| Runner | Hot/ Cold |
| Surface Finish | polishing, sand blasting, etc. |
| Processing | milling, lathe,CNC, hot treatment, grinding, wirecutting, discharge, etc. |
| Precision | 0.005mm-0.002mm |
| Mould Life | 500K~1200K Shots |
| Certificated | ISO9001:2008; TS16949 |
| Lead Time | 5-15days |
| Annual Output | 450 sets of mold |
Order
Specification | MOQ | 1 set of mold |
| Trade Terms | FOB,EXW |
| FOB Price | US $ 500 - 10,000 / set |
| delivery time | about 4-6 weeks, according to your order |
| Payment term | T/T, L/C, Western Union |
| Payment condition | 30% deposit in advance, balance 70% before shipment |
| Shipping | By Sea, By Air and By Express Delivery |
| Package | fresco bag, wooden case and pallet, be of rust-proof protection and suitable for shipment |
| Supply Ability | 100 Set/Sets per Month |
| Port of loading | Shanghai/ Suzhou port |
| Offer OEM/OED | Yes |
Customer Services
Full service system:
1.Technology service.
2.Customize service
3.Design service
4.Supporting service
5.Secrecy service
6.Aftermarket service
Business scope:
1.Development &. Technical Service of Precision Moulds, including plastic injection moulds, metal moulds and die casting moulds.
2.Development &. Technical Service of Precision Mould parts, including plastic mould parts, metal mould parts, die casting mould parts and standard parts.
3.Development &. Technical Service of Precision Mould Plastic product parts, including auto plastic parts, medical device parts, household appliance parts, electronic parts, electronic tool parts, etc.
Main partner:
| MAGNA | MAHLE | swoboda | Hengst | Amphenol | Whirlpool |
Quality Control &. Certificates
Strict quality control system: ERP SYSTEM
3D / 2D files→→→Test to raw material→→→Independent inspection→→→Final test→→→Shipment
Design IPQC FQC IQC
Note:
EPR system is applied in management to guide us a more scientific and efficient jobs, from purchasing material to mold assembly, we are trying our best to make every step perfect.
All departments manufactured exactly according to the technology parameter and make independent inspection, according to
, and then, we will have all tools inspected by our quality control department before we transfer to customers.
Quality inspection apparatus:
| Tool Microscope | 0-600
Altimeter | Hardness
Tester | 3 Dimension
Coordinates | Wolfram
Gauge Block | SKH-9
Gauge Brock | Projector | Needle Gauge |
| 3+1 | 3 | 1 | 1 | 5 | 5 | 2 | 5 |
Quality certificates: TS16949; ISO9001:2008
Quality policy: No quality, no Grand tomorrow.
About Grand
Grand Precision Mould Co., Ltd is a modern company which provides a complete service, including the development and technical services of precision mould, mould parts and plastic product parts. It is located in Kunshan city, Jiangsu province with geographical position superiorly and transportation convenience.
Grand upholds the principle of "Quality First, Credit First", taking the mission of creating an excellent team in the precision mold industry.
Registered capital: 5 million RMB
Fixed asset investment: 40 million RMB
Total staff: 140
Industry experience: 10 years
Advanced equipments:
| Speed CNC(F5) | Speed CNC(F3) | Feeding Wire-Cut
(AQ360Ls: minimum ø 0.1mm wire) |
| Makino high | Makino high | Sodick Slow |
Spark Machine
(EDGE3,EDGE2) | Engel Injection Machine | Feeding Wire-Cut
(AG600L: minimum ø 0.1mm wire) |
| Makino | HAITAIN | Sodick Slow |
Order Flow
| 1.Sample/Drawing | We need your detail requires clearly. |
| ↓ |
| 2.Negotiation | Material, cavity, price, delivery time, payment term ,etc. |
| ↓ |
| 3.Place order | According your own design or choose our engineers' design. |
| ↓ |
| 4.Mould design | We will communicate&.exchange the opinion with you during making drawing. |
| ↓ |
| 5.Tooling mould | After customer approving the mould design, mould making start. |
| ↓ |
| 6.Mould process | Provide photos for customer showing tooling process. |
| ↓ |
| 7.Sample confirm | Send you sample for confirm it, if not satisfied, we will modify the mould. |
| ↓ |
| 8.Delivery mould | Delivery mould after customer sample approval and arrange shipment. |
Question &. Answer:
1. Q: What are your primary product lines?
A: According to product form, we mainly manufacture or process moulds, mould parts and mould products. According to industry classification, our products spread over auto, mechanical, electronic, household appliances and machinery fields.
2. Q: Why choice Grand?
A: 1).Strict quality control to meet customer's requirements.
2).Complete cost control system to be cost-effective.
3). Good Pre-sale, In-sale and After-sale Services.
4). Rich experience in mold design and manufacture.
5). Punctual delivery.
3. Q: How to get an efficent quotation?
A: To offer an efficient quotation, we need:
1). 3D model and 2D drawing of parts;
2). Quantity, Material, and other special requirements.
But it's okay if you could only sketch the product, our engineers will do everything to help you.
4. Q: How long does it cost to get an quotation?
A: Usually, we will send the quotation in 24hours after receiving all the necessary details.
Welcome to visit our company.
