| Prod Model: |
GT65 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
50" ,55",65",70",84" |
| Visual Angle: |
178 |
| Contrast: |
1600:1 |
| Interface Type: |
Serial, USB, HDMI,Composite Video |
| System Support: |
Android/Win7/Win8/Linux |
| Touch Points: |
2 Points, 10 Points Touch |
| Screen Size: |
50-60 Inches |
| Aspect Ratio: |
4:3 |
| Application: |
Education and Training System |
| Screen Type: |
Infrared |
| Customized: |
Non-Customized |
| Resistive Touch Screen Type: |
Infrared |
Product Description
2nd Floor, No.8 plant, Xing Wu Road, Wusha, Changan Town,
Dongguan City Guangdong province China
Tel:(86) 0769 38805088 Fax:(86) 0769 38805089
web: www.RioTouch.com
GT series:
1:Infrared Touch
2:Ultra-thin Machine
3:Fashion Design
4:Modular Design

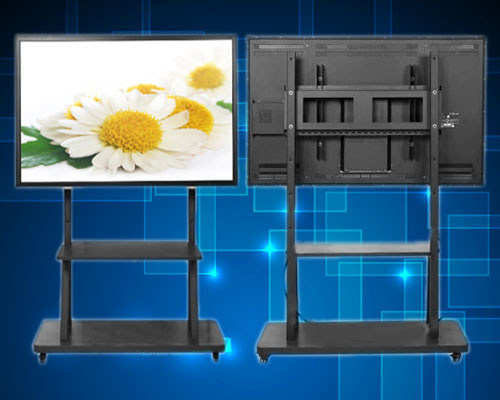

Riotouch 65 LED Touch Screen Monitor Specification
| Model | GT65 |
| Image |
| |
| LED | LED panel size | 65 inch |
| LED brand | CHIMEI (CMO) |
| Packing Parameters | Enternal Size | 1503*882.8*75.7mm (Without base) |
| Touch Size | 1428*807.7mm |
| Net Weight | 50KG |
| Gross Weight | 70KG |
| Package size |
|
| Package size with wooden box |
|
| Power Parameters | Power: | <160W |
| Standard Power | <0.73W |
| Display Parameters | Active Display Area | 1428.48 (H) x 806.1 (V)mm |
| 0.630(h)x0.630(v)mm |
| Display Colors | 1.07 billion colors |
| Contrast | 1600:1 |
| Resolution | 1920x1080pixel |
| Brightness | 300cd/m2 |
| Viewing Angle | 176 degree |
| TV Parameters | TV Standard | NTSC M/N,PAL BG/DK/I/H,SECAM L/L |
| Multimedia Formats | MPEG1,MPEG2,MPEG4,H264,RM,RMVB,MOV, |
| USB2.0 Multimedia Playback | Vido/Audio/Picture |
| USB System Upgrading Online | Support USB online upgrading function |
| Resolution | Max. 1080P format |
| HDMI | V1.3, 720P/1080P |
| HDCP | V1.1 |
| Scanning Format | Support 1080i Video crisscross DAS (Dynamic Adaptive Scan ) |
| Sound Control | Automatic sound standard detection, support for balance adjustment and surround Sound |
| Sound Output | 2X10W |
Input and
output ports | HDMI Input port | 2-line (HDMI1 keep for Inside OPS) |
| VGA Input port | 1 Line |
| PC Audio port | 1 Line |
| Headphone/Audio output | 1 Line |
| AV Input port | 1 Line |
| Y/pb/cb/pr/cr inport | 1 Line |
| RF input ports | 1 Line |
| USB Multimedia Input ports | 1 Line |
Touch
parameters | Touch Technology | Infrared touch technology |
| Touch mode | Single, multipoint,Mouse click |
| Inductive objects | Finger, pen or any other opaque objects |
| Inductive size | Diameter≥5mm |
| Resolution | 32767*32767 |
| Response time | 1) First dot(click):8ms, continuously(writing):3ms
2) multipoint click:firstdot(click):8ms,continuously(writing):8ms
3) Mouse click:first dot(click):8ms,continuously(writing):8ms |
| Cursor speed | UP to 300 dots/s Multipoint,mouse click:125 dot/s |
| Operating life | ≥60,000,000 times to click |
| Power | USB power supply (4.6-5V, DC) |
| Power consumption | ≤1w |
| Operation Systerm | Windows 8, windows 7, XP, Mac, Linux, Android |
| Calibration | HID devices standard, accord with Win7 multi-touch protocol, no need special software to calibrate, just use Table PC setting to finish the calibration. |
| Anti-light decay function | Anti-light decay circuits to prevent the performance degradation caused by long working hours |
| LED Test Software | Supply touch screen LED test software to test the function of each couple of the LED lights and the drawing functions |
| Antilight interference function | can work properly in direct sunlight condition |
| Standard Accessories without PC | Remote Control | TV Remote control |
| Power cable | 1.5m |
| HDMI cable | 1.5m (without PC) |
| VGA Input port | 1.5m (without PC) |
| USB | 5M cable (Without PC) |
| Audio Cable | 1.5m |
| CD | 1 PCS |
| Pen without ink | 2 PCS |
| Warranty Card | 1 Pcs |
| User manul | 1 PCS |
| Wall brackets | Screws, wall mount kits |
Standard Accessories without PC | Remote Control | TV Remote control |
| USB cable | 1.5m USB cable for touch monitor, USB2.0 |
| VGA cable | 1.5m VGA cable |
| Audio cable | 1.5m audio cable |
| CD | 1 pcs |
| Pens without ink | 2 pcs |
| Teaching Pointer | 1 pcs |
| User manul | 1 pcs |
| Wall brackets | Screws, wall mount kits |
| Standard Accessories with PC | Remote Control | TV Remote control |
| CD | 1 pcs |
| Pens without ink | 2 pcs |
| User manul | 1 pcs |
| Teaching pointer | 1 pcs |
| Wall brackets | Screws, wall mount kits |
| Motherboard | Intel Hm77 |
| CPU | Intel i5-3337U |
| RAM | DDR II 4G |
| Hard Disk | 500G |
|
|
|
RioTouch is a professional manufacture of infrared touch screen, infrared frame, interactive whiteboard and touch screen kiosks. Also we have an enthusiastic team to provide you with solutions in many fields like hometheater, education, corporation, training and games. We aim to make everything easy and help you to turn your ideas and designs into reality.
RioTouch future research willmainly concentrate in the visual multi-touch technology development, interactive educational software development, interactive applications softwaredevelopment.
Riotouch is committeed to be:
1. Professional provider of human-computer interactive techniques.
2. China leading Infrared interactive whiteboard technology solution provider.
3. China leading infrared whiteboard SKD supplier.
4. China leading touch screen manufacturer
