| Prod Model: |
UTL-IR32 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
32 |
| Touch Technology: |
Infrared |
| Vandalism: |
Tempered Glass |
| Dust-Proof: |
Yes |
| Water-Proof: |
Yes |
| Using Solution: |
KTV |
Product Description

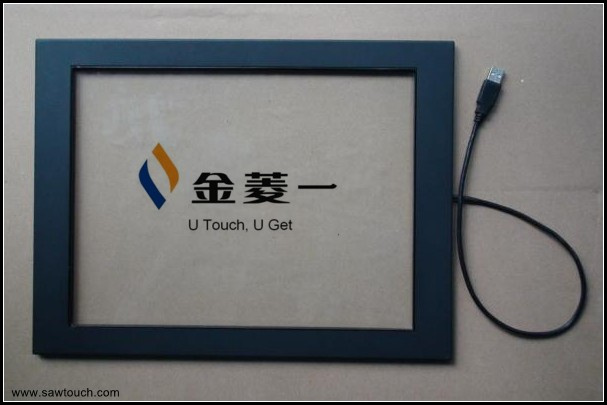

Infrared touch screen is the latest technology and it supports the most reliable touch technology. Our infrared touch screen consists of a touch frame which is installed in front of the display. The frame is intergrated with a printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of the touch frame. The bezel shields the parts from the operation environment while allowing the IR beams to pass through. When touch is applied, the screen enters the gird by a stylus which can interrupt the IR light beams. The Photo transistors from X & Y axes detect the IR light beams which have been interrupted and transmit exact signals that identify the X & Y axes coordinates to the host.
Applications
Kiosks, Medical instrumentation, ATM, Retails, Commercial transportation, Advertising display, Signage display and many other industrial applications
Infrared touch screen benefits
1. High stability
Changes in the time or environment will not cause any drift.
2. High light transmittance
The touch screen has no intermediate touch overlay, enabling light transmittance to reach as high as 100%.
3. Long service life
Extremely durable, scratch resistant
4. Easy activation
Touch pressure is not required; No special material is required for touch activation. An activating stylus can be used whether soft or hard - conductor or nonconductor.
|
Size specification |
|
convention size |
32 " to 52 " |
|
custom-made size |
32 " to 52 " |
|
suitable monitor |
Each kind of plane graphic display device |
|
Function target |
|
resolution (interpolation) |
4096*4096 |
|
Linear error |
1.5mm |
|
speed of response |
< 25ms |
|
MECHANICAL |
|
Input Method |
Finger or gloved hand activation |
|
Touching number of times |
not limited |
|
Touching activation strength |
infrared touching technology, does not need to touch the activation strength |
|
smallest touching object diameter |
8mm |
|
Resists violence |
use armored glass, the diameter is 63.5mm (quality is 1.04kg) the superficial smooth steel ball, 1 meter highly free dropping, the test specimen broken |
|
surface durability |
skin hardness equates the glass, degree of hardness rank is 7 levels |
|
ELECTRICAL |
|
Optical index |
transmittance ≥ 92%, highest may reach 100% (not to have glass) |
|
ENVIRONMENT |
|
Temperature |
Operating -20 to 70 Storage-40 to 80 |
|
Relative Humidity |
Work humidity: 90% RH in 40 without dewing Storage humidity: 90% RH in 40 without dewing |
|
Altitude Operating |
0~3, 000m |
|
Drift |
No drift |
|
Available Size |
10.4" to 103" (custom size for OEM available) |
|
Electrical specification |
|
working voltage |
Typical value +5VDC, permission scope +4.75V ~ +5.25V |
|
power supply |
USB main line or PS/2 connection power supply, power source ripple biggest 200mV rms |
|
Power |
< 2W, Operating current < 400mA |
|
Certificate |
CE, FCC, SGS |
|
Interface |
USB/EIA-232E |
|
Suitable operating system |
Windows 2000\XP\2003\Vista\CE, Linux, Mac OS |
