| Prod Model: |
YWJ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
SUS304 |
| Size: |
100-1000L |
| Heating Way: |
Stean/Gas/Electric |
| Mixer: |
with or Without |
| Type: |
Mixer |
| Voltage: |
220V |
| Customized: |
Customized |
Product Description

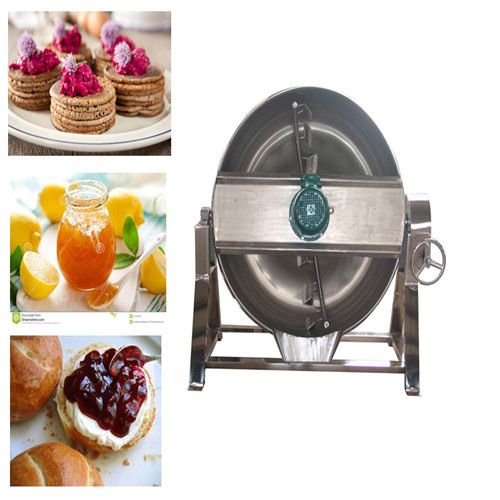

Specifications of Industrial Gas/Electric/Steam Heating Jacketed Kettle
1.short boiling time
2.easy to operate
3.high capacity
4.large heating surface
Product Description
Usage: Industrial Gas/Electric/Steam Heating Jacketed Kettle
1. Be widely applied in food processing such as candy, medicine, dairy, alcohol, cake, sweetmeat, beverage, can, etc.
2. Can be used to boil soup, cook, stew and porridge in some large restaurants and canteens. It is considered to be the ideal equipment in the area of improving quality, shortening the time andimproving working conditions.
Characteristics: Industrial Gas/Electric/Steam Heating Jacketed Kettle
1. Full burning, smokeless,dust-free, little carbon, and no environmental pollution.
2. Flame temperature can be regulated optionally, highest temperature 300 °C or so.
3. Reasonable structure and convenient operation.
4. Energy saving, fierce fire, thermal efficiency is increased by 25% or so compared with
similar products.
5. Fuel: liquefied petroleum gas (LPG), pipe coal gas, natural gas, and oil is strictly prohibited.
6. Gas consumption: about 20% lower than the similar products.
Boiling parameters: Industrial Gas/Electric/Steam Heating Jacketed Kettle
Model |
Heating area (m2) |
Liquid and addition
(kg) |
Steam pressure
(Mpa) |
Time
(min) |
50L |
0.45 |
Tap water 50 |
0.3 |
4-5 |
100L |
0.58 |
Tap water 100 |
0.3 |
5-6 |
150L |
0.88 |
Tap water 150 |
0.3 |
6-7 |
200L |
1.13 |
Tap water 200 |
0.3 |
8-9 |
300L |
1.43 |
Tap water 300 |
0.3 |
10-15 |
400L |
1.75 |
Tap water 400 |
0.3 |
11-18 |
500L |
2.00 |
Tap water 500 |
0.3 |
15-20 |
600L |
2.30 |
Tap water 600 |
0.8 |
15-20 |
1000L |
3.20 |
Tap water1000 |
0.9 |
15-20
|
Models Available
1. tiltable/ stationary
2. electric heating/ steam heating/ fuel gas heating
3. with agitator/ without agitator
4. with lid / without lid
Technical parameters:
Item/ Type |
UwantsKQ-100 |
UwantsKQ-200 |
UwantsKQ-300 |
UwantsKQ-400 |
UwantsKQ-500 |
UwantsKQ-600 |
Capacity(L) |
100L |
200L |
300L |
400L |
500L |
600L |
Diameter(mm) |
700 |
800 |
900 |
1000 |
1100 |
1200 |
Material |
SUS304/Q235B |
Design temperature |
145°C |
Design pressure |
0.35Mpa |
Experiment pressure |
0.44Mpa |
