| Prod Model: |
LR-10T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Flake Ice Capacity: |
1.5t/Day |
| Cooling Style: |
Air Cooling, Water Cooling |
| Usage: |
for Refrigerate |
| Cooling Method: |
Direct Cooling |
| Application: |
Industrial and Commercial |
| Ice Shape: |
Flake Ice |
| Certification: |
SGS |
| Condition: |
New |
Product Description
Features and advantages of Flake ice:1. Large contact area: As its flat and thin shape, it has got the largest contact area among all types of ice. The larger its contact area is, the faster it cools other stuff.2.Low cost of producing The producing of flake ice is very economical, it only requires 1.3RT refrigerating effect to make 1 ton of ice from 16C water.3. Perfect in food cooling Flake ice is type of dry and crispy ice, it hardly forms any shape edges, in food cooling process, this nature has made it the best material for cooling, it can reduce the possibility of damage to food to the lowest rate.
4. Thoroughly mixing
Flake ice can become water quickly through the rapid heat exchanging with products, and also supply the moisture for products to be cooled.5.Fast ice making speed: can produce ice within 3 minutes after starting it,do not neend extra person to take off and get the ice6.Convenient for delivery
Because the flake ice fairly dry, it will not stick with others during delivery or storage.

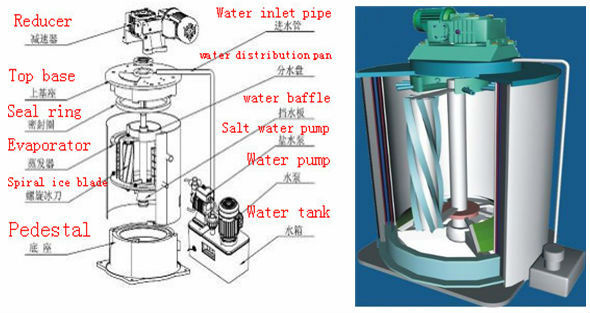

Evaporator advantages:1.Its evaporator with fixed vertical design is made of SUS304 or carbon steel with high heat transfer efficiency and surface Nobelium electroplated.And the automatic protection welding equipment and annealing heat treatment furnace ensure the ice machine high quality and performance better.

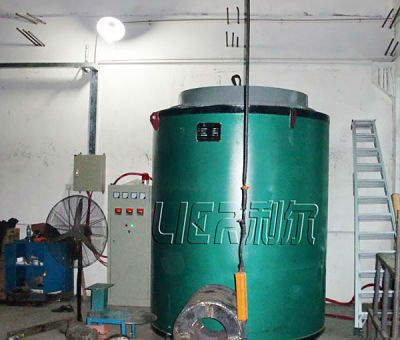

2.Professional evaporator producing plant,various horizontal lathes are all owned in our company. And the 2.5m diameter vertical lathe can process the single ice bucket workpiece up to 50 tons.3.The high-performance annealing heat treatment equipment can eliminate the welding stress with its 850°C high temperature annealing treatment ability,which can guarantee ice bucket good material mechanics performance and prevent the evaporator inner wall from deformation forever.

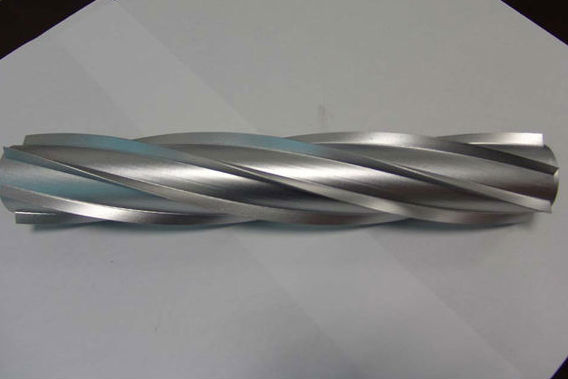

4.Our spiral ice blade researched & developed and produced by ourselves independent is make of high-performance strong stainless steel and formed through only one time process. Its scientific structure, clean hygiene,reasonable spiral angle and accurate cylindricity make it cut ice with less resistance,no noise,vibration and balance.all mechanics performance and prevent the evaporator inner wall from deformation forever.
Configuration of the machine:1. Compressor: Bitzer, Copeland(Famous brand)
2. PLC: LG, Schnaider ( famous brand)
3. Stainless steel evaporator and ice bin, antirust material
4. Water source and cooling water: Both seawater and city water are available
5. Ambience temperature: From -10degrees; C to 50degrees
6. Power: 380V/50Hz/3Phase
7. Intelligent and automatic machine, no skilled worker for machine opearation
8. Easy to installation with the instruction
9. Ice capacity: 10Ton-30Tons/24Hours is available (to order)
10. Place saving, energery saving
Detail specification: OEM is available, or to customer's requirementFor more please contact us!| Model | Daily output
kg/24h | Ref.Capacity
kw | Power supply | Total power
kw | Refrige
rants | Unit Dimension
L*W*H(mm) | Net Weight kg |
| LR-02T | 200 | 1.2 | 1P/220V/60HZ | 1.1 | R404A | 760*730*600 | 105 |
| LR-05T | 500 | 3 | 3P/380V/50HZ | 2.62 | R404A | 1310*890*780 | 195 |
| LR-1T | 1000 | 6 | 3P/380V/50HZ | 4.31 | R404A | 1310*970*880 | 227 |
| LR-1.5T | 1500 | 9 | 3P/380V/50HZ | 8 | R404A | 1310*970*980 | 364 |
| LR-2T | 2000 | 12 | 3P/380V/50HZ | 10 | R404A | 1500*1095*1050 | 425 |
| LR-2.5T | 2500 | 15 | 3P/380V/50HZ | 12 | R404A | 1500*1095*1200 | 468 |
| LR-3T | 3000 | 18 | 3P/380V/50HZ | 15.11 | R404A | 1750*1190*1200 | 530 |
| LR-4T | 4000 | 24 | 3P/380V/50HZ | 18.32 | R404A | 1700*1550*1250 | 646 |
| LR-5T | 5000 | 30 | 3P/380V/50HZ | 23.12 | R404A | 1750*1550*1600 | 765 |
| LR-6T | 6000 | 36 | 3P/380V/50HZ | 26.12 | R404A | 1750*1550*1600 | 825 |
| LR-8T | 8000 | 52 | 3P/380V/50HZ | 31.5 | R404A | 2530*1830*1680 | 978 |
| LR-10T | 10000 | 65 | 3P/380V/50HZ | 45.5 | R404A | 2530*1830*1680 | 1540 |
| LR-15T | 15000 | 97.5 | 3P/380V/50HZ | 64 | R22 | 3100*2090*1865 | 2120 |
| LR-20T | 20000 | 130 | 3P/380V/50HZ | 75.8 | R22 | 3695*2090*2050 | 2860 |
| LR-25T | 25000 | 162.5 | 3P/380V/50HZ | 75 | R22 | 3695*2090*2265 | 2940 |
| LR-30T | 30000 | 210 | 3P/380V/50HZ | 86 | R22 | 3880*21200*2400 | 3240 |
Shenzhen Liermachine Refrigeration Equipment Co., Ltd. is a professional and leading supplier of ice making machines and refrigeration equipment. We focus on the development, production, marketing, installation and repairing services of ice machines.
With advanced technology, modern management, strict quality control, skilled workers and professional services, our ice machines are widely welcomed by customers from at home and abroad.
We produce flake ice machines, tube ice machines, block ice machines, cube ice machines, plate ice machines and some related machine parts. We have different styles of ice making machines for different using fields. Our products are widely applied in aquatic product storage, fruit or vegetable preservation, meat processing, medicine and chemical refrigeration, textile printing and dyeing industry, deep sea fishing, laboratory refrigeration, concrete pouring and cooling, and so on. Lier always provides reasonable and efficient solutions and makes the best ice machines to meet the demands of customers.
"Endless innovation for technology, continuous improvement for service" is our slogan. We will cooperate with all customers, following the "professional, honest and win-win" spirit.
