| Prod Model: |
LT-10000W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
for Refrigerate |
| Certification: |
CE |
| Cooling Method: |
Direct Cooling |
Product Description
Industrial Flake Ice Maker With Ice Storage 10T to 50T
Flake Ice:
1. Flake ice also called scale ice, it's irrigular shaped, thickness 1.5 to 2.3mm, about 40 x 30mm dimensions.
2. It's thin but has no acute edge, it wouldn't hurt the surface of product
3. Large contact area, fast cooling effect
4. Crash easily, can mix with product to direct cool
5. Application: Fishing preservation, Chemical Plant, Mine or factory cooling, concrete mixing cooling.
Flake Ice Machine Introduction:
The Flake ice making machine is a machine that can produce flake ice with its indicated capacity.
The key point of our flake ice making machine is that the generator is stainless steel, especally the interor surface is SS 304 not galvanized plate. It's corrosion-resistent, food-grade, and easy to clean. Other parts are also SS304, including shaft, bearing, water distributor and exterior surface.
Our flake ice making generator is bigger and more heavy-duty than that from other companies, you will see that at the first glance.
The most imporatant part of an ice machine is its compressor, we adopt Bitzer or Copeland compressor. The two compressors are world-famous for their reliable, durable and excellent performance. They have long service life and need low maintenance.
Other parts also have high quality, Danfoss refrigeration parts, electric parts, Mitsubishi PLC, Emerson filer and so on.
In Fact, the experience of manufacturer is very important, We Refriend Ice Systems was found in 2000, we have been specialized in ice machine for 12 years, that give us developed technology, skilled workers and full confidence to supply the right product.
Before Shipping, we will adjust and comission machine to get the best working status. A complete comission report will be submitted.

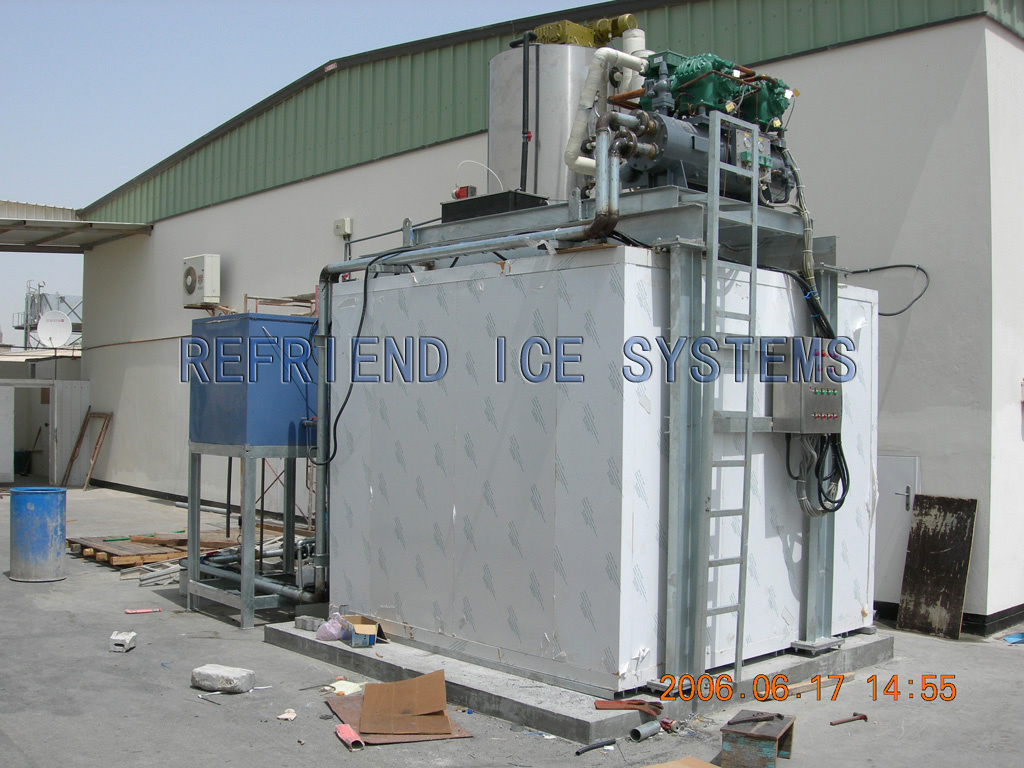

Ice Storage:
The ice storage is actually a cold room upon which the flake ice machine is laid. The produced ice will drop into ice storage directly through a hole on the top of ice storage. There is a switch on the hole. When the storage is full of ice, the switch will shut the machine down.
The ice storage is well insulated with thick PU panels. The thickness of panel is usually 100mm, also can be other thickness in some special condition. The surface of panels is galvanized sheet conventionally. But we also can supply Stainless Steel surface cold room.
There is a galvanized frame to support ice machine, not the ice storage.
|
Model |
LT-5000W
(LT-5000A) |
LT-8000W |
LT-10000W |
LT-12000W |
LT-15000W |
LT-20000W |
LT-25000W |
Daily output
( MT/24hr) |
5 |
8 |
10 |
12 |
15 |
20 |
25 |
|
Ambient Temp. |
+32° C |
|
Water Temp. |
+20° C |
|
Cooling capacity (KW) |
32 |
52 |
65 |
78 |
98 |
130 |
165 |
|
Compressor brand |
Bitzer |
Bitzer / Hanebll |
|
Refrigerant |
R404A / R22 |
|
Running power(KWH) |
20 |
30 |
38 |
48 |
62 |
75 |
98 |
|
Install power(KW) |
30 |
40 |
45 |
55 |
70 |
90 |
120 |
|
Power |
380V/3P/50Hz |
|
Cooling Type |
" A" _ air cooling; " W" _ water cooling |
Dimension
(mm) |
Length |
1900
(2500) |
2600 |
2600 |
2600 |
3000 |
3200 |
3200 |
|
Width |
1400
(1600) |
1600 |
1600 |
1600 |
2000 |
2000 |
2000 |
|
Height |
1450
(1550) |
1550 |
1750 |
1950 |
1950 |
2200 |
2550 |
|
Weight(kg) |
1150
(1350) |
1650 |
2100 |
2350 |
2800 |
3400 |
3800 |
a) Cooling capacity is based on evaporating temperature at -15° C, condensing temperature at +38° C;
b) The machine also can be used by seawater, it' s need to mark on the order. |
|
Note: Model and specifications can be subject to change without notice. |
We are specialist in manufacturing and supplying Flake Ice Machines, shell ice machine, fluidic ice machine, tube ice machine and block ice machine, horizontal and vertical contact plate freezer, IQF, freezing room and cold room, etc.
The range of ice making capacity of our ice machine is from 800kg/day to 100tons/day, also we can supply sea water ice machine which can be installed on the fishing boats directly.
