| Prod Model: |
H17238B1L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
110V/120V/220V/240V/380V |
| Air Volume: |
150/190cfm |
| Bearing: |
Sleeve/Ball |
| Noise DB(a): |
40/45 |
| Current: |
16AMP |
| Speed Number: |
3200rpm |
| Frequentcy: |
50Hz |
| Warranty: |
2 Years |
| Power Supply: |
Electric |
| Application: |
Industrial |
| Remote Control: |
Without Remote Control |
| Timer: |
With Timer |
| Certification: |
ISO9001:2008 |
| Speed: |
1 Speed |
| Power: |
<100W |
| Material: |
Plastic |
| Installation: |
Box |
| Type: |
Axial Flow Fan |
Product Description

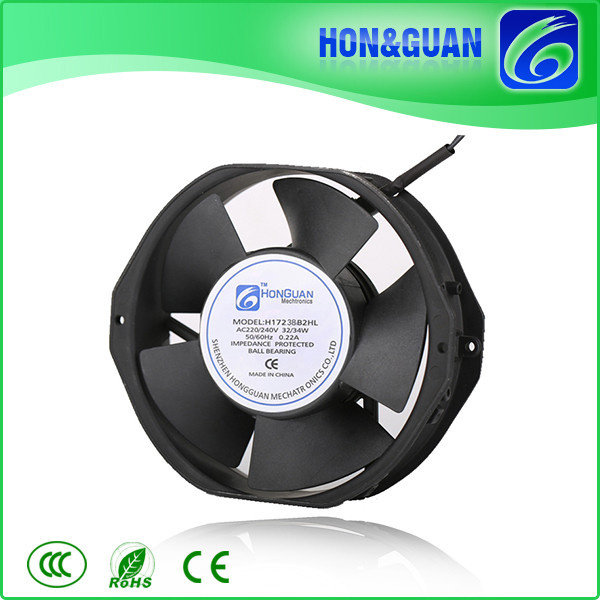

172*150*38 Fish tank AC fan
1 Ball or sleeve bearing
2 Two ways of connection: Terminals and lead wire
3 Enamelled wire: Copper
|
Specification: AC Axial Fan 172mm*150mm*38mm |
|
Model |
Bearing |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Static Pressure |
Noise |
|
V |
Hz |
A |
W |
RPM |
m3/min |
CFM |
mmH2O |
dB(A) |
|
H17238B1H |
ball |
110 |
60/50 |
0.38/0.36 |
28/28 |
2550/2700 |
5.37/6.65 |
150/190 |
16.0/17.78 |
45/50 |
|
H17238S1H |
sleeve |
|
H17238B2H |
ball |
220 |
50/60 |
0.18/0.2 |
26/28 |
2450/2700 |
4.80/6.65 |
148/190 |
15.6/17.78 |
42/50 |
|
H17238S2H |
sleeve |
Located in Guanlan, Longhua new district, Shenzhen, ShenZhen HongGuan Mechatronics Company Limited, with an 8000-square-meter building area, is engaging in a whole series of research and development, manufacturing, sales and service of AC fan and DC brushless fan.
As our quality and technical performance indexes hace reached the adcance world level, with the advantages such as beautiful shape, compact structure, fine processing, high air pressrue, big air volume, light weight and thin in depth, low noise, long life, environmental adaptability, low price, reliability.
Share with benefits, cooperate with honesty. Your satisfaction is our goal.
