| Prod Model: |
SHM-50'' |
| Markets: |
Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Power Supply: |
Electric |
| Power: |
750W 1100W |
Product Description

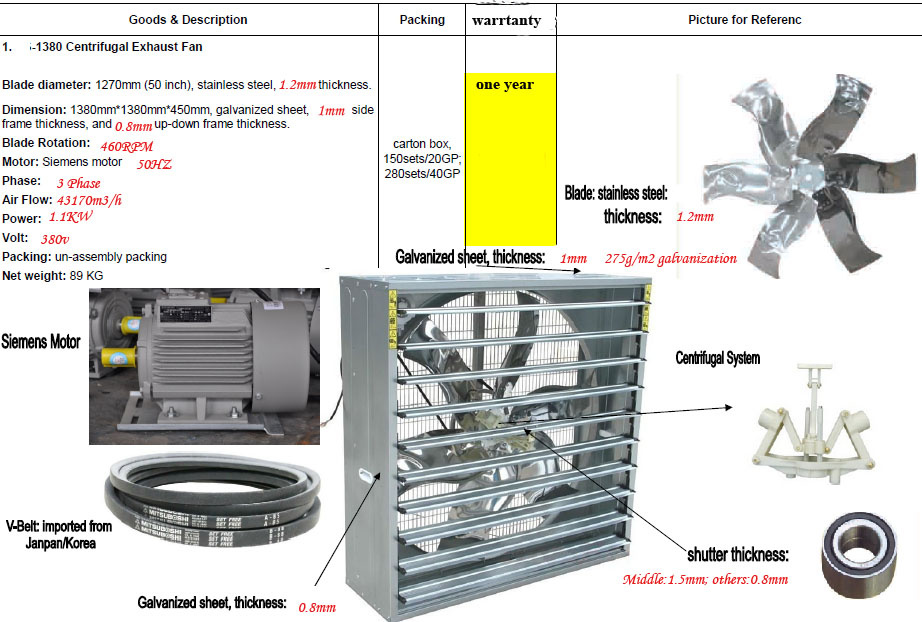

Industrial Exhaust Fan:
Fan size: 1380mm× 1380mm× 450mm, Industrial Environmental Exhaust Fan
Frame: Hot galvanized sheet, high anti-corrosive durability, sheet thickness1.0mm,
Zinkthickness 275G/M
2Motor: Simens motor, Other motor accordingly, CE certificate
Motor technical data: 1.1 Kw 380 V 50 Hz three phase
Motor RPM: 1440r/min
Noise: Less than 65dB
Blade diameter: Φ 1270 mm
Blade No.: 6
Blade material: Mirror face stainless steel, avoid dust accumulation
Blade RPM: 460r/min
Blade instruction:
Weight difference between blades is less than 0.5k, blades will go through
Balance test after assembled which can assure steady running and even
Airflow.
Shutter:
Centrifugal system opening, spring close system, shutter can be opened at
90 degree.
Shutter No.: 10
Thickness of shutter: 1.5 mm, others 0.8 mm
Belt: Mistuboshi belt
Housing: Galvanized
Airflow: 43170m3/h
| Mode | Diameter blade | Frequency | Air volume | Power | voltage | size/mm |
| SHM-18 | 500mm | 50HZ | 8000m3 | 0.37kw | 380 or220v | 600x600x390 |
| SHM-24 | 710mm | 50HZ | 13000m3 | 0.37kw | 380 or220v | 800x800x400 |
| SHM-36 | 910mm | 50HZ | 20800m3 | 0.4 or0.75kw | 380v | 1000x1000x450 |
| SHM-50 | 1270mm | 50HZ | 43170m3 | 1.1kw | 380v | 1380x1380x450 |
Qingdao Super Husbandry Machinery Co., Ltd is a famous enterprise engages in the study, designing and manufacturing of the husbandry ventilation equipments as well as the livestock and poultry ventilation. It is a hi-tech enterprise that enjoys the fast development speed, accompanied by the most effective technologies and top-ranking sales quantum.
Meanwhile, it has the ability of development, engineer designing, installing and servicing at the same time.
We have been supplying our products in China and overseas markets like the Asia, Middle East, Arab Countries, South America, etc. The excellent performance and services get a good reputation from the clients, we keep hard working to provide the better and better products and service for more and more customers
