| Prod Model: |
GMF forging furnace |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Molding Style: |
Forging |
| Processing Object: |
Metal |
Product Description
Technical parameters:
(1) Model: GMF-35--GMF110
(2) Output frequency: 1— 20KHZ
(3) Output voltage: 70~520V
(4) Input: 380V, 415V, 480V three phases 50 or 60HZ
(5) Duty cycle: 100%
Applications:

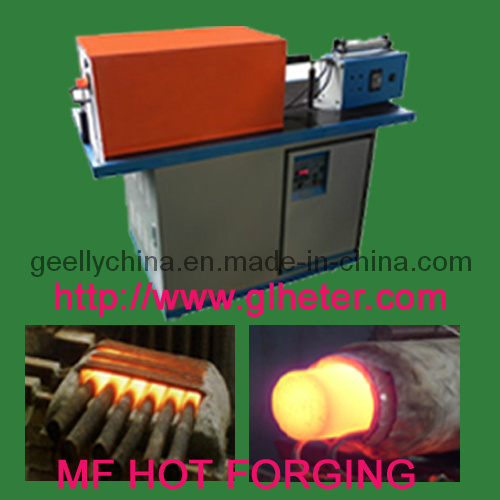

1)M. F. Hot forging furnace is used for the heating of bars and rods larger than Φ 12, the material can be steel, stainless steel, copper, brass, Aluminum and so on.
2)The heating can be the whole rod, end of the rod or middle part of the rod.
3)Hot forging example: Fastening, screw, nut and so on
Structure characteristics:
The furnace includes medium frequency generator, compensating cap, working table, induction coil, coil cover, rod feeder and so on.
For some special applications, the infrared sensor, temperature controller and automatic rod feeding systems can also be included.
Main features of the M. F. Hot forging furnace:
1) Wide frequency range from 2KHZ to 20KHZ, frequency can be designed to satisfy different size of the heated rods.
2) The heating coil can be 500mm to 1 meter long, several pieces are heated at the same time to make sure the penetrating effect.
3) In the continuous heating process, the load inside the coil is stable, thus to overcome high heating power change caused by large change of the load during the heating course from room temperature to 1100 degree. The actual power can reach more than 85% of the rated power of the machine.
4) Even when heating non-ferrous metals like copper or aluminum, the actual power can also reach more than 85% of the rated power of the machine by design the coil properly and match the compensating cap correctly. 3.5KG copper or brass can be heated to 700 degree per kilowatt in an hour.
| models | Max. Input Power | Heating ability of normal material |
| Steel or S.S to 1100degree | Copper or brass to 700degree |
| GMF-25 forging furnace | 25KW | 0.83 KG/min | 1.17 KG/min |
| GMF-35 forging furnace | 35KW | 1.25 KG/min | 1.75 KG/min |
| GMF-45 forging furnace | 45KW | 1.67 KG/min | 2.33 KG/min |
| GMF-70 forging furnace | 70KW | 2.5 KG/min | 3.5 KG/min |
| GMF-90 forging furnace | 90KW | 3.33 KG/min | 4.67 KG/min |
| GMF-110 forging furnace | 110KW | 4.17 KG/min | 5.83 KG/min |
| GMF-160 forging furnace | 160KW | 5.83 KG/min |
|
Shenzhen Geelly Technology Co., Limited is specialized in manufacturing High and Medium Frequency Induction Heating heaters and related equipment.
We own gifted engineers for developing and improving of induction heating generators. We have research lab and production base, We manufacture wide range of product lines which include induction heaters in range of power from 3KW to 240KW and output frequency range from 2kHz to 1.1MHz. We also manufacture and design Gold melting furnace, Platinum melting furnace, and the coils of induction heaters. Industrial refrigerating machines. We also offer spare parts of induction heater and some auxiliary parts, such as Silver-Gold Filler Metals, foot switches, High temperature resistant insulating tape and so on.
Our induction heater have been used by more and more customers home and abroad due to the good quality and reasonable cost. Our products offer a perfect solution in the fields of metal heating soldering and brazing, forging, shaping, heat treatment and melting.
We offer technical consultation to inquires with instant feedback and recommend suitable machine models for varied applications.
