| Prod Model: |
MKP-3.3uF-275V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rate Voltage: |
275V.AC |
| Type: |
Polypropylene Capacitor |
| Application: |
Induction Cooker |
| Package Type: |
Through Hole |
| Capacitance: |
1-50uf |
Product Description

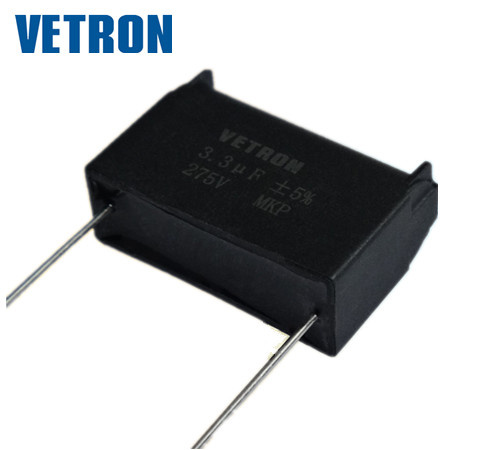

Induction Cooker Filter Capacitors
Features
(1) Adopt double side metallized polyester film construction; Widely used in high frequency circuit, withstand heavy current shock.
(2) Used metallized film material, with self-healing property, it has long life time (>=100,000h); small inherent temperature rise.
(3) Non-inductive structure, Low ESR and ESL.
(4) Aluminum case fill with UL94V-0 resin.
(5) Tinned copper nut or plate.
(6) High dV/dt, RoHS compliance.
(7) Film capacitor performance is stable and reliable.
Applications
1) Used for various power industry inductance heating
machine, such as high frequency heavy current drive.
2) Inverters for Welders, UPS, EPS, Induction cooker.
C2 filter capacitor for induction cooker
Technical Specification
| Temperature Range | -40°C~+85°C |
| Capacity Range | 0.044~1.5μF or 2x0.5-2x1μF |
| Capacitance tolerance | ±5%(J),±10%(K) |
| Voltage | 2000/3000/3600VDC |
| Over Voltage | 1.75Un/10S |
| Dissipation factor | tgδ≤0.0006(at 10KHz 25°C) |
| Insulation resistance | C*Rs≥30000S(at25°C 100V.DC) |
| Flame-retardant | UL94V-0 |
| Stray inductance | ≤50nH |
| Ipeak Current | 158~2525A |
| Failure rate | <30 FIT |
| Reference Standard | Enterprise standards in line with IEC61071, IEC60068, IEC60384 |
| Case components | Aluminum can or plastic case |
| Terminals form | Tinned copper nut or plate |
| Installation type | bottom mounting hole |
VETRON Electronic Industrial Co., Ltd. Is a manufacturer of film capacitors for the power electronics market, short delivery time, and competitive prices, innovative product technologies with engineering expertise to provide reliable solutions for renewable energy, power supplies, inverter, welding, induction heating and UPS systems; As well as solar power and wind power and DC link capacitors for electric vehicles.
Capacitor including:
1. DC-link film capacitors: SAL, SBL, SDL, SEL, SFL Series
2. IGBT snubber film capacitors: SCF/R, SCR, SCP, SCN Series
3. Welding machine film capacitors: SWF, SKP, STP, STR, Series
4. Induction heating machine capacitors: SKR, SJR, SIL Series
5. GTO snubber capacitors: SIR, SVR Series
6. AC power supply capacitors: SAF, SBF, SCW Series
7. DC-blocking & coupling capacitors: SCL Series
We are proud of the excellent quality products and the best service. And we also have distributor to serve customers in time. Welcome to visit our company.
