| Prod Model: |
G10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Panel Size: |
300X600X49mm |
| Display Type: |
Segment LED Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/8 Scan |
| Application: |
Shopping Guide |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
10mm |
| IP Rating: |
IP43 |
| Certification: |
CE |
| System Operating Platform: |
WIN XP |
Product Description

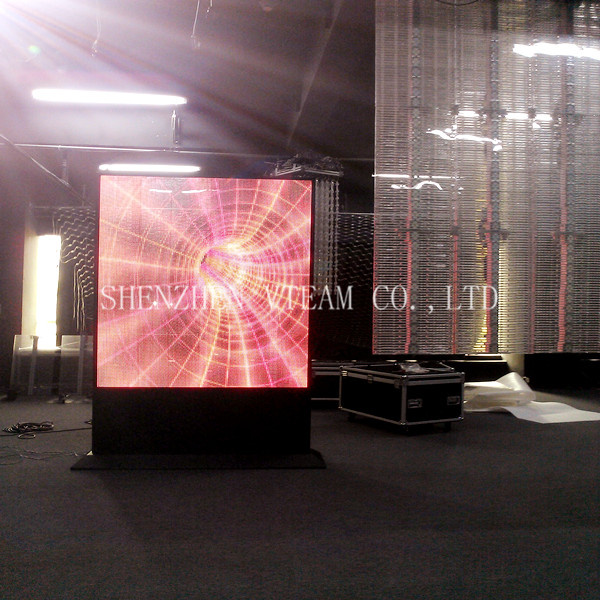

G10/12 Overview
G10/12 is a kind of creative led screen with extremely
High transparency, achieving a brilliant visual effect.
G10/12 screen can be directly pasted on glass walls
Against the building for advertising and decoration, as
Well as been hung up for rental application as display
Screen. 1000x500mm for each panel size, only 9.5 kg
On weight for single panel, max thickness is limited in
54 mm, all those unique advantages make G10/12 a
Perfect choice for creative designing company to use
On large-scale applications.
High transparency: 50% on transparency makes
The led bulbs almost invisible above a specific
Distance on screen.
Flexible installation methods for various projects.
Light-weighted for single person tools free
Installation, perfectly applied for mobile shows
And rental applications.
Simple installation: G10/12 screen are directly
Pasted on glass wall by special glue with 10
Minutes for solidify. So there is no need for any
Changing on building structure, very suitable for
Glass building advertising and decoration.
High light transmittance: Lights on the stage can
Easily get through screens.
User-friendly interface on control system.
| Item Name |
| GL12 |
| GL20 |
| Pixel Pitch |
| 12.5mm |
| 20mm |
| LED Type |
| RGB 3in1 SMD3535 |
| RGB 3in1 SMD3535 |
| Pixel Density/sqm |
| 6400 |
| 2500 |
| Pixel Matrix |
| 48x24dot |
| 32x16dot |
| Panel Size |
| 300x600x49mm |
| 320x640x49mm |
| Weight |
| 5kg |
| 5kg |
| Protection Level |
| IP20 or IP54 |
| IP20 or IP54 |
| Brightness |
| 4500 nit |
| 4500 nit |
| Best Viewing Distance |
| 12m |
| 20m |
| Transparency |
| ≥70% |
| ≥70% |
| Viewing Angle |
| H140° V140° |
| Gray Rate |
| 14bit |
| Colors |
| 68 Billion |
| Max Power Consumption |
| 125 W/panel |
| 125 W/panel |
| Refresh Rate |
| ≥1200Hz |
| Gamma |
| -5.0~+5.0 |
| Application |
| Indoor |
| Both for indoor and outdoor |
| Controlling System |
| Synchronous display with control PC by DVI |
| Signal Input |
| Composite ,S-Vide ,Component ,VGA,DVI,HDMI,HD_SDI |
| Input voltage |
| DC 36~75V,FSP.Technology Inc. |
| Working Environment |
| Temperature-10ºC~+50ºC,humidity 10~90% RH |
