| Prod Model: |
Indoor P5mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
8.64mx4.8m |
| Usage: |
Indoor |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video |
| Certification: |
CE, RoHS, FCC, C-Tick, ISO |
Product Description

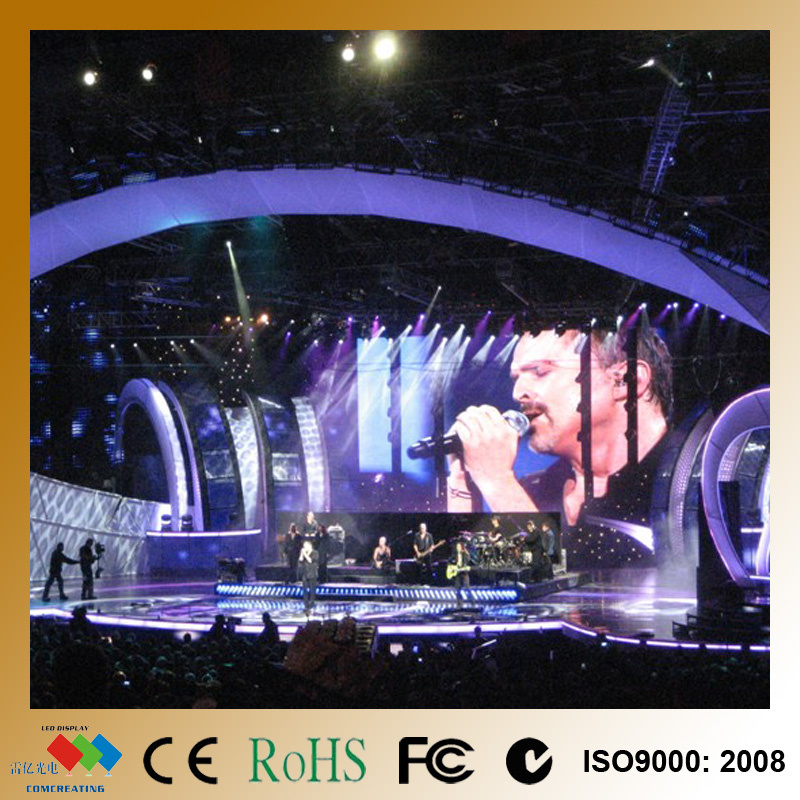

Indoor Stage LED Display
1. CE, FCC, RoHS, C-tick, ISO9001: 2008;
2. Brightness: 2000CD/sqm;
3. High Refresh rate: 300Hz-3000Hz;
4. Engineering Drawings are provided for free
5. 1% Spare parts are included;
6. Warranty: All parts two-year warranty and life time free repaire.
7. On-line engineer service and traning in our factory is free;
Product Features:
Rich colors: With three basic colors (red, green and blue) to form the unit board, 256-level gradation of red, green and blue to form 16777216 kinds of colors, making the electronic displays showing rich colors, high saturation, and high resolution, and also enabling them to show high frequency dynamic images.
High brightness: The products adopt super-high brightness LEDs, so that you can see clearly from a long distance even if under the strong sunshine.
Good effect: The products adopt non-linear calibration technology to realize clearer images with stronger feeling of layers.
High reliability: The products adopt the distributed scanning technology and the module design technology to offer higher reliability and stability.
Diversified display modes: The products support multiple display modes.
Easy operation: The products adopt popular video playing software to facilitate system operations.
Available range: Large scale sports stadiums, waiting room of railway station, live TV programs, exhibition facilities, artistic centers, entertainment locations, large scale artistic ceremonies, live concerts etc...
|
Specification for P5 SMD indoor led panel |
P5mm |
|
LED Display |
Assembly Mode |
SMD |
|
Pixel Pitch |
5mm |
|
Pixel Density |
40000pixels/m 2 |
|
Pixel Configuration |
1R1PG1B |
|
Module Size |
160mm*160mm |
|
Module Resolution |
32*32 |
|
Main Parameters |
Viewing Distance |
≥ 3m |
|
Brightness |
≥ 2000cd/m 2 |
|
Power Consumption (max. ) |
≤ 1300W/m 2 |
|
Control Mode |
Synchronization |
|
Drive Mode |
1/16 scanning |
Shenzhen Comcreating Co., Ltd is a professional enterprise engaged in the LED display system research, productionn, sale and service. Our main products include outdoor / indoor LED Display. More than 200 employees work in our company. 50 sets of advanced equipments including lastest automatic optic-electronic test system are furnished in product line. The output is more than 1000 sq. M/month.
Due to our highly skilled R&D staff and the newest technology, all of our products enjoying world-wide reputation for their precise quality, competitive price and the best service guarantee. OEMs/ODMs are welcomed.
Comcreating has provided more than 3000 LED display for over 86 countries and districts. We have builded a mutually beneficail relationship with our customers. In the coming days, we will be more strictly urge our team to offer you LED display with excellent quality, competitive price and better service. Wish we can work together with you to create a win-win relationship!
